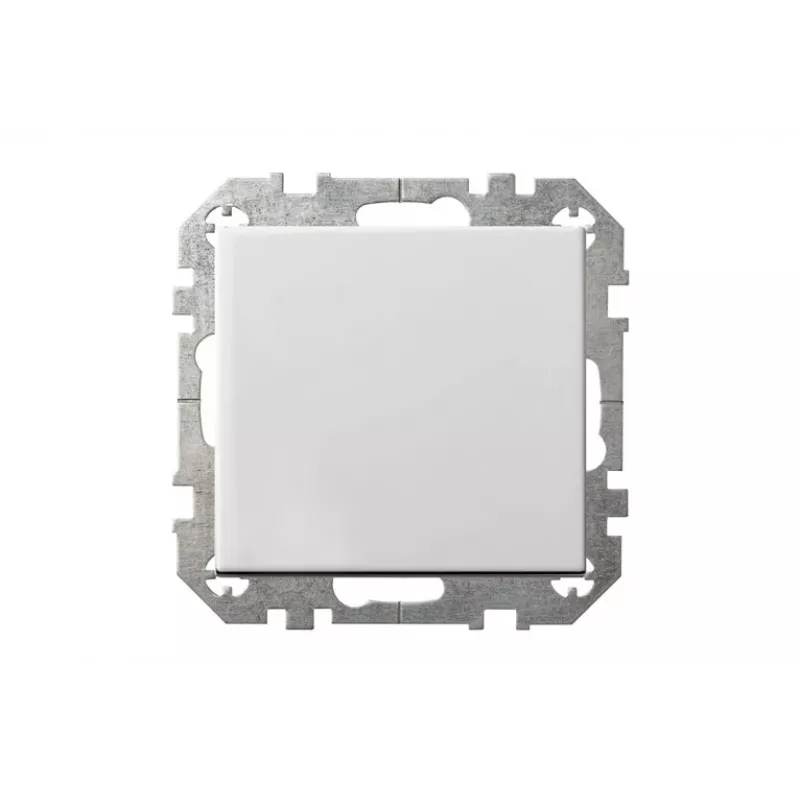

ISR-007-01 E/B Módulo universal de botão-dimmer, 230V, 200W LED, encastrar

Handle up to 200 W of dimmable LED load with automatic load detection — this flush-mounted push-button dimmer insert adjusts to resistive, inductive, or capacitive lighting without manual configuration. The trailing-edge dimming principle is optimized for LED lamps, ensuring smooth, flicker-free performance down to a minimum load of just 4 W.

Overview

The ISR-007-01 E/B is a universal dimmer insert designed for integration into standard flush-mounted boxes. It operates with a 230 V AC supply at 50/60 Hz and connects via screw terminals accepting conductors up to 2.5 mm². The unit supports incandescent and high-voltage halogen loads up to 400 W, electronic transformer-driven low-voltage halogen up to 400 W, and dimmable LED loads up to 200 W. Its automatic load detection eliminates the need for manual setting, while the trailing-edge control is particularly gentle on LED drivers.

What stands out

• Automatic load detection: works with R, L, and C loads without configuration.
• Trailing-edge dimming optimized for LED lamps — no flicker, stable low-end.
• Wide compatibility: 400 W for incandescent/halogen, 200 W for LED.
• Soft start and memory function: recalls last brightness level after power-off.
• Adjustable minimum brightness to match your LED's characteristics.
• Compatible with Jung AS, A, CD, and LS series covers and rockers.
• Robust protection: overload, short-circuit, and over-temperature shutdown.

Technical details

• Rated voltage: 230 V AC, 50/60 Hz
• Max. load incandescent/HV halogen: 400 W
• Max. load LV halogen (electronic transformer): 400 W
• Max. load dimmable LED: 200 W
• Min. load dimmable LED: 4 W
• Connection: screw terminals, max. 2.5 mm²
• Protection class: IP20
• Operating temperature: 0 °C to +45 °C
• Mounting: flush-mounted (Unterputz)
• Control: push-button (Taster)

Our verdict

A future-proof dimming solution for modern LED lighting, combining universal compatibility with advanced features like soft start and memory. Its robust protection and adjustable minimum brightness make it a reliable choice for both residential and commercial installations.
