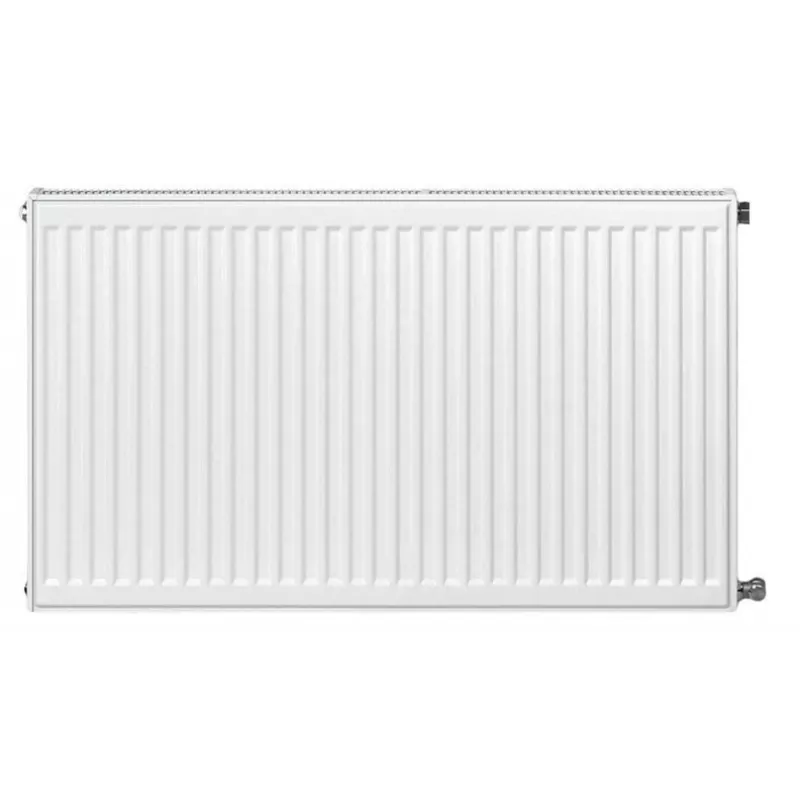

Radiador Klasik 11 500x1000 mm, radiador plano branco

Cold rooms and inefficient heating are common challenges in many homes. The Radiator Klasik 11 500x1000 mm solves this by delivering reliable, even warmth through a proven panel radiator design. Its Type 11 configuration combines a single heating panel with one set of convector fins, ensuring a balanced mix of radiant and convected heat for comfortable living spaces.

Who is it for

This radiator is ideal for homeowners, installers, and renovators seeking a dependable heating solution for central heating systems. It fits perfectly in bedrooms, living rooms, hallways, or offices where consistent warmth is needed without taking up excessive wall space.

Main features

• Type 11 panel radiator: 1 heating panel + 1 convector fin for efficient heat distribution
• Durable cold-rolled steel construction with smooth white powder coating (RAL 9016)
• Side connection with 4 x G 1/2" internal threads for flexible piping
• High heat output: 1120 W at 75/65/20°C
• Compact dimensions: 500 mm height x 1000 mm width
• Includes wall brackets, air vent plug, and blanking plug for easy installation
• Complies with EN 442 standard for radiators
• 10-year manufacturer's warranty

Specifications

• Radiator type: Panel radiator, Type 11
• Material: Cold-rolled steel sheet
• Color: White (RAL 9016)
• Mounting: Wall-mounted
• Connection: Side, 4 x G 1/2" internal thread
• Max operating pressure: 10 bar (1.0 MPa)
• Test pressure: 13 bar (1.3 MPa)
• Max operating temperature: 110 °C
• Heat output (75/65/20°C): 1120 W
• Water volume: 3.2 liters
• Surface treatment: Degreased, phosphated, cataphoretic primer, powder coated
• Included accessories: Wall brackets, air vent plug, blanking plug
• Standard compliance: EN 442
• Application: Central heating systems
• Finish: Smooth, durable powder coating
• Warranty: 10 years

Tips

For optimal performance, install the radiator under a window or on an external wall to counteract cold drafts. Bleed the radiator after filling the system to remove trapped air. Use a thermostatic radiator valve (not included) to control room temperature efficiently.
