NVR IP BCS 32 canais, 8 baías SATA, 4K, H.265+, RAID, BCS-P-NVR3208R-A-4K-III

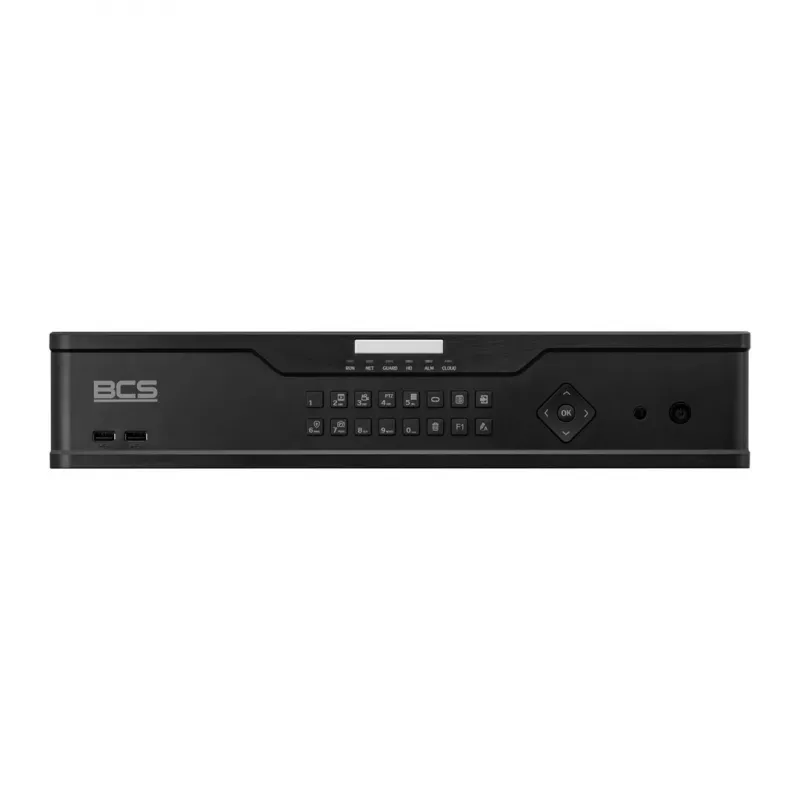

The BCS-P-NVR3208R-A-4K-III is a high-performance 32-channel IP network video recorder designed for professional surveillance systems. It supports up to 12MP resolution recording, H.265+ compression, and offers 8 SATA III bays for massive storage capacity. With RAID 0/1/5/6/10 support, dual Gigabit Ethernet ports, and 4K HDMI output, this NVR is ideal for medium to large-scale security installations.

Advantages

This NVR provides exceptional recording and playback capabilities with support for up to 32 IP cameras. The H.265+ compression reduces bandwidth and storage requirements without compromising video quality. RAID support ensures data redundancy and protection. The device features a robust metal chassis, efficient cooling, and easy front-panel access to HDDs.

Suitable for

• Large retail stores and shopping centers
• Office buildings and corporate campuses
• Warehouses and logistics centers
• Educational institutions and hospitals
• Government and municipal surveillance

Key specifications

• Video Input: 32 IP channels
• Max Recording Resolution: 12MP
• Video Compression: H.265+/H.265/H.264+/H.264
• Incoming Bandwidth: 320 Mbps
• Outgoing Bandwidth: 256 Mbps
• Video Outputs: 2x HDMI (up to 4K), 1x VGA (up to 1080p)
• Audio: 1x RCA In / 1x RCA Out
• Alarm: 16 In / 4 Out
• HDD Bays: 8x SATA III, up to 10 TB per bay
• RAID: 0/1/5/6/10
• Network: 2x RJ-45 10/100/1000 Mbps
• USB: 2x USB 2.0 (rear), 1x USB 3.0 (front)
• Decoding: 2-ch@12MP, 4-ch@8MP, 8-ch@4MP, 16-ch@1080P (30fps)
• Power: AC 100-240V, 50/60 Hz, <20W (without HDD)
• Operating Temperature: -10°C to +55°C

Recommendations

For optimal performance, use with BCS PoE switches and BCS IP cameras. Ensure adequate ventilation and use enterprise-grade HDDs rated for 24/7 surveillance. RAID 5 or 6 is recommended for data protection.
