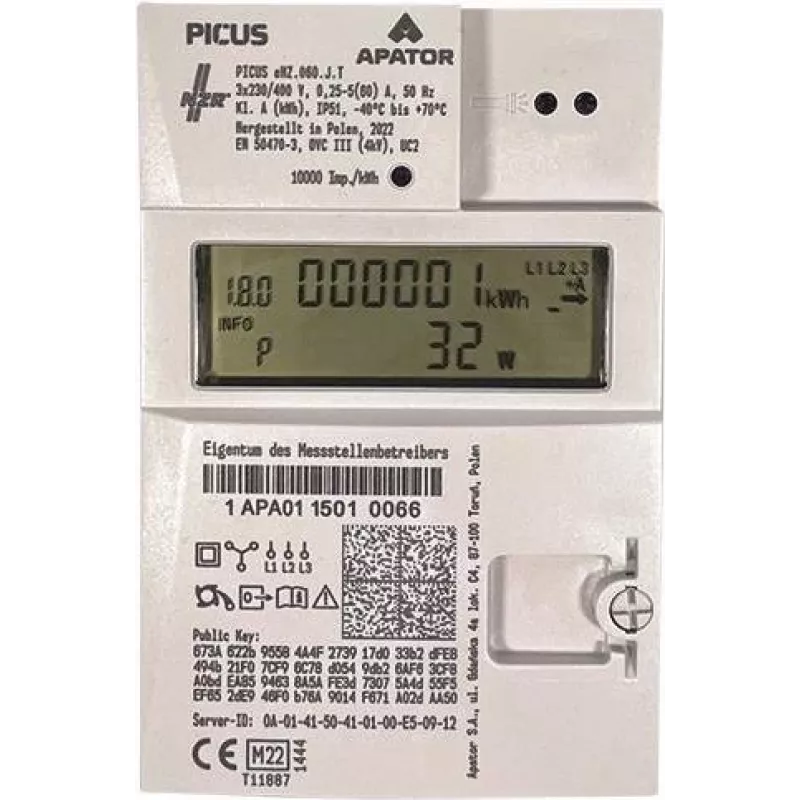

NZR Contador de corrente trifásica 3 x 230/400V 5(60)A certificado MID 23030627

For electricians and facility managers installing submetering in commercial or residential buildings, the NZR 23030627 three-phase energy meter provides direct measurement of active energy up to 60 A per phase. It mounts on a DIN rail and features a mechanical roller counter for reliable, always-visible readings without power.

Key specifications

• Nominal voltage: 3 x 230/400 V AC
• Nominal current: 5(60) A
• Frequency: 50 Hz
• Accuracy class: B (active energy)
• MID certified (Module B+D)
• Display: mechanical roller counter, 6+1 digits
• Tariff: single tariff
• Pulse output: S0 interface, 1000 Imp/kWh
• Mounting: DIN rail (3-point)
• Protection class: IP51
• Operating temperature: -25°C to +55°C
• Housing material: polycarbonate
• Connection: screw terminals
• Starting current: 20 mA
• Power consumption: < 2 W / 10 VA per phase

Why choose it

The meter is MID certified for billing applications, ensuring legal compliance in many European countries. Its mechanical counter retains readings during power outages, and the S0 pulse output allows integration with energy management systems.

Ideal use cases

• Submetering in apartment buildings or commercial spaces
• Monitoring individual machine consumption in industrial settings
• Integration with building automation via pulse output

Good to know

The meter is designed for direct connection without current transformers. It is intended for indoor use in dry environments and should be installed by a qualified electrician.
