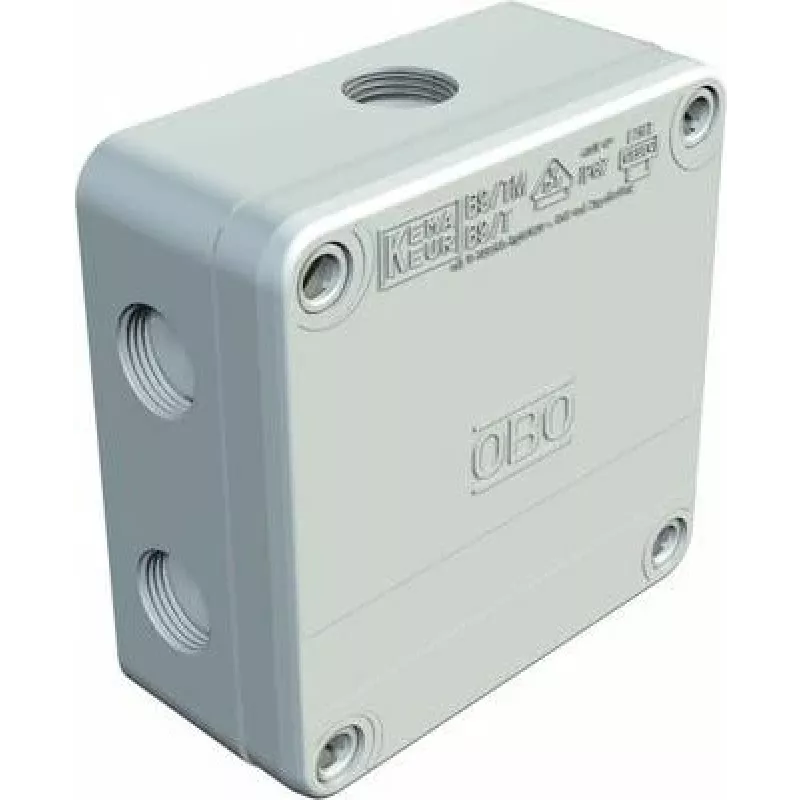

OBO Bettermann 2001861 caixa de derivação de cabos Abox-i 50 x 110 x 110 mm cinzento IP67

For installations where moisture, dust, and mechanical stress are daily realities, the OBO Bettermann 2001861 Abox-i junction box delivers uncompromising protection. Unlike generic enclosures that rely on cable glands and compromise the IP rating at every entry, this box uses elastic membrane entries that seal tightly around cables without additional fittings. The result is a genuinely waterproof IP67 housing that keeps connections safe even under temporary submersion.

Highlights

• IP67 protection: dust-tight and protected against temporary immersion
• 8 elastic membrane entries for quick, tool-free cable insertion
• Integrated 5-pole screw terminal for conductors up to 2.5 mm²
• Halogen-free, flame-retardant polypropylene (glow wire 850 °C)
• UV-resistant and impact-resistant (IK08) for harsh environments
• Quick-release lid fasteners for fast access during maintenance

In daily use

Mounting the Abox-i is straightforward thanks to internal fixing points that allow wall or ceiling installation without external lugs. The grey RAL 7035 housing blends into industrial and commercial settings, while the TPE seal remains flexible across a wide temperature range from -35 to +80 °C. Electricians will appreciate the generous 50 mm depth, which provides ample space for wiring even when using the maximum conductor cross-section.

Full specifications

• Brand: OBO Bettermann
• Model: 2001861
• MPN: 2001861
• EAN: 4012195539896
• Product type: Cable junction box
• Series: Abox-i
• Material: Polypropylene (PP)
• Seal material: Thermoplastic elastomer (TPE)
• Colour: Grey (RAL 7035)
• Dimensions (L x W x H): 110 x 110 x 50 mm
• Ingress protection: IP67
• Number of cable entries: 8
• Cable entry type: Elastic membrane
• Max cable gland size: M20
• Terminal type: 5-pole screw terminal
• Max conductor cross-section: 2.5 mm²
• Rated insulation voltage: 690 V
• Rated current: 24 A
• Halogen-free: Yes
• Flame retardant: Yes (850 °C glow wire)
• UV resistant: Yes
• Impact resistance: IK08
• Mounting type: Wall/ceiling, internal fixing points
• Operating temperature: -35 to +80 °C
• Lid fastening: Quick-release fasteners

Final note

The OBO Bettermann 2001861 Abox-i is a robust, maintenance-friendly junction box that meets the demands of professional electrical installations in challenging environments. Its combination of high IP rating, halogen-free materials, and practical features makes it a reliable choice for long-term performance.
