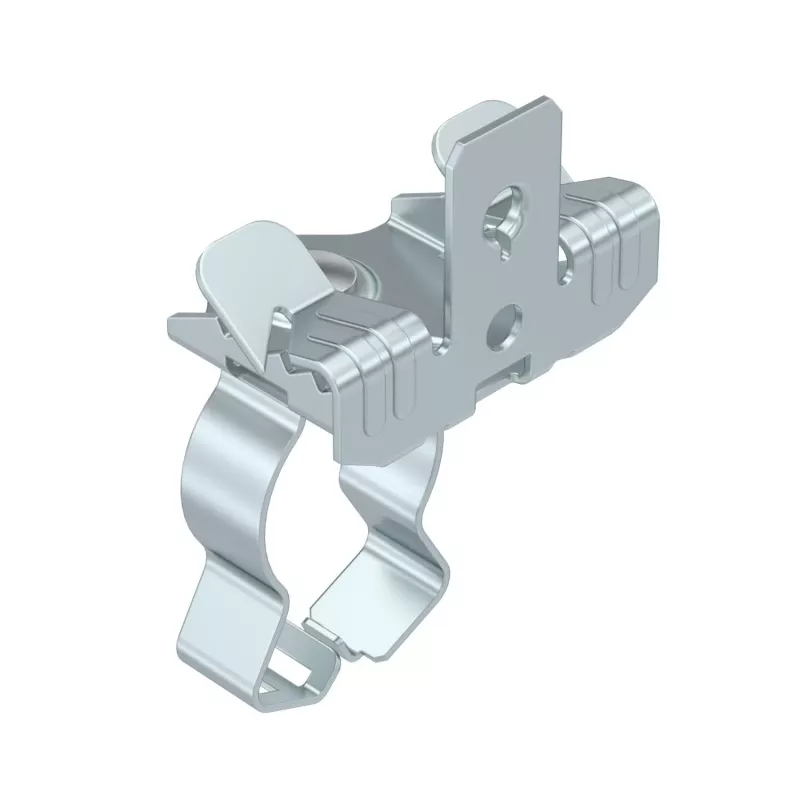

Abraçadeira de fixação OBO SCVPC 3-7 D25 com suporte de tubo, sob suporte, 20-25mm, aço galvanizado a quente 1488621

The OBO SCVPC 3-7 D25 is a support clamp with integrated pipe holder, designed for secure fastening of pipes and cables beneath steel beams. Its hot-dip galvanised steel construction provides robust corrosion protection, making it suitable for demanding environments. The clamp accommodates flange thicknesses from 3 to 7 mm and pipe diameters from 20 to 25 mm, offering reliable load support up to 100 N.

Highlights

• Hot-dip galvanised steel for excellent corrosion resistance
• Mounts below beam, ideal for cable and pipe routing
• Fits flange thickness 3–7 mm and pipe diameter 20–25 mm
• Supports static loads up to 100 N

In daily use

This clamp simplifies installation on steel beams without drilling or welding. The integrated pipe holder keeps conduits or pipes neatly aligned, while the galvanised finish ensures long-term durability even in outdoor or humid conditions. Its compact design allows for quick adjustment and secure clamping.

Full specifications

• Product type: Support clamp with pipe holder
• Mounting position: Below beam
• Material: Steel
• Surface treatment: Hot-dip galvanised
• Flange thickness range: 3 - 7 mm
• Pipe diameter range: 20 - 25 mm
• Number of pipes/cables: 1
• Max. static load: 100 N
• Application: Fastening pipes and cables to steel beams
• Mounting type: Clamp for steel beams/profiles
• Colour: Metallic silver

Final note

A dependable solution for professional cable and pipe management on steel structures, combining strength and corrosion resistance.
