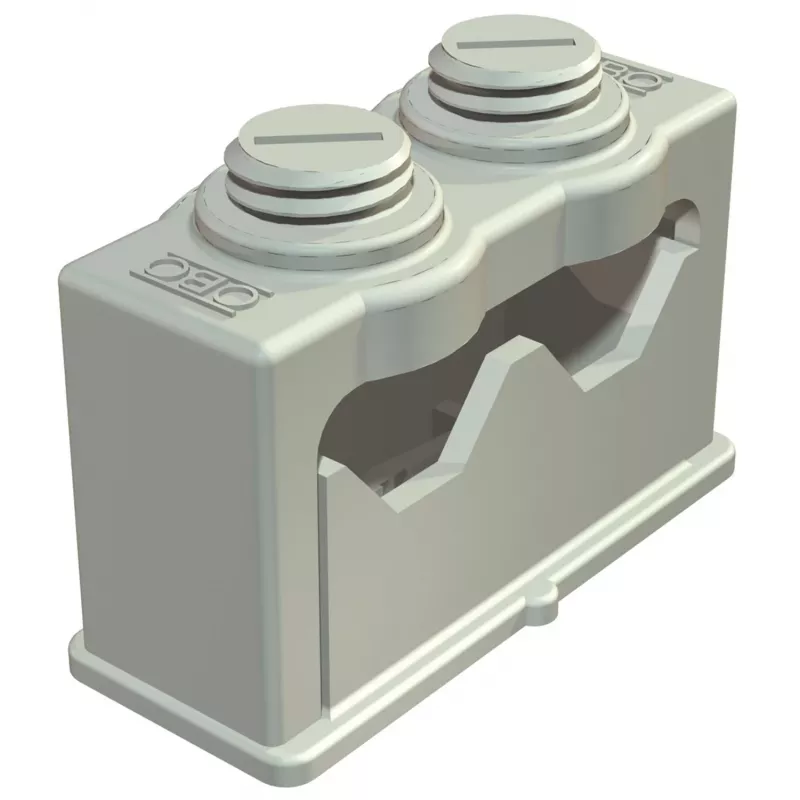

OBO Bettermann abraçadeira isolada Grip-Iso cinzento-claro 30-40 mm 2 (2107015)

Securing cables and pipes with diameters between 30 and 40 mm can be challenging, especially in environments where vibration, UV exposure, or temperature fluctuations are present. The OBO Bettermann Vertr Grip-Iso Clamp addresses this by providing a reliable, insulating fastening solution that holds conduits firmly in place without damaging their insulation.

Who is it for

This clamp is intended for electricians, installers, and maintenance technicians who need to fasten cables or pipes in residential, commercial, or industrial settings. It is suitable for both indoor and outdoor use, thanks to its UV-stabilized and halogen-free polyamide construction.

Main features

• Clamping diameter range: 30 - 40 mm
• Material: Polyamide (PA), light grey (RAL 7035)
• Halogen-free and UV-stabilized
• Operating temperature: -20 to +85 °C
• Screw mounting with M6 screw (hole diameter 6.5 mm)
• Hinged, single-part design for easy installation

Specifications

• Product type: Insulating grip clamp
• Material: Polyamide (PA)
• Colour: Light grey
• Clamping diameter range: 30 - 40 mm
• Mounting type: Screw mounting
• Recommended screw size: M6
• Screw hole diameter: 6.5 mm
• Halogen-free: Yes
• UV-stabilized: Yes
• Operating temperature: -20 to +85 °C
• Suitable for outdoor use: Yes
• Number of fastened items: 1
• Design: Hinged, single-part

Tips

For optimal performance, ensure the clamp is tightened to the recommended torque for the M6 screw. When installing outdoors, the UV-stabilized material will resist degradation from sunlight, maintaining its integrity over time.
