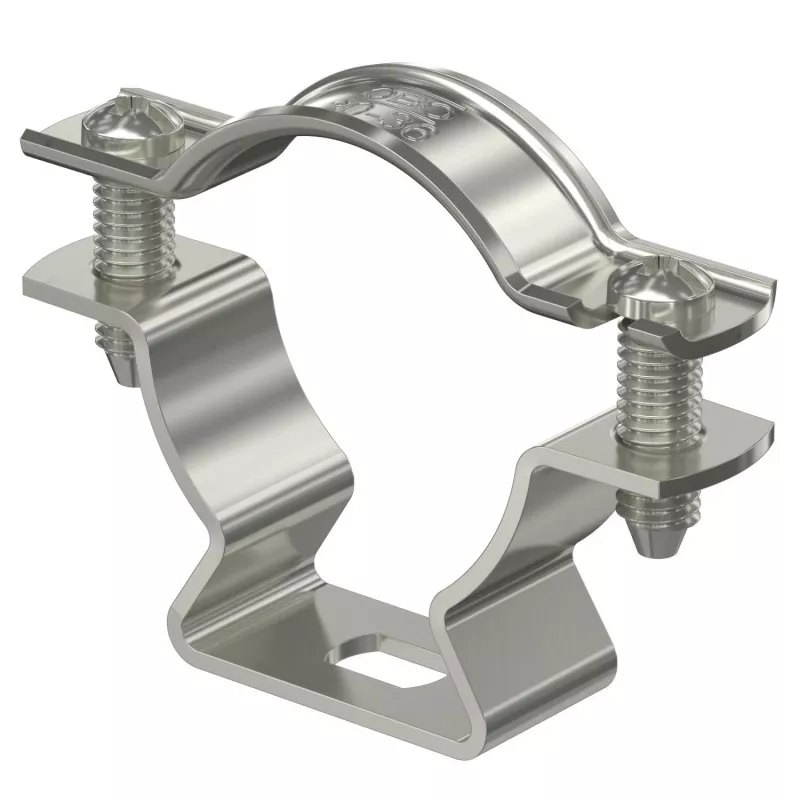

OBO BETTERMANN ASL 733 36 A2 Abraçadeira de distância com fenda oblonga 1362990

Electricians and installers use the OBO BETTERMANN ASL 733 36 A2 distance clamp to securely fasten cables, conduits, and pipes with a nominal diameter of 36 mm. The slotted hole allows for easy alignment during mounting, while the stainless steel A2 construction ensures high corrosion resistance, making it suitable for outdoor and demanding environments.

Key specifications

• Clamping range: 36 mm
• Material: Stainless steel A2 (DIN 1.4301)
• Mounting hole: Slotted, 7 x 20 mm
• Distance to mounting surface: 36 mm
• Overall height: 40 mm
• Overall width: 18 mm
• Temperature resistance: -40 to +150 °C
• Colour: Natural stainless steel

Why choose it

This distance clamp offers reliable fixing with high corrosion resistance and UV stability, ensuring long-term performance even outdoors. The slotted hole simplifies installation by allowing adjustment before final tightening.

Ideal use cases

• Fastening cables and conduits in industrial settings
• Outdoor installations exposed to weather
• Applications requiring a defined distance from the mounting surface

Good to know

The clamp is halogen-free and suitable for a wide temperature range. Its compact design and light weight (0.03 kg) make it easy to handle during installation.
