OBO BETTERMANN calha de cabos 80x80x2000 chapa de aço galvanizada em banda tampa de encaixe 6247194

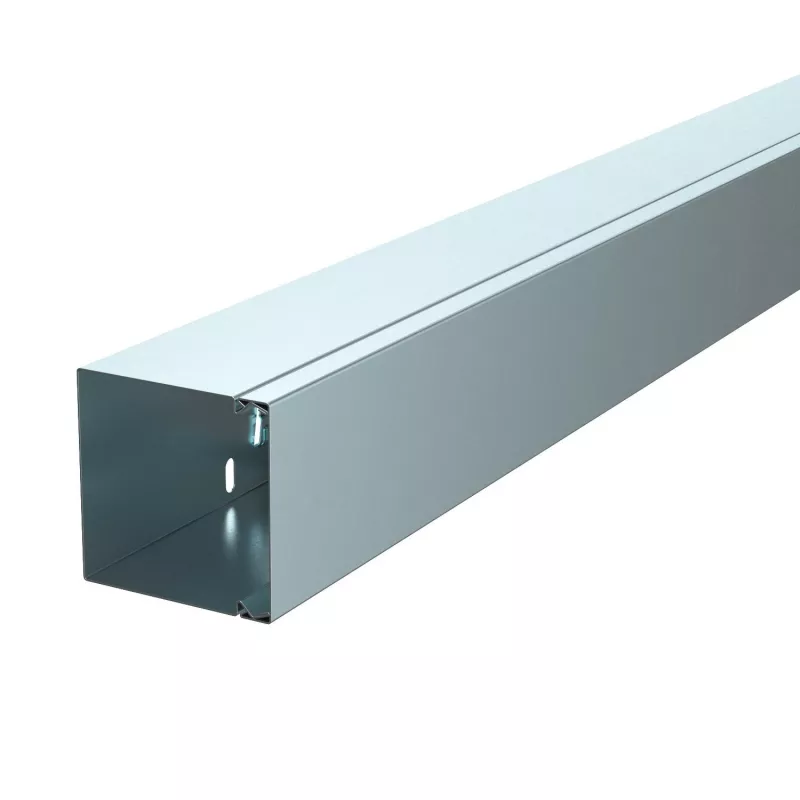

Electricians and facility managers routing power or data cables along walls or ceilings in commercial and industrial buildings will find this OBO BETTERMANN cable duct a dependable solution. The 80x80x2000 mm steel duct provides a clean, protected pathway for cables, with a snap-on lid for quick access during installation and maintenance.

Key specifications

• Material: Steel, strip galvanised
• Dimensions: 80 mm width, 80 mm height, 2000 mm length
• Single compartment with solid side walls
• Snap-on lid
• Perforated base for mounting
• Halogen-free
• IP20 protection rating
• Operating temperature: -5 °C to +60 °C
• Compliant with DIN EN 50085-1 and DIN EN 50085-2-1

Why choose it

The strip-galvanised steel construction offers robust mechanical protection for cables in indoor environments. The snap-on lid allows for fast installation and re-entry when adding or servicing cables. The perforated base simplifies fixing to walls or ceilings, reducing installation time.

Ideal use cases

• Routing power cables in workshops and production areas
• Organising data and communication cables in offices
• Protecting cables along walls in warehouses
• Ceiling-mounted cable runs in commercial buildings

Good to know

The duct is halogen-free, which means it does not emit corrosive gases in the event of fire. It is suitable for wall and ceiling mounting. The metallic finish provides a neutral appearance that blends with industrial interiors.
