OBO Bettermann curva vertical 90° 60x200mm RBV 620 S FS 7007013

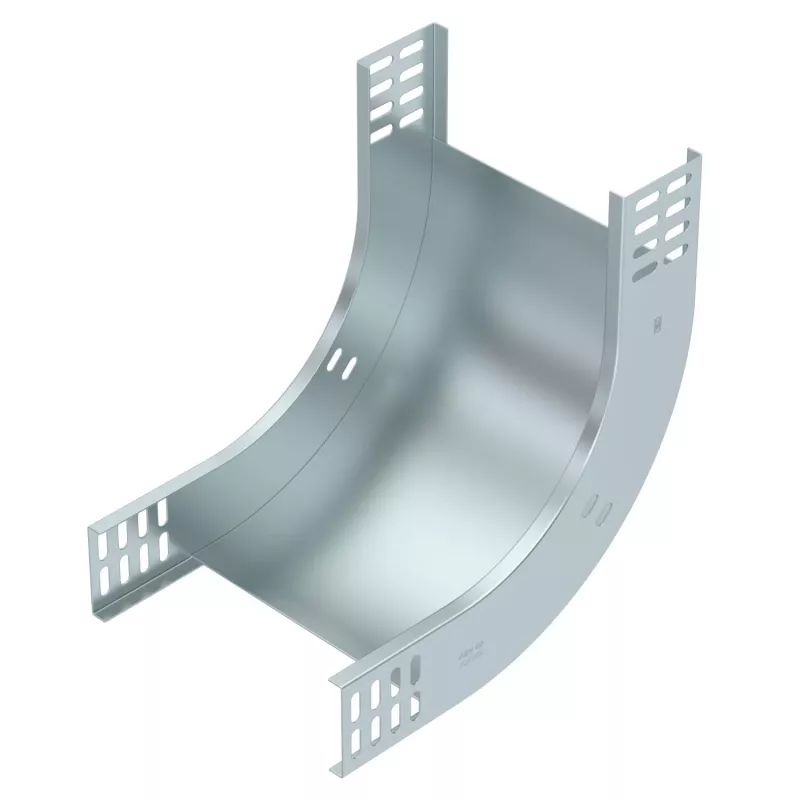

The OBO Bettermann RBV 620 S FS vertical bend changes the direction of a cable tray by 90 degrees in the vertical plane. It is made for cable trays with a width of 200 mm and a side height of 60 mm, and it keeps the full cross-section open so cables can be pulled through without damage.

Highlights

• 90° vertical bend for cable tray systems
• Fits 200 mm wide, 60 mm high cable trays
• Hot-dip galvanised steel for long-term corrosion protection
• Outer radius of 300 mm supports proper cable bending
• Complies with DIN EN 61537 for cable tray systems

In daily use

This bend is used where a cable tray route changes from horizontal to vertical or vice versa. The hot-dip galvanised finish makes it suitable for indoor and outdoor industrial environments. The 300 mm outer radius allows cables to be installed without exceeding their minimum bending radius.

Full specifications

• Product type: Vertical bend for cable tray
• Bend angle: 90°
• Compatible cable tray width: 200 mm
• Compatible cable tray side height: 60 mm
• Material: Steel
• Surface finish: Hot-dip galvanised
• Outer radius: 300 mm
• Series: RBV
• Standard compliance: DIN EN 61537
• Colour: Metallic grey

Final note

OBO Bettermann RBV 620 S FS is a straightforward, robust component for completing vertical cable tray routes in professional installations.
