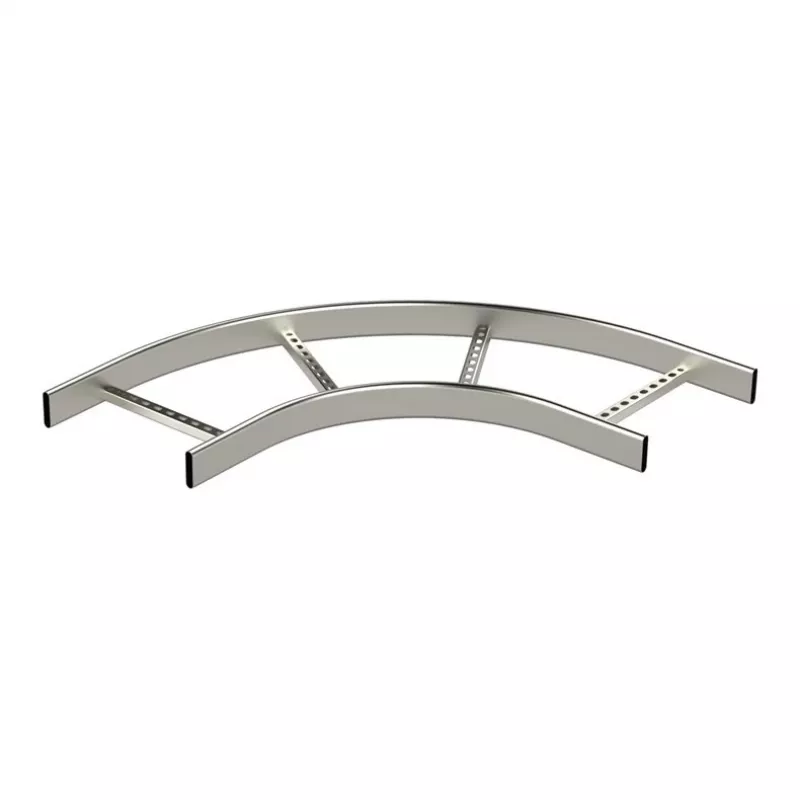

OBO Bettermann KS90-200 R=300 HDG Curva de 90° para calha de cabos de 200mm de largura

The OBO Bettermann KS90-200 R=300 HDG Corner Piece is a high-quality 90-degree bend designed for the KS cable tray system. It provides a smooth horizontal direction change with a 300 mm bend radius, ensuring gentle cable routing and protection. Hot-dip galvanized (HDG) according to DIN EN ISO 1461, this corner piece offers excellent corrosion resistance for demanding environments.

Advantages

• Smooth 90° bend with 300 mm radius for gentle cable guidance
• Hot-dip galvanized finish for superior corrosion protection
• Integrated earthing capability for electrical continuity
• Non-combustible and UV-resistant for long-lasting performance
• Easy screw connection mounting

Suitable for

• Horizontal direction changes in cable tray runs
• Industrial, commercial, and infrastructure installations
• Indoor and outdoor applications requiring high corrosion resistance

Key specifications

• Product Type: Cable Tray Bend
• Bend Angle: 90°
• Bend Radius: 300 mm
• Compatible Tray Width: 200 mm
• Side Height: 60 mm
• Material: Steel
• Surface Finish: Hot-dip galvanized (HDG)
• Galvanization Standard: DIN EN ISO 1461
• Overall Length (Outer Edge): 500 mm
• Overall Width (Outer Edge): 500 mm
• Colour: Metallic Grey

Recommendations

For optimal performance, use with OBO Bettermann KS200 cable trays and compatible connectors. Ensure proper screw tightening for electrical continuity.
