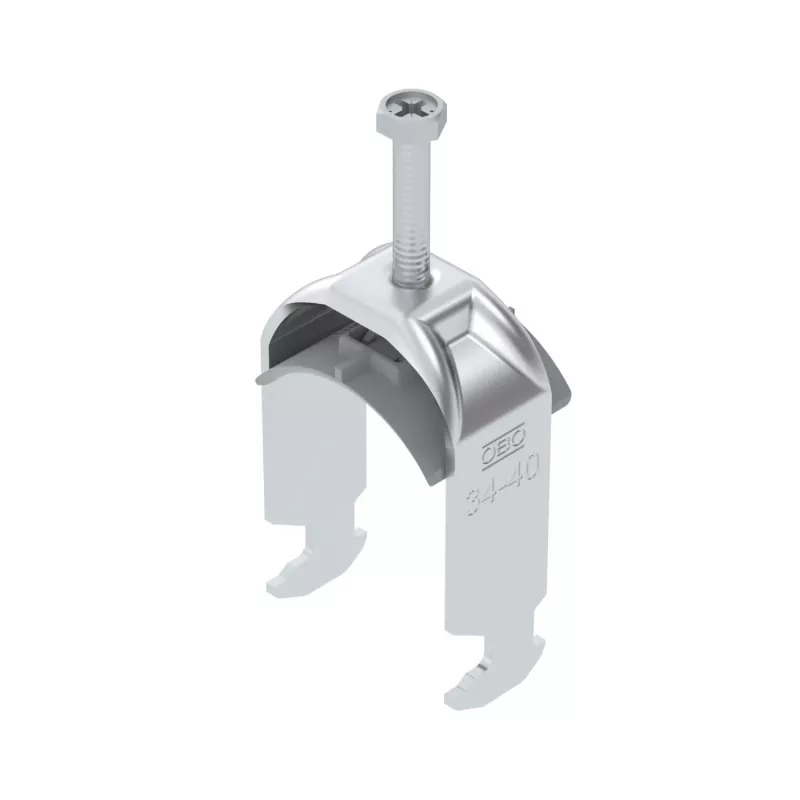

OBO BS-H1-K-40 ALU abraçadeira em U 40mm alumínio 1186436

Secure pipes and conduits in demanding environments with this OBO U-bolt clamp. The BS-H1-K-40 ALU is an aluminium clamp for 40 mm diameter pipes, commonly used by electricians and plumbers for surface mounting on walls or threaded rods. Its aluminium body is lightweight yet robust, suitable for outdoor use and a wide temperature range.

Key specifications

• Clamping diameter: 40 mm
• Material: Aluminium
• Screws: 2 hexagon head screws, M6, steel, electro-galvanized
• Temperature resistance: -40 to +150 °C
• UV-resistant and halogen-free

Why choose it

The aluminium construction offers corrosion resistance and durability, while the galvanized steel screws ensure a secure fastening. The clamp is silicone-free, making it suitable for sensitive applications.

Ideal use cases

• Fastening pipes and conduits in outdoor installations
• Mounting on threaded rods for overhead pipe runs
• Applications requiring a wide temperature range

Good to know

The clamp is surface-mounted and designed for a 40 mm pipe diameter. It is not pre-assembled; screws are included.
