OBO SLL IE2050 rws canto interior SL-L 20x50 branco puro RAL9010 PVC 6132240

Snap-on inner corner with 90° bend for OBO SL-L trunking, 20x50 mm, pure white RAL9010, PVC, self-extinguishing, IP30.

Overview

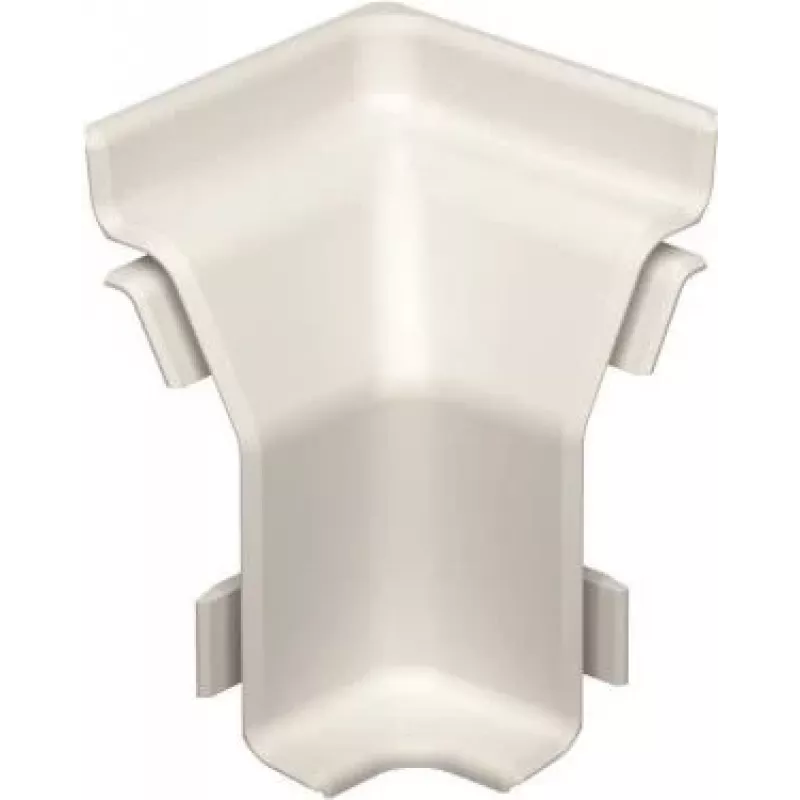

The OBO SLL IE2050 rws is a precision-moulded inner corner piece designed to create seamless 90-degree transitions in OBO Bettermann SL-L cable trunking systems. It accommodates trunking with a 20 mm height and 50 mm width, ensuring a perfect fit without the need for cutting or on-site fabrication. The snap-on mounting mechanism allows for quick, tool-free installation, reducing labour time and ensuring a secure, rattle-free connection. Manufactured from high-quality polyvinyl chloride (PVC), this component offers excellent durability and a clean, professional appearance. Its pure white RAL 9010 finish matches the standard SL-L trunking colour, maintaining a consistent aesthetic throughout the installation.

What stands out

• Self-extinguishing PVC material enhances fire safety in building installations.
• Snap-on design enables fast, secure attachment without additional tools.
• Precise 20x50 mm compatibility ensures a flush fit with SL-L trunking.
• Pure white RAL 9010 colour blends seamlessly with standard trunking.
• 90-degree bend angle provides a smooth cable path around internal corners.

Technical details

• Accessory type: Inner corner
• Compatible trunking system: OBO Bettermann SL-L
• Compatible trunking dimensions: 20 mm height x 50 mm width
• Material: Polyvinyl chloride (PVC)
• Colour: Pure white (RAL 9010)
• Bend angle: 90 degrees
• Halogen-free: No
• Self-extinguishing: Yes
• Mounting type: Snap-on
• UV resistance: Not UV resistant (for indoor use)
• Operating temperature range: -5°C to +60°C
• Protection class: IP30
• RoHS compliance: Compliant
• REACH compliance: Compliant
• Surface finish: Matt
• Intended use: Cable routing for internal 90-degree corners

Our verdict

The OBO SLL IE2050 rws inner corner is an essential accessory for any SL-L trunking installation requiring neat internal bends. Its snap-on design and exact dimensional match make it a reliable, time-saving choice for professional electricians.
