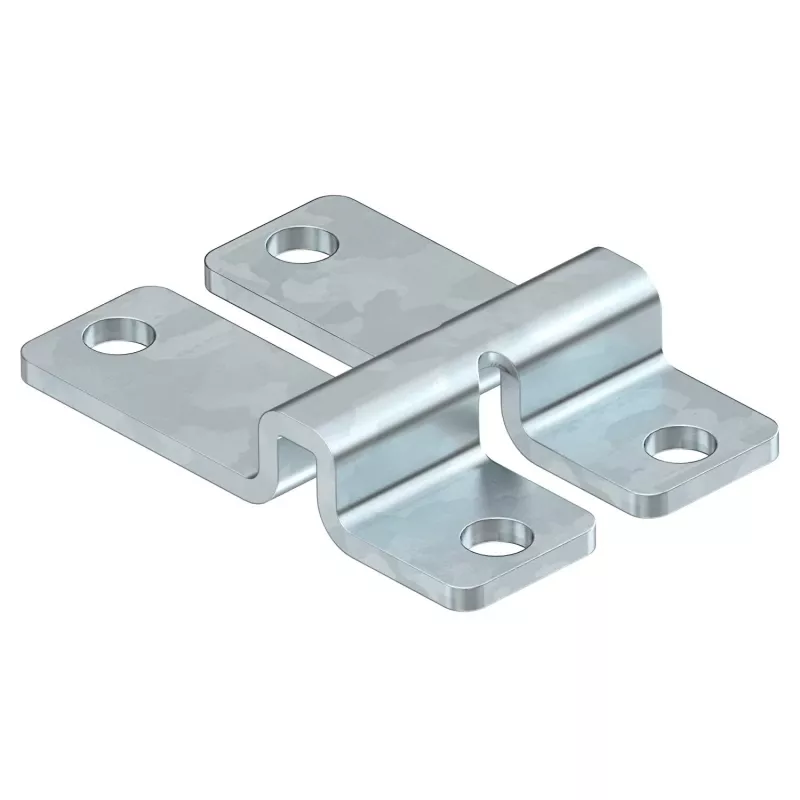

OBO WB GR FT Fixador de parede e chão para calhas de cabos de grelha, aparafusável/rebitável, aço galvanizado a quente 6017160

Installers mounting OBO Bettermann mesh cable trays on walls or floors use the OBO WB GR FT fastener for a secure, corrosion-resistant connection. The fastener is screwable and rivetable, suitable for tray side heights of 35 mm, 60 mm, and 105 mm, and tray widths from 50 mm to 600 mm. Made of hot-dip galvanised steel, it withstands heavy corrosion environments indoors and outdoors.

Key specifications

• Product type: Wall and floor fastener
• Application: Mounting of mesh cable trays
• Mounting method: Screwable, rivetable
• Material: Steel
• Surface finish: Hot-dip galvanised (FT)
• Corrosion protection standard: DIN EN ISO 1461
• Suitable for cable tray side height: 35 mm, 60 mm, 105 mm
• Suitable for cable tray width: 50 mm to 600 mm
• Mounting holes diameter: 7 mm
• Number of mounting holes: 2
• Recommended screw/rivet size: M6
• Installation location: Wall, floor
• System compatibility: OBO Bettermann mesh cable tray systems
• Colour: Metallic (silver/grey)
• Environmental suitability: Indoor and outdoor (heavy corrosion environments)

Why choose it

The hot-dip galvanised coating provides long-term protection against corrosion, making this fastener reliable even in demanding industrial or outdoor settings. Its dual mounting options offer flexibility during installation.

Ideal use cases

• Securing mesh cable trays to concrete or masonry walls
• Floor-mounted cable tray installations in industrial plants
• Outdoor cable management systems exposed to weather

Good to know

The fastener is designed for use with OBO Bettermann mesh cable tray systems and accepts M6 screws or rivets through two 7 mm holes.
