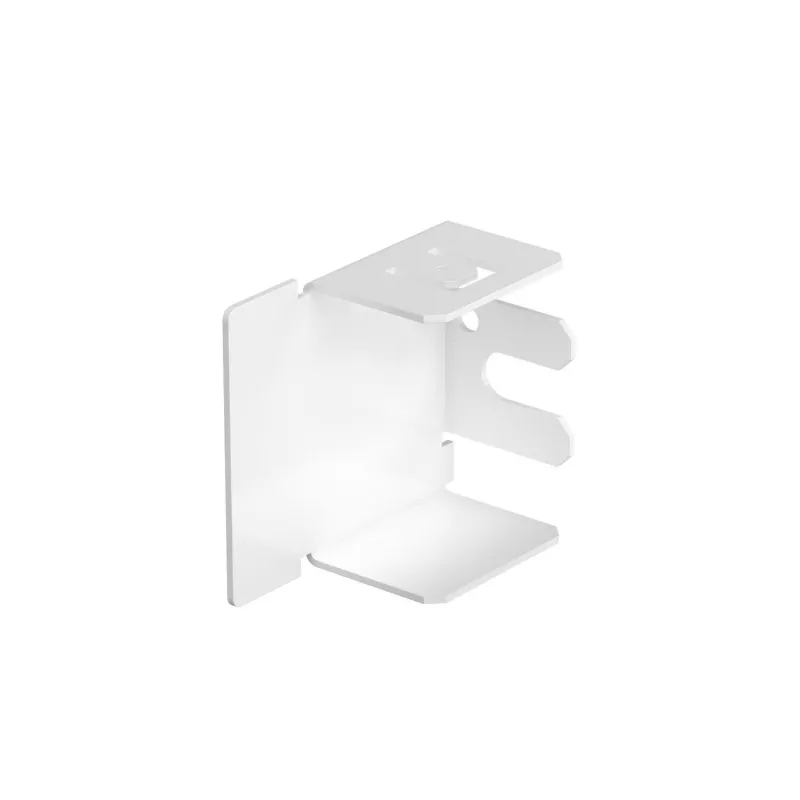

OBO BETTERMANN peça terminal 6249418 LKM E40040RW direita branco

Electricians and panel builders finishing a cable duct run in indoor installations use the OBO BETTERMANN End Cap 6249418 to close the open end of an LKM duct profile measuring 40 x 40 mm. This right-hand (RW) end cap snaps onto the duct end, protecting cable edges and providing a clean, professional appearance.

Key specifications

• Type: End cap
• Compatible system: LKM cable duct system E40040
• Compatible duct profile: 40 x 40 mm (height x width)
• Orientation: Right-hand (RW)
• Material: PVC
• Colour: White (RAL 9010)
• Mounting method: Snap-on / push-fit
• Application area: Indoor electrical installations, cable management
• Halogen-free: No
• UV resistant: No
• Operating temperature range: -5°C to +60°C
• Ingress protection: IP20
• Fire resistance: Flame retardant, self-extinguishing
• Standards compliance: DIN EN 50085-1

Why choose it

The end cap matches the duct profile exactly, ensuring a secure fit without tools. Its white PVC body blends with standard trunking, and the flame-retardant material supports safe cable management in building installations.

Ideal use cases

• Terminating cable duct ends in control cabinets and distribution boards
• Protecting cable insulation from sharp duct edges
• Completing cable management in offices, workshops, and residential electrical installations

Good to know

This end cap is designed for the right-hand side of the LKM E40040 duct. For the left-hand side, use the corresponding left-hand version. It is not suitable for outdoor use or UV-exposed environments.
