OBO BETTERMANN PLM D 1220 FS Calha corta-fogo 120x200x2000 mm 7218012

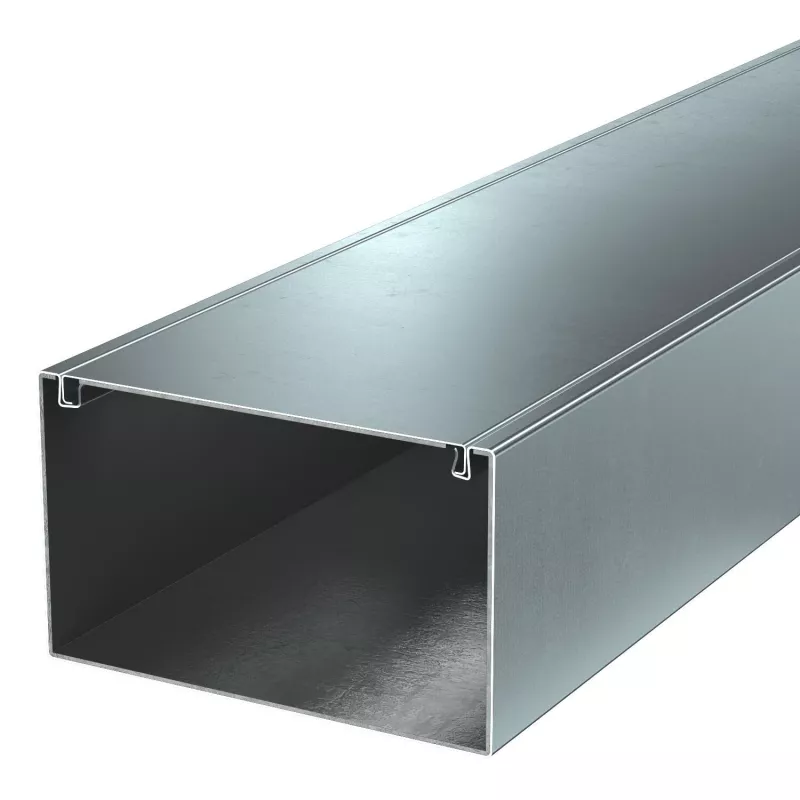

The OBO PLM D 1220 FS is a fire protection cable channel that combines a robust galvanized steel body with an integrated fire protection fabric, ensuring functional integrity of electrical installations in case of fire. Its hinged, removable cover allows easy access for cable installation and maintenance.

Highlights

• Fire resistance class E90 according to DIN 4102-12
• Integrated fire protection fabric for enhanced safety
• Galvanized steel construction for durability
• Hinged, removable cover for convenient cable management
• Surface-mounted installation for wall or ceiling

In daily use

Designed for surface mounting on walls or ceilings, this single-compartment channel is ideal for routing power and data cables in buildings where fire protection is critical. The metallic grey finish blends with industrial environments, while the galvanized coating provides corrosion protection.

Full specifications

• Product Type: Fire Protection Cable Channel
• Material: Galvanized Steel
• Fire Resistance Class: E90 (DIN 4102-12)
• System: OBO PYROLINE® Rapid
• External Length: 2000 mm
• External Width: 200 mm
• External Height: 120 mm
• Cover Type: Hinged, removable
• Mounting Type: Wall or Ceiling
• Application: Functional integrity of electrical installations in case of fire
• Halogen-free: Yes
• Corrosion Protection: Galvanized
• Colour: Metallic Grey
• Number of Compartments: 1
• Suitable for Outdoor Use: No
• Standard Compliance: DIN 4102-12
• Integrated Fire Protection: Yes, with fire protection fabric
• Installation Type: Surface-mounted
• Weight per Unit: 20.00 kg

Final note

A reliable solution for maintaining circuit integrity in fire conditions, the OBO PLM D 1220 FS is engineered to meet stringent safety standards.
