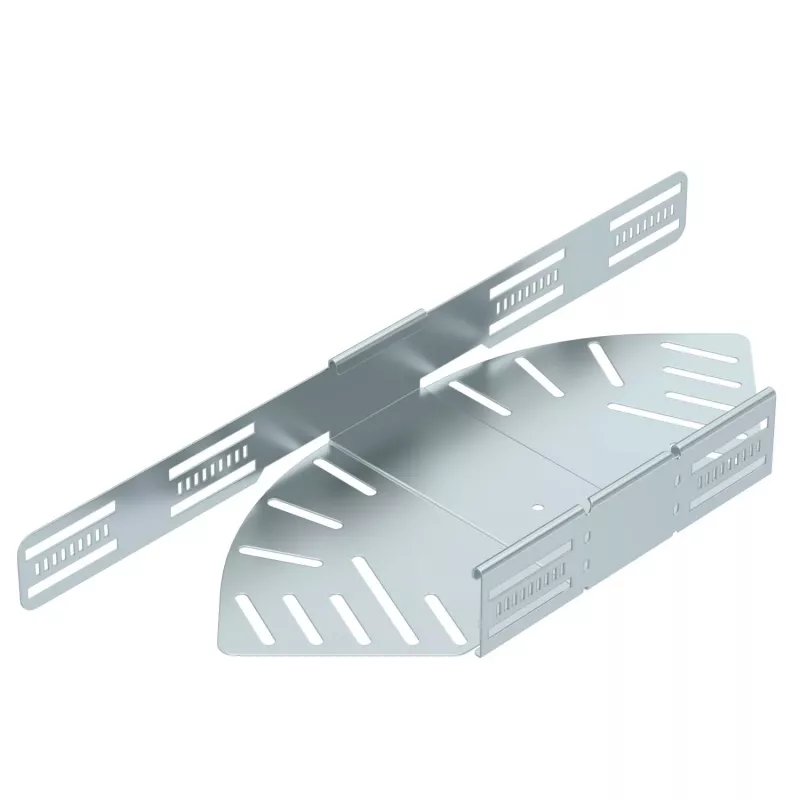

OBO Bettermann RB W 620 FS Curva horizontal ajustável 600 mm, aço galvanizado a quente 6037104

Changing the direction of a cable ladder run often requires cutting and welding on site, which weakens the structure and slows installation. The OBO Bettermann RB W 620 FS adjustable horizontal bend solves this by providing a ready-made, field-adjustable bend for the RB cable ladder system.

Who is it for

Electrical installers and panel builders who need to route cable ladders around corners in industrial or commercial environments. It suits projects where the exact bend angle is not known until installation, because it can be adjusted on site from 0° to 90°.

Main features

• Adjustable angle from 0° to 90° for precise direction changes
• Compatible with OBO Bettermann RB cable ladder system, nominal width 600 mm, height 60 mm
• Hot-dip galvanized steel per DIN EN ISO 1461 for high corrosion resistance
• Suitable for indoor and outdoor use
• Connects directly to cable ladder side rails

Specifications

• Product type: Adjustable horizontal bend
• System compatibility: OBO Bettermann RB cable ladder system
• Nominal system width: 600 mm
• Nominal system height: 60 mm
• Material: Steel
• Surface treatment: Hot-dip galvanized
• Galvanization standard: DIN EN ISO 1461
• Adjustability angle: 0° to 90°
• Bend type: Horizontal
• Corrosion resistance: High
• Application: Direction change for cable ladders
• Mounting method: Connects to cable ladder side rails
• Colour: Metallic (Silver/Grey)
• Series: RB W 620 FS
• Environmental suitability: Indoor and Outdoor

Tips

When planning the cable ladder route, allow for the bend's adjustment range to accommodate final positioning. Ensure the mating side rails are clean and free of burrs before connection.
