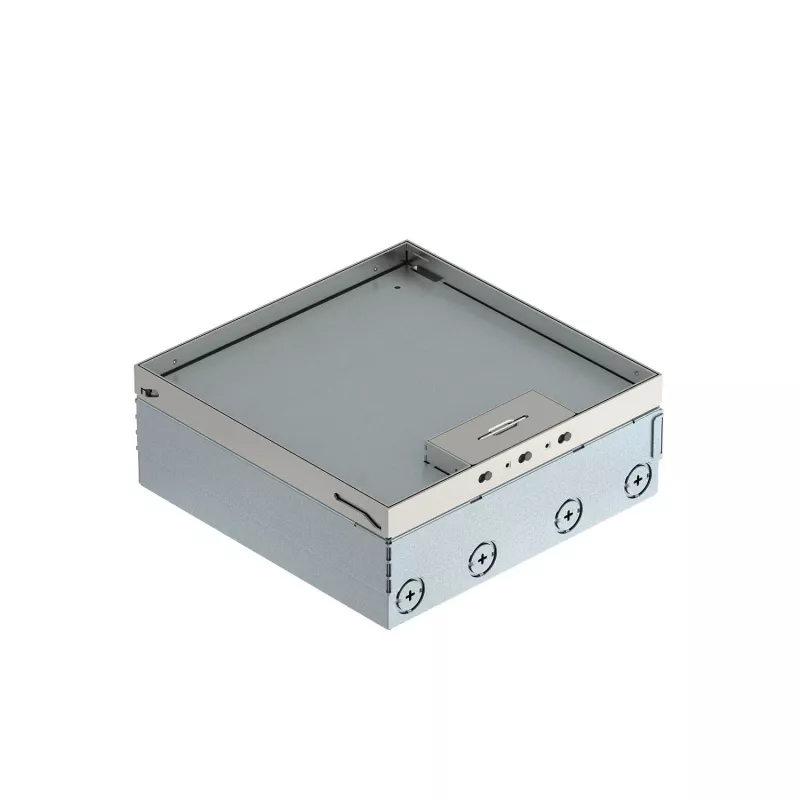

OBO Bettermann UDHO 2R Caixa de chão com 2x2 tomadas VDE Schuko, tampa em aço inoxidável 7427300

The OBO Bettermann UDHO 2R floor box integrates four VDE Schuko sockets into a flush-mounted unit, making it a practical choice for dry-care floor areas. Its stainless steel lid supports floor covering insertion up to 5 mm, allowing the box to blend with the surrounding flooring.

Highlights

• 2x2-fold VDE Schuko sockets (4 sockets total)
• Rated voltage: 250 V, rated current: 16 A
• Stainless steel lid with floor covering insertion up to 5 mm
• Polyamide housing in black
• Load capacity: 1.5 kN (150 kg)
• Protection class: IP20

In daily use

Designed for screed-flush installation, the UDHO 2R provides reliable power access in offices, meeting rooms, and other dry interior spaces. The hinged lid opens to reveal the sockets while maintaining a low profile when closed.

Full specifications

• Product type: Floor box / floor outlet
• Series: UDHO 2R
• Number of sockets: 2x2-fold (4 sockets total)
• Socket type: VDE Schuko (Type F)
• Rated voltage: 250 V
• Rated current: 16 A
• Installation type: Screed-flush / flush-mounted
• Suitable for floor type: Dry-care floors
• Lid type: Hinged lid, suitable for floor covering insertion
• Max floor covering thickness: 5 mm
• Material (frame/lid): Stainless steel
• Material (housing): Polyamide (PA)
• Protection class (closed): IP20
• Max load capacity: 1.5 kN (150 kg)
• Cable outlet: Tube body for cable guidance
• Number of device units: 4
• Colour (frame): Stainless steel
• Colour (housing): Black

Final note

A robust floor box for professional installations where flush power access is required.
