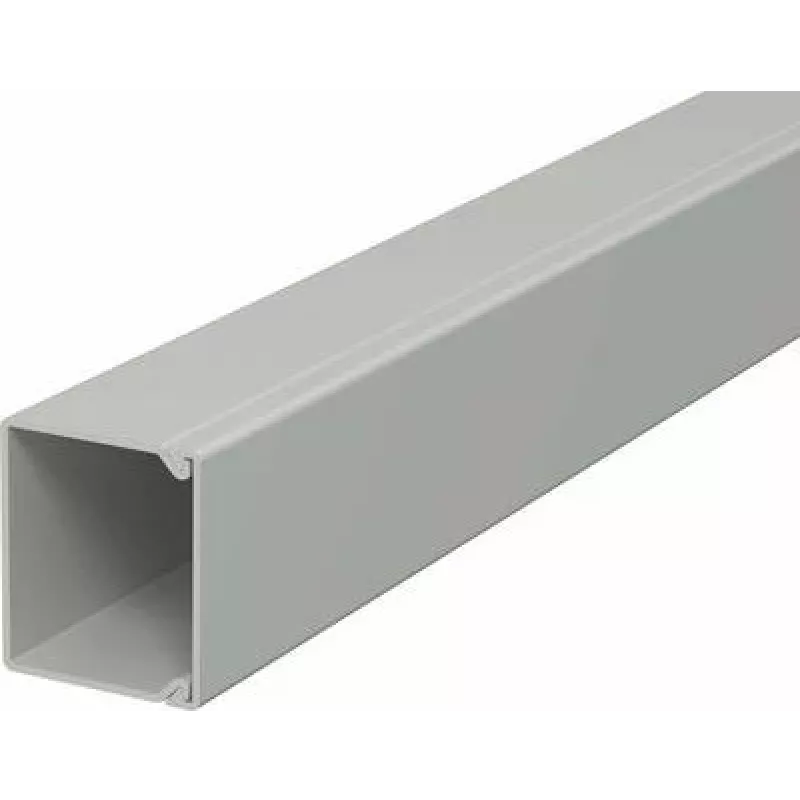

OBO BETTERMANN WDK 30030 calha de parede e teto para cabos 30x30 mm cinzento pedra 2 m 6026818

With a usable cross-section of 660 mm², this OBO BETTERMANN WDK 30030 duct offers generous space for cable routing in a compact 30x30 mm profile. The stone grey PVC body blends seamlessly into industrial and commercial interiors, while the clip-on cover allows quick access for maintenance.

Overview

The WDK 30030 is a single-compartment wall and ceiling cable duct designed for surface mounting. It is made from flame-retardant PVC and is suitable for a wide range of low-voltage and data cabling applications. The duct is supplied in 2-metre lengths and can be easily cut to size on site.

What stands out

• Flame-retardant PVC construction (EN 60695-2-11, 850°C glow wire)
• Snap-on cover for fast installation and re-entry
• Impact resistance rated IK07 for durability
• Stone grey (RAL 7030) finish for a professional look
• IP30 rating protects against solid objects larger than 2.5 mm

Technical details

• External dimensions: 30 mm width x 30 mm height
• Length: 2000 mm per section
• Number of compartments: 1
• Usable cross-section: 660 mm²
• Material: Polyvinyl chloride (PVC)
• Colour: Stone grey (RAL 7030)
• Mounting type: Wall, ceiling (surface mount)
• Cover type: Clip-on / snap-on
• Halogen-free: No
• Self-extinguishing: Yes
• Temperature resistance: -5 °C to +60 °C
• Protection class: IP30
• Impact resistance: IK07
• Fire behaviour: Flame-retardant according to EN 60695-2-11 (850°C)
• Suitable for functional integrity: No
• Surface protection: Untreated

Our verdict

The OBO BETTERMANN WDK 30030 is a reliable and robust solution for surface cable management in commercial and light industrial settings. Its flame-retardant properties and impact resistance make it a safe choice for exposed installations, while the stone grey colour keeps installations looking tidy.
