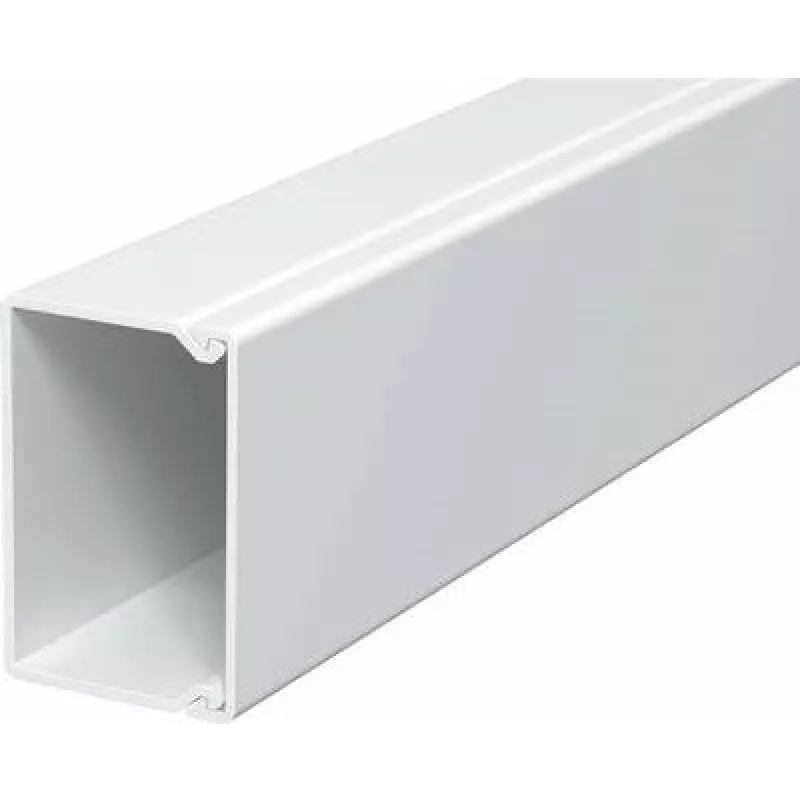

OBO BETTERMANN WDK 30045 calha de parede e teto para cabos 30x45 mm branco puro 2 m 6191118

Electricians and facility managers needing a neat, protected cable run along walls or ceilings will find the OBO BETTERMANN WDK 30045 trunking a reliable choice. This 2-metre length in pure white (RAL 9010) blends unobtrusively into plastered or painted surfaces, keeping power and data cables out of sight while maintaining easy access. The snap-on lid allows quick installation and later cable changes without special tools.

Key specifications

• External dimensions: 30 mm height x 45 mm width
• Length: 2000 mm (2 metres)
• Material: PVC, flame-retardant and self-extinguishing
• Colour: Pure white (RAL 9010)
• Single compartment with approx. 1134 mm² usable cross-section
• Mounting: Screwable to wall or ceiling, surface mount
• Standards: EN 50085-1, EN 50085-2-1
• Temperature range: -5 °C to +60 °C
• Protection class: IP30

Why choose it

The WDK 30045 combines a slim profile with generous internal space, accommodating multiple cables while remaining discreet. Its halogen-free PVC construction meets stringent fire safety requirements, and the snap-on lid ensures a secure closure that can be reopened for maintenance. The pure white finish resists yellowing and is easy to clean, maintaining a professional appearance in offices, schools, and commercial buildings.

Ideal use cases

• Routing electrical wiring along plastered walls in offices and retail spaces
• Concealing low-voltage data or AV cables in meeting rooms and classrooms
• Protecting cables in corridors, stairwells, and utility areas
• Retrofitting cable management in renovation projects without chasing walls

Good to know

This trunking is not halogen-free but offers flame-retardant and self-extinguishing properties, making it suitable for most indoor applications. It can be cut to length with standard PVC saws or shears, and matching accessories such as corners, end caps, and junction pieces are available separately to complete the installation. For best results, fix the base at intervals of approximately 500 mm using suitable screws and wall plugs.
