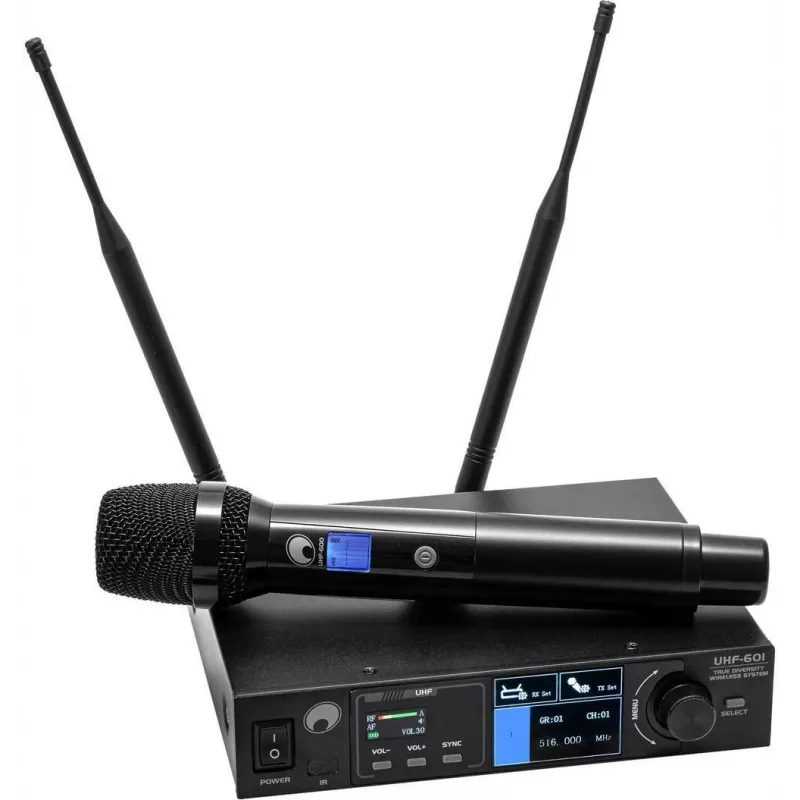

OMNITRONIC UHF-601 sistema de microfone sem fios UHF de canal único 520-554 MHz 13063601

Live sound and presentations can suffer from tangled cables, limited mobility, and interference. The OMNITRONIC UHF-601 single-channel wireless microphone system eliminates these issues with a reliable UHF fixed-frequency link in the 520–554 MHz band, giving you freedom to move without sacrificing audio quality.

Who is it for

This system suits vocalists, presenters, fitness instructors, event hosts, and houses of worship that need a simple, dependable wireless microphone solution. It is also ideal for small venues, conference rooms, and mobile DJs who want a quick setup with no complicated frequency coordination.

Main features

• Single-channel UHF receiver with one dynamic handheld microphone transmitter
• Fixed frequency in the 520–554 MHz range for stable, interference-resistant operation
• Cardioid dynamic microphone capsule reduces feedback and background noise
• Balanced XLR and unbalanced 6.3 mm jack outputs for flexible connection to mixers, amplifiers, or active speakers
• LED indicators for power and RF signal on the receiver
• Compact receiver with external 12 V DC power supply included
• Transmitter runs on two standard AA batteries for convenient replacement
• Operating range up to 30 meters line-of-sight

Specifications

• System type: UHF wireless microphone system
• Number of channels: 1
• Frequency band: 520–554 MHz
• Frequency type: Fixed frequency
• Modulation: FM
• Frequency stability: ±0.005%
• Signal-to-noise ratio: >90 dB
• Total harmonic distortion: <0.5%
• RF output power (transmitter): 10 mW
• Receiver outputs: 1x XLR balanced, 1x 6.3 mm jack unbalanced
• Microphone type: Dynamic handheld
• Microphone polar pattern: Cardioid
• Frequency response: 40 Hz – 18 kHz
• Operating range: up to 30 m (line of sight)
• Receiver power supply: DC 12 V, 500 mA (AC adapter included)
• Transmitter power supply: 2x 1.5 V AA batteries (not included)
• Receiver dimensions (L x W x H): 150 x 110 x 35 mm
• Microphone dimensions (length x diameter): 240 x 50 mm
• Receiver weight: 0.2 kg
• Microphone weight (without batteries): 0.2 kg

Tips

For best results, keep the receiver at least one meter away from large metal objects and Wi-Fi routers. Always use fresh alkaline batteries in the transmitter and switch off both units when not in use to extend battery life. If you need multiple wireless systems, choose units with different fixed frequencies to avoid interference.
