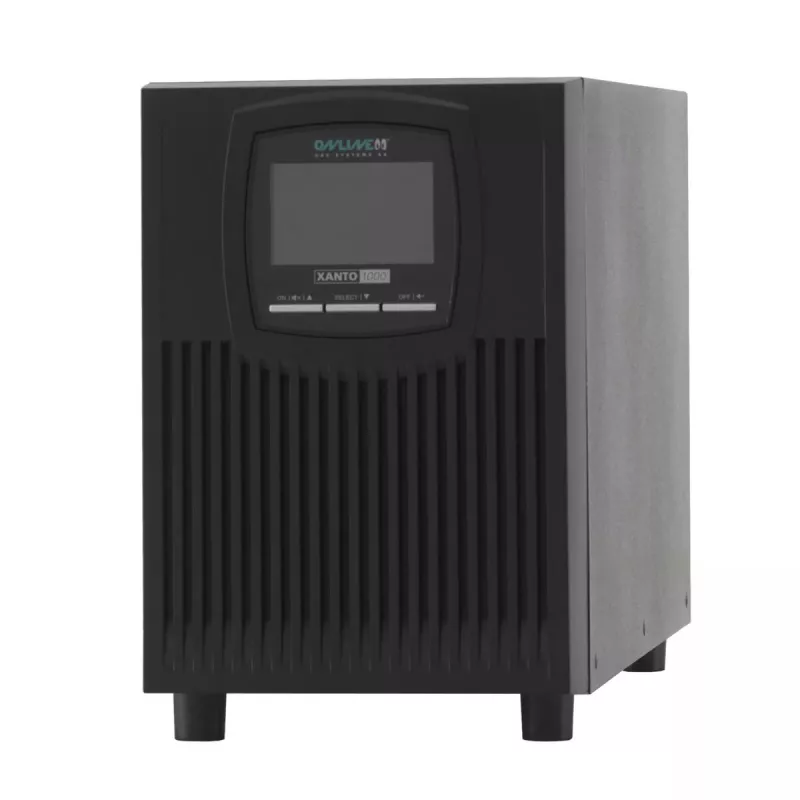

UPS (fonte de alimentação ininterrupta) ONLINE Systeme XANTO 1000

The XANTO UPS is a premium-class online UPS designed to protect servers, switchgear, controlgear, IT and other sensitive equipment against power failure and data loss. Using double-conversion technology, the unit completely decouples the load from the mains supply to eliminate the effects of voltage fluctuations, surges and harmonic distortion. XANTO also features DYNAMIC POWER TECHNOLOGY (DPT) which dynamically adapts output power to connected loads and can increase active power (watts) up to the nominal value, making more usable power available than with conventional UPS systems. Compared with its predecessor, XANTO can provide more than double the autonomy time in many configurations and achieves up to 97% efficiency for lower operating costs.

Advantages

XANTO reduces purchase and operating costs by supplying up to 54% more active power to the connected load versus many conventional UPS designs, allowing a smaller model to be used while remaining within the optimal operating range. That reduces heat losses and energy consumption. The device is available as a tower or a compact 2U rack-tower, with a display that can be adapted for horizontal mounting. Switchable output sockets permit automatic load cutoff without additional software, extending battery runtime for critical loads. External battery packs are supported for scalable autonomy, and battery deep-discharge protection plus cold-start function are provided to protect batteries and allow start from battery power when mains are absent.

Key specifications

• Topology: Online double-conversion UPS
• Dynamic Power Technology (DPT): up to 54% more active power available compared with many conventional UPS
• Efficiency: up to 97%
• Form factors: Tower or 2U rack-tower (19" mounting with included angle)
• Scalable autonomy: supports external battery packs (up to seven additional packs for models 1000 and above)
• Battery features: deep-discharge protection (configurable via menu or DataWatch) and cold-start function

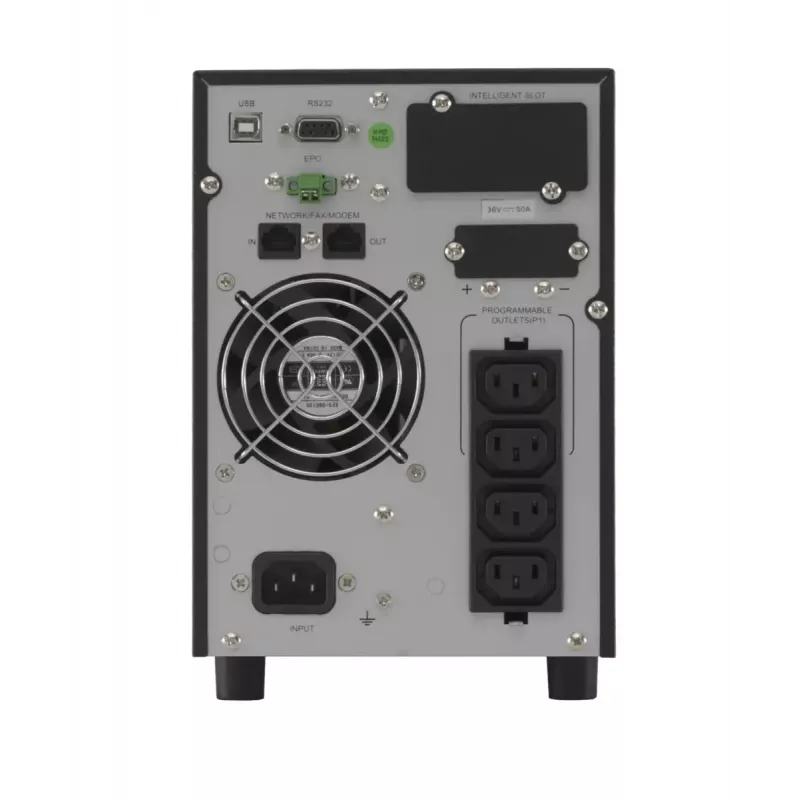

• Output socket control: switchable sockets for load shedding without software
• Interfaces: RS-232 and USB standard; optional SNMP adapter and professional version with temperature/temperature-humidity sensor support
• Management software: DataWatch included; RCCMD recommended for multi-server shutdown
• Optional accessories: SNMP adapter (remote administration, automated shutdown, event log), AS400/relay card for dry-contact signals and remote shutdown input

How to use

Install XANTO either as a freestanding tower or mount it in a rack using the supplied 19" angle. Connect critical equipment to the UPS output sockets and configure switchable sockets for noncritical loads if automatic load shedding is required during battery operation. Use the menu or DataWatch software to set battery deep-discharge protection parameters and monitor UPS status over RS-232 or USB. For networked environments, install the SNMP adapter and DataWatch to enable controlled shutdown, event logging and remote administration. To extend runtime, connect the recommended external battery packs; models 1000 and above accept up to seven additional packs for significantly increased autonomy.

Recommendations

Choose the smallest XANTO model that covers your peak active power needs with DPT to optimize cost and efficiency. Configure switchable output sockets to preserve runtime for critical loads, and use DataWatch or the SNMP adapter for automated, orderly shutdowns of servers. For longer backup times, add external battery packs compatible with the selected XANTO model and enable deep-discharge protection to prolong battery life.
