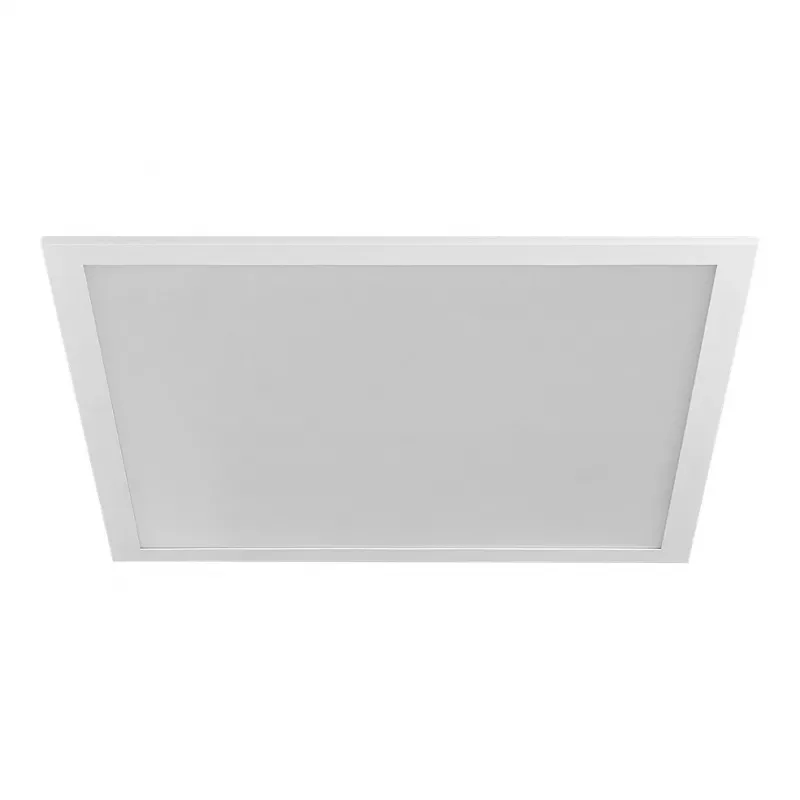

Painel LED OPPLE Slim Panel EcoMax G4 Sq620 32W DALI 840 U19

Uniform, glare-free illumination in offices and commercial spaces often requires a balance of efficiency, control, and aesthetic integration. The OPPLE Slim Panel EcoMax G4 LED Panel Sq620 32W DALI 840 U19 solves this by delivering 3500 lumens of cool white light with a UGR below 19, ensuring visual comfort for prolonged work. Its slim aluminum frame and polystyrene diffuser blend seamlessly into standard ceiling grids, while DALI dimming enables precise light management for energy savings and scene setting.

Who is it for

This panel is ideal for facility managers, electrical contractors, and lighting designers working on office fit-outs, meeting rooms, retail spaces, and educational institutions. It suits projects requiring DALI-compatible luminaires with high efficacy and low glare, as well as those needing flexible installation options—recessed, surface-mounted, or suspended—without compromising on light quality.

Main features

• High luminous efficacy of 109 lm/W, producing 3500 lumens from just 32 W
• DALI dimmable for smooth, flicker-free control from 100% to 1%
• Low glare rating (UGR < 19) for comfortable working environments
• Long lifespan of 50,000 hours (L70/B50), reducing maintenance costs
• Versatile installation: recessed in standard ceilings, or surface/suspended with accessories
• Robust aluminum frame with polystyrene diffuser for even light distribution
• External DALI driver included for straightforward integration

Specifications

• Power consumption: 32 W
• Luminous flux: 3500 lm
• Color temperature: 4000 K (cool white)
• Color rendering index (CRI): >80
• Beam angle: 90°
• Input voltage: 220-240 V AC, 50/60 Hz
• IP rating: IP20 (indoor use only)
• IK rating: IK02
• Operating temperature: -10 to +40 °C
• Energy efficiency class: C (new ERP)
• Housing material: aluminum frame, polystyrene diffuser
• Dimensions: 620 x 620 mm (standard grid size)

Tips

For optimal performance, ensure the panel is installed by a qualified electrician and connected to a DALI-compatible controller to unlock full dimming capabilities. When surface mounting, use the dedicated accessory kit to maintain proper thermal management. Clean the diffuser regularly with a soft, dry cloth to preserve light output. Consider grouping multiple panels on the same DALI bus for synchronized lighting scenes in larger spaces.
