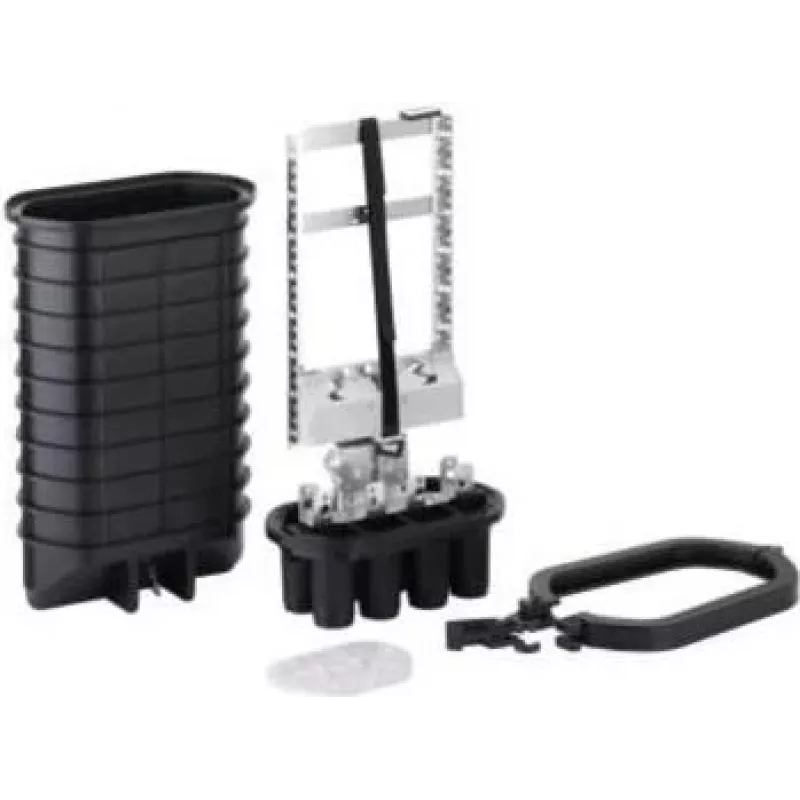

Optotec IP68 Outdoor Dome Caixa de fusão, design compacto, máx. 288 fibras FTTx (FOCUS-CODC2-AB)

The Optotec FOCUS-CODC2-AB stands apart from typical splice closures with its compact dome form factor that still accommodates up to 288 fibers, making it a space-efficient solution for high-density FTTx networks. Its IP68-rated mechanical sealing ensures reliable protection in harsh outdoor environments, whether mounted aerially, in ducts, directly buried, or on walls and poles.

Highlights

• IP68 ingress protection for outdoor use
• Maximum capacity of 288 fibers
• Supports up to 12 splice trays (24 fibers each)
• Mechanical sealing for re-entry and maintenance
• High-strength engineering plastic construction with UV and corrosion resistance

In daily use

Designed for FTTx deployments, this closure simplifies fiber management with its oval and round cable entry ports, accommodating a wide range of cable diameters. The dome design provides ample space for splice trays while maintaining a compact footprint, and the mechanical seal allows quick access without special tools. It operates reliably in temperatures from -40°C to +65°C and withstands humidity up to 95% non-condensing.

Full specifications

• Product Type: Fiber Optic Splice Closure
• Closure Design: Dome Type
• Ingress Protection (IP) Rating: IP68
• Maximum Fiber Capacity: 288 Fibers
• Network Application: FTTx
• Application Environment: Outdoor (Aerial, Duct, Direct Buried, Wall-mount, Pole-mount)
• Cable Entry Ports: 1 Oval Port, 6 Round Ports
• Splice Tray Capacity: Supports up to 12 splice trays
• Fibers per Splice Tray: 24 Fibers
• Sealing Method: Mechanical Sealing
• Material: High-strength Engineering Plastic
• Operating Temperature: -40°C to +65°C
• Storage Temperature: -40°C to +70°C
• Humidity: 5% to 95% (non-condensing)
• Fiber Compatibility: G.652D, G.657A1, G.657A2 Single-mode
• Splice Type Compatibility: Fusion Splice, Mechanical Splice
• Cable Diameter Range (Oval Port): 10 - 25 mm
• Cable Diameter Range (Round Ports): 5 - 15 mm
• UV Resistance: Yes
• Corrosion Resistance: Yes

Final note

With its robust construction and high fiber capacity, the FOCUS-CODC2-AB is a dependable choice for outdoor fiber optic networks where space and reliability are critical.
