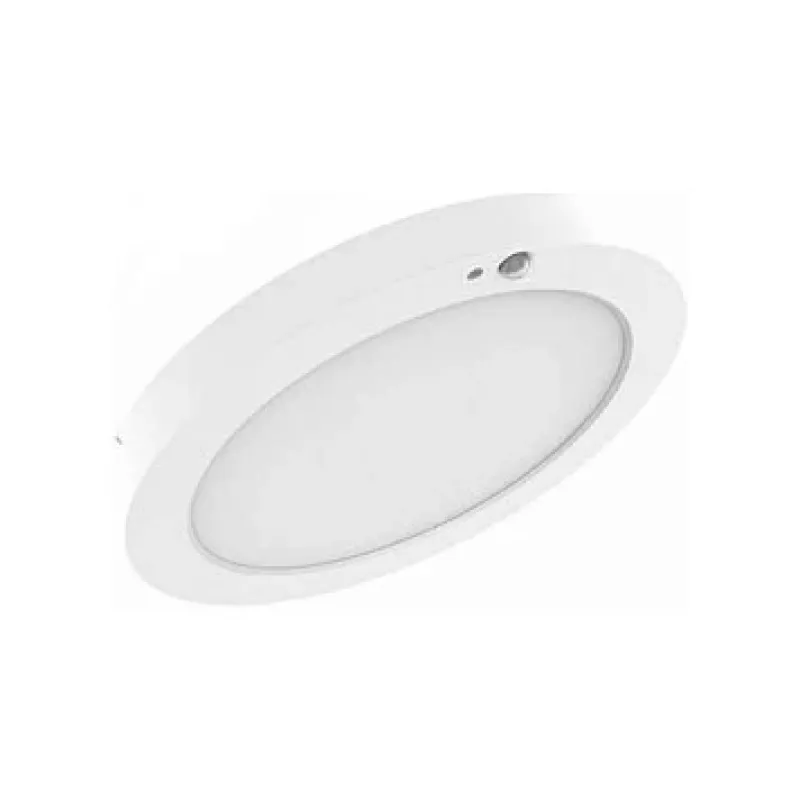

OSRAM DL UNIV D300 V 23W ML 83040 WT Downlight LED semirrecessado para renovação

The OSRAM DL UNIV D300 V 23W ML 83040 WT is a high-performance semi-recessed LED downlight designed specifically for renovation projects. With a power consumption of only 23W, it delivers an impressive 2300 lumens of warm white light at 3000K, making it an energy-efficient replacement for traditional lighting. The downlight features a 40° beam angle and a high color rendering index (CRI >80) for excellent light quality. Its adjustable cut-out diameter (68-280 mm) allows flexible installation in various ceiling types. The housing is made of durable aluminum with a white finish, and the diffuser is PMMA. With a rated lifetime of 50,000 hours and IP20 protection, this downlight is ideal for indoor residential and commercial applications.

Advantages

Energy-efficient 23W LED technology saves up to 80% energy compared to conventional halogen downlights. Long lifetime of 50,000 hours reduces maintenance costs. Easy installation with adjustable cut-out diameter suitable for renovation. High luminous flux of 2300 lm ensures bright and uniform illumination. Warm white light (3000K) creates a cozy atmosphere.

Suitable for

• Renovation projects in residential and commercial buildings
• Recessed or semi-recessed ceiling installations
• Living rooms, bedrooms, hallways, and offices
• Retrofit of existing downlight housings

Key specifications

• Product Type: LED Downlight
• Installation: Semi-recessed
• Power Consumption: 23 W
• Luminous Flux: 2300 lm
• Color Temperature: 3000 K (Warm White)
• CRI: >80 Ra
• Beam Angle: 40°
• Housing Color: White
• Outer Diameter: 300 mm
• Cut-out Diameter: 68 - 280 mm (Adjustable)
• Installation Depth: 60 mm
• Lifetime (L70/B50 @ 25°C): 50,000 h
• Dimmable: No
• Nominal Voltage: 220-240 V AC
• Frequency: 50/60 Hz
• Protection Class: IP20
• Housing Material: Aluminum
• Diffuser Material: PMMA
• Operating Temperature: -20 to +40 °C
• Energy Efficiency Class: F

Recommendations

For optimal performance, ensure the cut-out diameter matches your ceiling opening. This downlight is not dimmable. Suitable for indoor use only.
