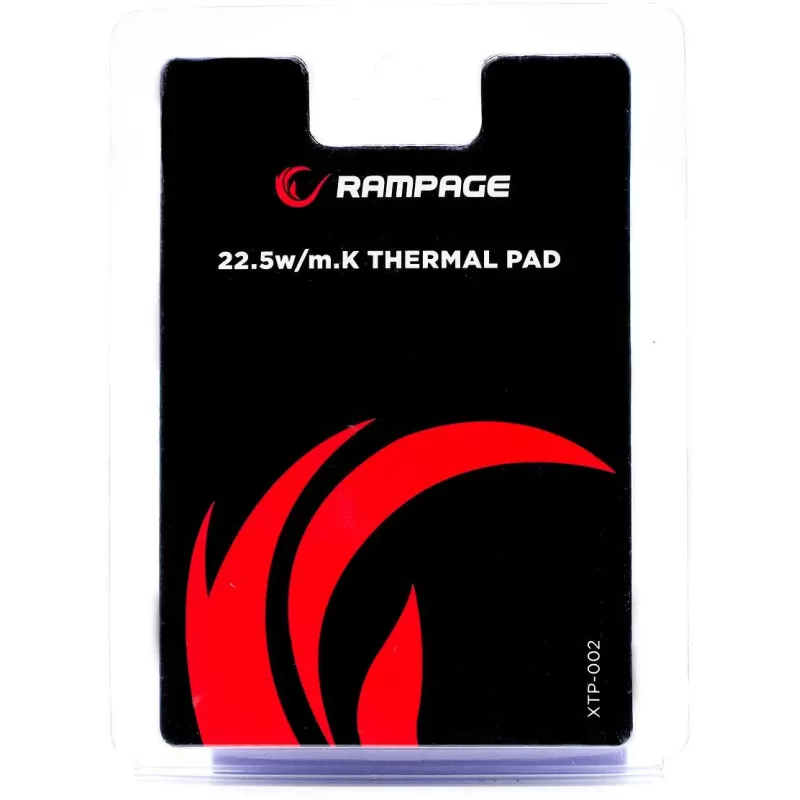

Pad térmico Rampage Termopad XTP-002 31×50×0,2mm PTM

The Rampage Termopad XTP-002 is a high-performance thermal pad designed for efficient heat transfer between electronic components and heatsinks. With dimensions of 31x50mm and a thickness of 0.2mm, this pad is ideal for use with CPUs, GPUs, VRMs, M.2 SSDs, laptop components, and game consoles. Its silicone-based composition offers a thermal conductivity of 12.8 W/mK, ensuring excellent thermal management.

Advantages

This thermal pad provides a reliable, non-conductive solution for heat dissipation. It is naturally tacky, eliminating the need for separate adhesive layers, and can be cut to custom sizes for versatile applications. The pad is reusable if handled carefully, making it a cost-effective choice for multiple installations. It is also RoHS compliant and halogen-free, meeting environmental safety standards.

Suitable for

• CPU and GPU cooling
• VRM and M.2 SSD thermal management
• Laptop and game console heat dissipation
• Custom electronics projects requiring precise thermal pads

Key specifications

• Pad Dimensions (L x W): 50 x 31 mm
• Pad Thickness: 0.2 mm
• Thermal Conductivity: 12.8 W/mK
• Color: Grey
• Material Composition: Silicone-based
• Operating Temperature Range: -40°C to 200°C
• Density: 3.2 g/cm³
• Hardness: 30-50 Shore 00
• Dielectric Strength: >7 kV/mm
• Flammability Rating: UL 94 V-0
• Electrical Conductivity: Non-conductive
• Reusability: Yes (if handled carefully)
• Adhesive Properties: Naturally Tacky (No separate adhesive layer)
• Cuttable: Yes, for custom sizing
• Packaging Quantity: 1 Pad

Recommendations

For optimal performance, ensure the surfaces are clean and dry before application. The pad can be cut to size using a sharp blade. Handle with care to maintain reusability. Suitable for a wide range of electronic devices requiring efficient thermal management.
