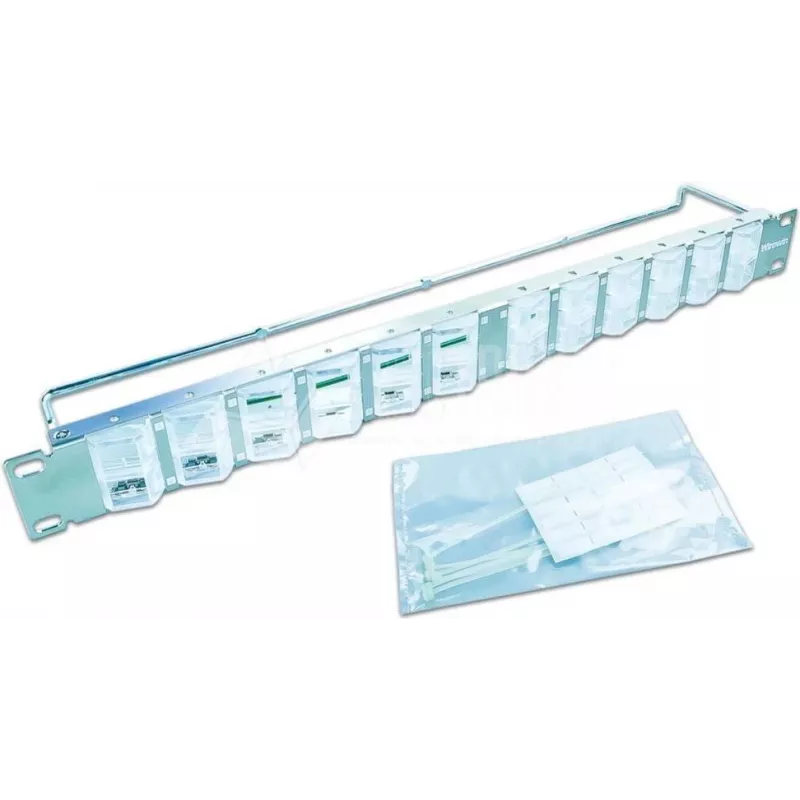

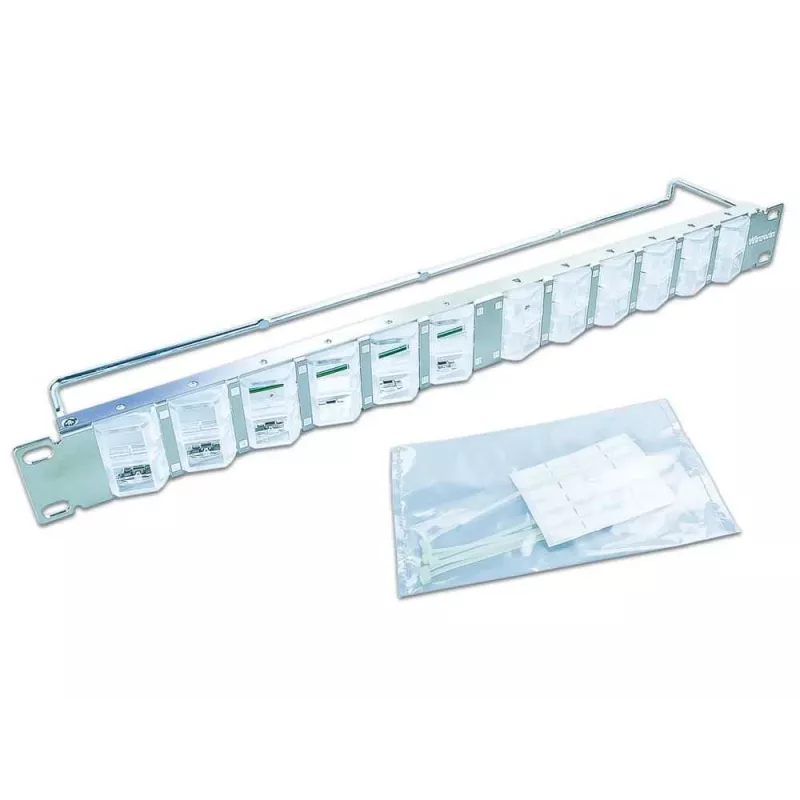

Painel cego Wirewin de alta qualidade para 24 módulos Keystone, sistema Keystone ajustável em ângulo 0° ou 45° (WKS PANEL 24 DYN ANG)

Network technicians and data center managers need flexible patching solutions that adapt to different cabling layouts. The Wirewin WKS PANEL 24 DYN ANG is a 24-port keystone blank panel for 19-inch racks, allowing you to mount standard keystone modules such as RJ45, fiber optic, HDMI, or USB. Each port can be angled at 0° or 45°, giving you control over cable routing and accessibility.

Key specifications

• 24 keystone ports, 1U rack mount, 19-inch

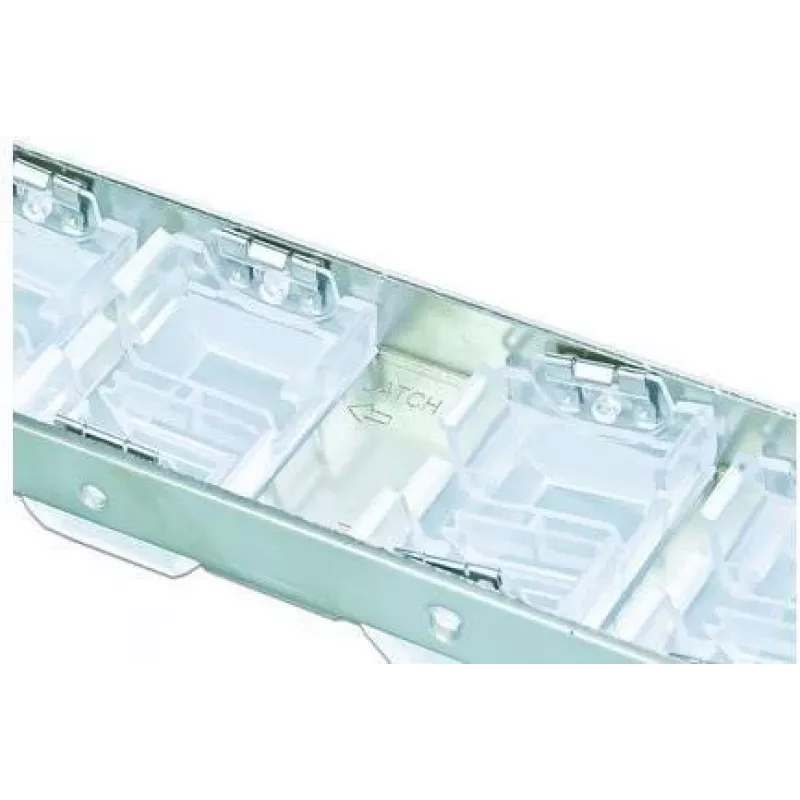

• Dynamic angle adjustment: 0° or 45° per module
• Material: cold-rolled steel, black (RAL 9005)
• Unshielded, with grounding option (screw/wire included)
• Integrated rear cable management bar

Why choose it

The adjustable angle mechanism lets you position modules flat or angled for easier access in high-density installations. The steel construction ensures durability, while the rear cable management bar keeps cabling tidy. The blank panel design gives you full freedom to populate it with the keystone modules you need.

Ideal use cases

• Data centers and server rooms requiring custom patch panel configurations
• Network infrastructure where cable routing angles vary
• Installations mixing copper and fiber keystone modules

Good to know

The panel is unshielded but includes grounding provisions. It is part of the WKS Panel Series and is compatible with standard keystone modules.
