Painel de E/S Supermicro MCP-260-00066-0B

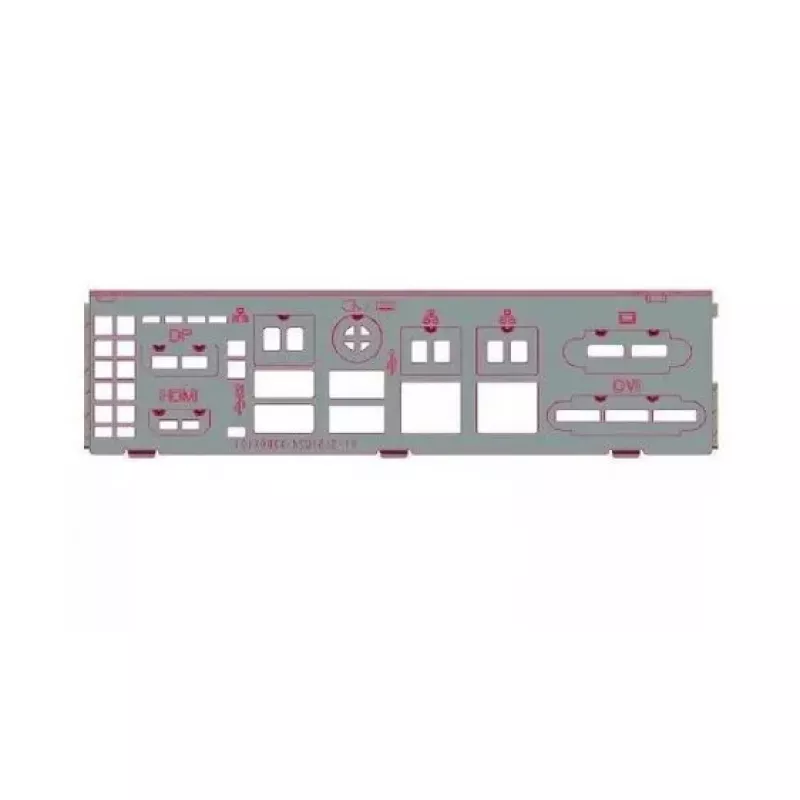

The Supermicro MCP-260-00066-0B I/O shield is a grey rear-panel accessory designed for rack chassis compatibility. It provides accurate alignment and support for motherboard input/output ports, helping to protect connectors from physical damage and dust while maintaining proper airflow and fit within a rack-mounted server. This I/O shield is intended as a replacement or spare part to preserve port accessibility and mechanical stability in server builds.

Advantages

The I/O shield offers precise cutouts and a form factor that matches compatible Supermicro chassis and motherboards, ensuring secure placement and minimal gaps around connectors. Its construction helps protect sensitive ports from accidental impacts and debris, and it contributes to maintaining consistent airflow patterns in a rack environment. The neutral grey finish integrates unobtrusively inside professional server systems.

Suitable for

• Rack-mounted Supermicro server chassis requiring a rear I/O shield
• Replacing damaged or missing motherboard I/O plates in data center equipment
• Maintenance and refurbishing of servers to restore proper port alignment and protection

Key specifications

• Color: grey
• Form factor: rear I/O shield designed for rack chassis compatibility
• Material: metal alloy suitable for standard server environments
• Purpose: protection and alignment of motherboard I/O ports
• Compatibility: intended for use with compatible Supermicro rack chassis and motherboards

How to use

To install, align the I/O shield with the rear opening of the chassis so the cutouts match the motherboard port layout, then press the shield into the chassis until it snaps or seats firmly in place. Ensure the motherboard is correctly positioned so that ports pass cleanly through the shield openings. For removal, gently pry the shield free from the chassis frame, taking care not to deform the metal or damage adjacent connectors.

Recommendations

Use the I/O shield when assembling or servicing rack-mounted servers to ensure ports remain protected and properly aligned; verify chassis and motherboard compatibility before installation and handle the shield with care to avoid bending the metal or obstructing ports.
