Painel de E/S Supermicro MCP-260-00118-0N para placas-mãe de servidor – placa de E/S traseira

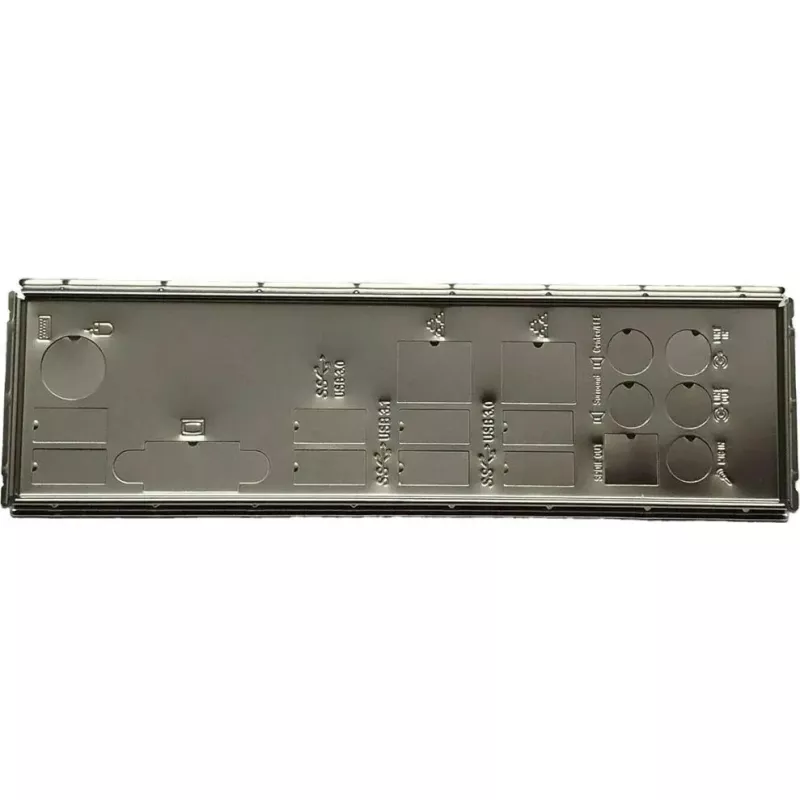

The Supermicro MCP-260-00118-0N rear I/O shield is a replacement rear I/O plate designed specifically for compatible Supermicro server motherboards. It provides precise cutouts and grounding for the motherboard's rear connectors, fits standard server chassis rear panels, and helps maintain correct port alignment and electromagnetic interference (EMI) protection. The plate is intended for use when the original I/O shield is damaged or missing, or during new server assembly to match the motherboard's port layout.

Advantages

This I/O shield offers exact port cutouts tailored to the matching Supermicro motherboard layout, ensuring connectors such as network, USB, serial, and video are accessible and properly aligned. The shield includes grounding tabs that establish chassis-to-motherboard grounding, supporting EMI mitigation and stable signal performance. Its form factor conforms to standard server rear panel dimensions, making installation straightforward in compatible chassis while preserving the structural fit and finish of the server backplane.

Suitable for

• Replacing a damaged or missing rear I/O plate on compatible Supermicro server motherboards
• Assembling or refurbishing rackmount or tower servers that require a matching I/O cutout layout
• Maintaining proper grounding and EMI protection for server I/O ports

Key specifications

• Material: stamped metal with grounding tabs for chassis contact
• Form factor: full-height server rear I/O plate compatible with standard chassis cutouts
• Cutouts: precision openings for rear ports (network, USB, serial, video, and other motherboard-specific connectors)
• Finish: conductive coating to support EMI shielding and corrosion resistance
• Mounting: standard screw and snap locations for secure attachment to chassis rear panel

How to use

Turn off the server and disconnect all power and peripheral cables before beginning. Remove the chassis rear panel or open the case according to the chassis manufacturer’s instructions. Align the I/O shield so that each cutout matches the motherboard’s rear connector layout, pressing the shield into the chassis opening until it snaps or seats into place, and secure with screws if required. Reinstall the motherboard or connectors if they were removed, reconnect internal cables, and reassemble the chassis. Power on the system and verify that all rear ports are accessible and functioning.

Recommendations

The I/O shield should be installed prior to installing the motherboard when possible to ensure correct alignment; ensure grounding tabs make contact with the chassis to maintain EMI protection. If any cutout does not align with the motherboard ports, verify motherboard model compatibility before forcing installation. Store unused shields in anti-corrosion packaging and avoid bending the metal to preserve fit and shielding properties.
