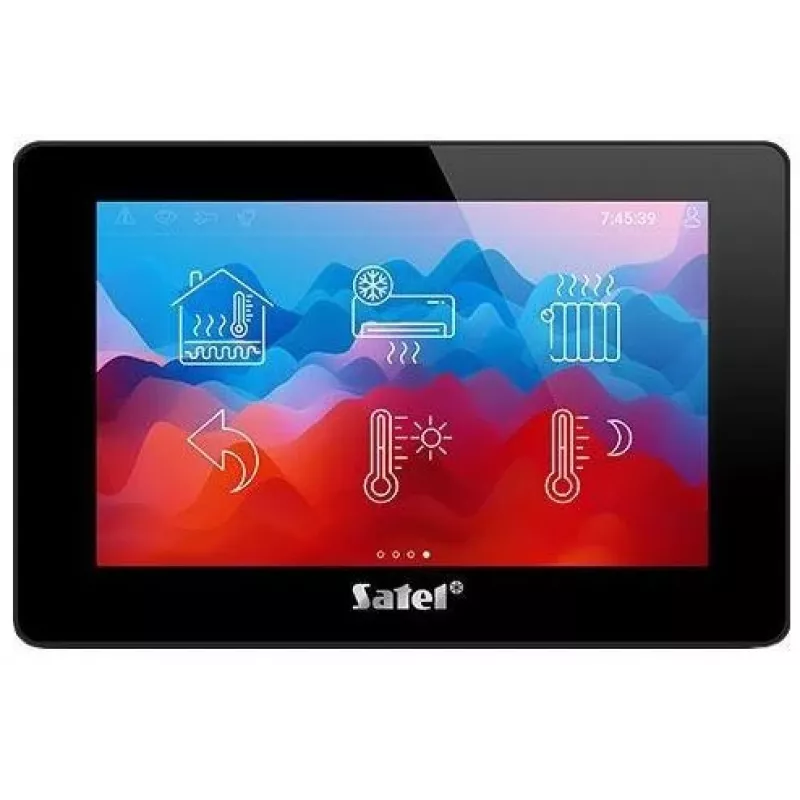

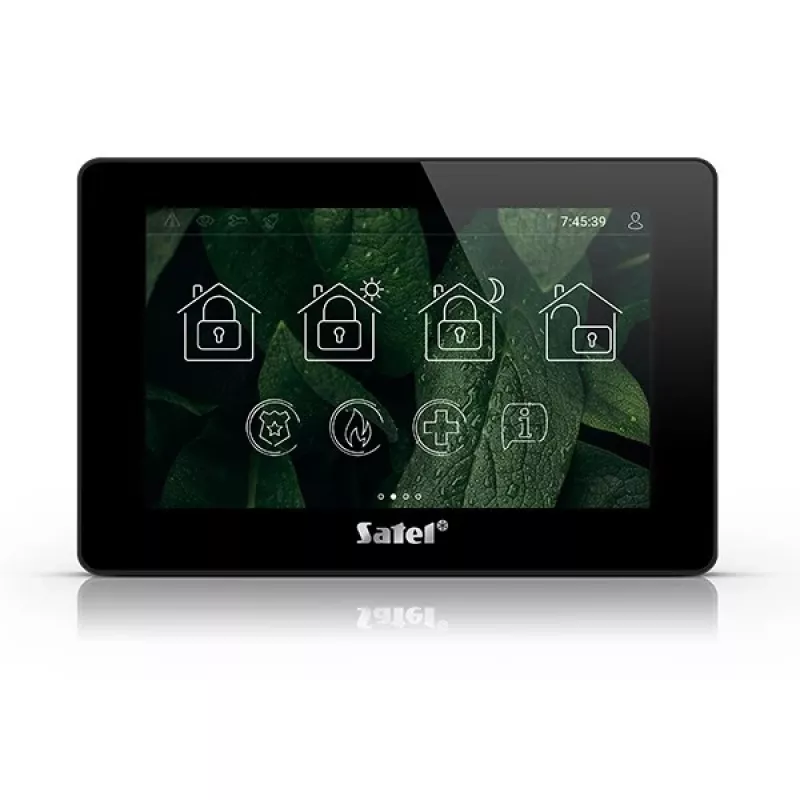

Painel de toque Satel INT-TSH2-B 7 polegadas 1024x600

The Satel INT-TSH2-B 7 inch touch control panel features a 1024 x 600 pixel LCD and capacitive touchscreen for precise touch and swipe gestures. Housed in a black enclosure suitable for wall or tabletop mounting, the panel runs on 12 V input voltage and has compact dimensions of 120 mm width, 92 mm depth and 14 mm height. Designed for operation with INTEGRA-class alarm and building automation systems, the INT-TSH2 series provides a multiscreen, multilevel interface, customizable themes and responsive performance for everyday control of modern security systems.

Advantages

The capacitive screen offers high sensitivity and supports intuitive swipe gestures, while a powerful processor and updated software ensure smooth and responsive operation of menus and animations. More than 16 million colours and customizable interface themes allow installers to match the panel to the interior and the system layout. The unit’s compact form factor and option for wall or tabletop mounting make it flexible for different installation scenarios.

Suitable for

• Control and operation of INTEGRA alarm systems and building automation panels
• Replacement of traditional keypads with a modern touchscreen interface
• Wall-mounted or tabletop user control points in residential and commercial premises
• Systems requiring customizable visual themes, screen layouts and icons

Key specifications

• Display: 7-inch LCD, 1024 x 600 pixels
• Touch technology: capacitive touchscreen with swipe gesture support
• Colour depth: more than 16 million colours
• Mounting: wall or tabletop
• Input voltage: 12 V
• Dimensions: 120 mm (W) x 92 mm (D) x 14 mm (H)
• Interface: multiscreen, multilevel customizable interface with theme and wallpaper support
• Performance: upgraded processor and software for smooth navigation

How to use

Mount the INT-TSH2-B on a wall bracket or place it on a tabletop stand following installer instructions, and connect it to the system’s 12 V power supply and INTEGRA bus or control wiring as specified by the installer. Use gentle touch and swipe gestures to navigate multiscreen menus, select zones, arm or disarm the system and control building automation functions. An installer can configure themes, icons, screen order and uploaded building maps to match the controlled devices and user preferences.

Recommendations

For best performance and long-term reliability, have a certified installer configure the panel within the INTEGRA system, set appropriate screen layouts and brightness/volume levels, and ensure secure power and data connections according to SATEL installation guidelines.
