Painel para suporte Chieftec MUB-3002 3,5 polegadas preto prateado

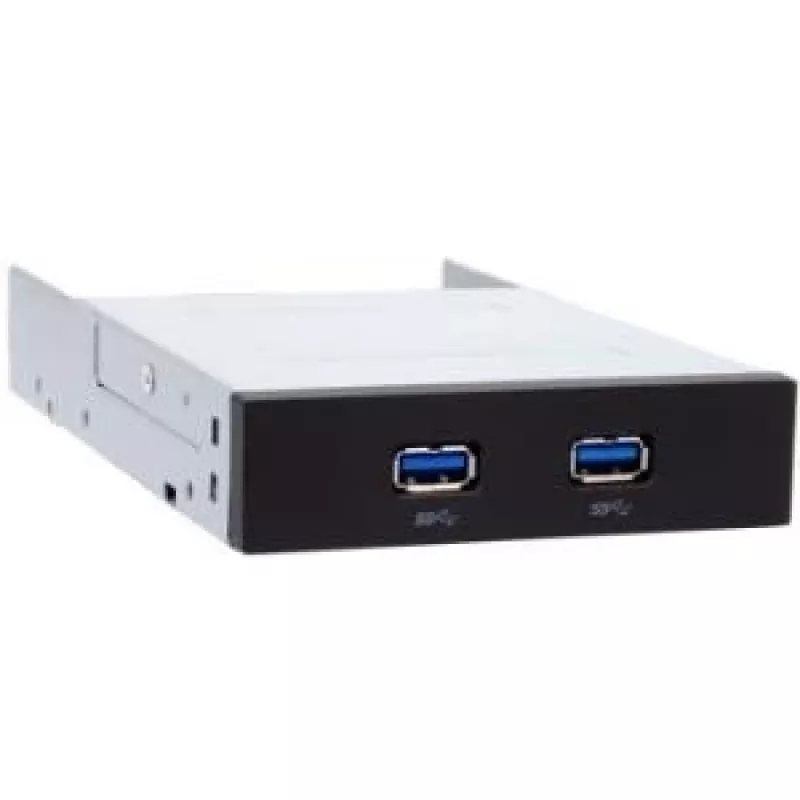

The Chieftec Carrier Panel MUB-3002 is a 3.5" front-mount accessory panel that provides two high-speed USB 3.0 ports for desktop cases with an available 3.5" bay. Its compact black-and-silver design (101 mm × 137 mm × 25 mm) fits standard 3.5" slots and enables an easy way to add external USB 3.0 connectivity to systems that lack front USB 3.0 ports.

Advantages

This carrier panel supports USB 3.0 data transfer rates up to 5 Gbit/s and is backward compatible with USB 2.0 devices. It offers plug & play installation and hot-swap capability, allowing devices to be connected or disconnected without powering down the PC. The panel is sized to fit a standard 3.5" bay and provides two external USB 3.0 ports for convenient front access.

Suitable for

• Upgrading desktop PCs that have a free 3.5" front bay
• Adding front USB 3.0 ports for faster external storage access
• Systems requiring easy plug & play external device connections

Key specifications

• Brand: CHIEFTEC
• Model / MPN: MUB3002
• EAN: 4710713239296
• Form factor: 3.5" carrier panel
• External ports: 2 × USB 3.0
• USB standard: USB 3.0 (up to 5 Gbit/s), backward compatible with USB 2.0
• Features: Plug & Play, Hot Swap
• Dimensions (W × D × H): 101 × 137 × 25 mm
• Color: Black / Silver

How to use

Turn off the PC and remove the case side panel. Insert the MUB-3002 into an empty 3.5" front bay and secure it with the appropriate screws. Connect the internal USB 3.0 cable from the panel to a free USB 3.0 header on the motherboard (or to a USB 3.0 adapter cable as required). Replace the case panel and power on the system; the ports are recognized automatically on most operating systems.

Recommendations

The panel is intended for desktop cases with an available 3.5" front bay and a compatible internal USB 3.0 header. For full USB 3.0 performance, connect to a motherboard header or adapter that supports USB 3.0; under USB 2.0 connections the speed will be limited to the lower standard.
