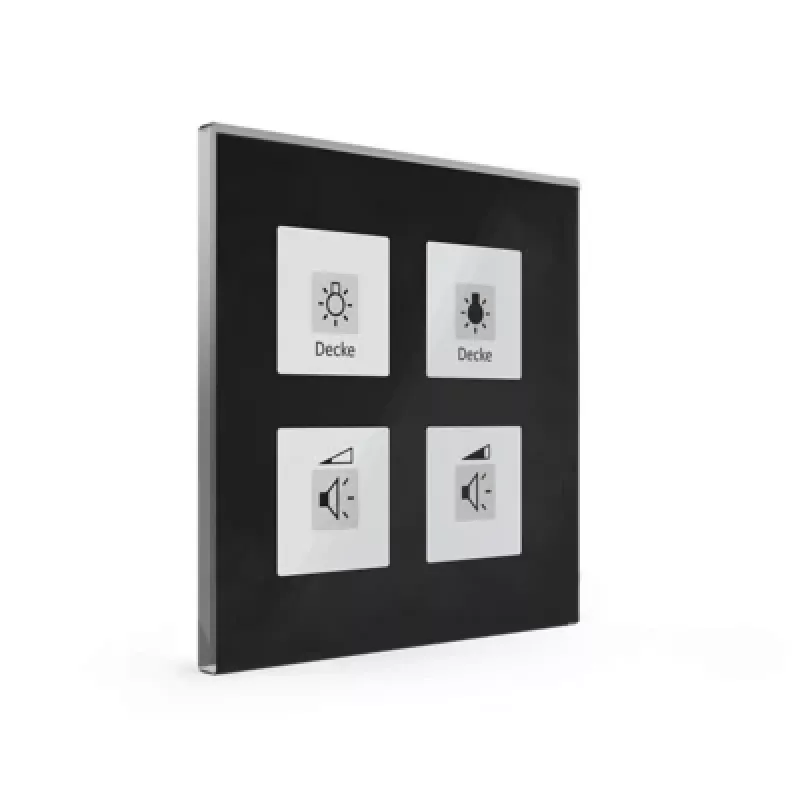

Painel tátil de vidro MDT BE-GTT4S.01 Glass-Touchpanel Plus 4 teclas com sensor de temperatura, preto

In a modern smart home or office, the MDT BE-GTT4S.01 Glass Touch Panel Plus offers intuitive control of lighting, blinds, and HVAC directly from a sleek black glass surface. With four touch-sensitive buttons and an integrated temperature sensor, it is ideal for KNX installations where both control and climate monitoring are needed in one device.

Key specifications

• Bus system: KNX
• Number of buttons/channels: 4
• Integrated sensor: Temperature sensor
• Design: Glass touch panel
• Colour: Black
• Display/indicators: RGB status LEDs, backlight for labeling
• Special features: Proximity function, haptic feedback (vibration)
• Mounting type: Flush-mounted (standard switch box)
• Power supply: KNX bus
• Material: Glass, plastic
• Functions supported: Switching, dimming, blinds control, value transmitter, scene recall, HVAC control
• Integrated bus coupler: Yes
• Configuration software: ETS (Engineering Tool Software)
• Protection class: IP20
• Operating temperature: 0°C to +45°C
• Relative humidity: Max. 90% (non-condensing)

Why choose it

The combination of a premium glass surface, haptic feedback, and proximity detection makes this panel both elegant and user-friendly. The integrated temperature sensor adds climate monitoring without extra devices, and RGB LEDs provide clear status indication for each function.

Ideal use cases

• Smart homes requiring multi-function control from a single point
• Office meeting rooms for lighting and blind control
• Hotel rooms where guests need intuitive scene control
• KNX installations needing temperature sensing at the switch location

Good to know

The panel is powered directly from the KNX bus, eliminating the need for an additional power supply. It is configured using ETS software, standard for KNX projects. The flush-mounted design fits standard switch boxes, and the black glass finish complements modern interiors.
