Panasonic DMW-XLR1EC adaptador de microfone XLR para câmaras Lumix

Record pristine 96 kHz/24-bit LPCM audio directly from your Lumix camera’s hot shoe with the Panasonic DMW-XLR1EC. This dual-channel XLR adapter bypasses noisy analog preamps, delivering broadcast-quality sound for filmmakers and content creators who demand studio-grade performance on location.

Overview

The DMW-XLR1EC transforms compatible Lumix mirrorless cameras into professional audio recording platforms. It features two 3-pin XLR inputs for microphones, mixers, or line-level sources, with per-channel switches for MIC, LINE, or MIC+48V phantom power. Audio is digitized internally and sent to the camera via the digital hot shoe, preserving signal integrity. Selectable sampling rates of 48 kHz or 96 kHz and bit depths of 16-bit or 24-bit ensure compatibility with various production workflows. A 3.5mm stereo headphone jack allows real-time monitoring with dedicated volume control.

What stands out

• Two XLR inputs with independent gain dials (-12 dB to +8 dB) for precise level matching.
• Selectable +48V/+24V phantom power to drive condenser microphones.
• High-pass filter at 80 Hz or 160 Hz to eliminate rumble and handling noise.
• Digital hot shoe connection preserves signal integrity—no analog conversion loss.
• Compact, lightweight design powered entirely by the camera; no batteries required.
• Compatible with Panasonic Lumix GH5, GH5S, G9, S1, S1R, S1H, BGH1, BS1H, and GH6.

Technical details

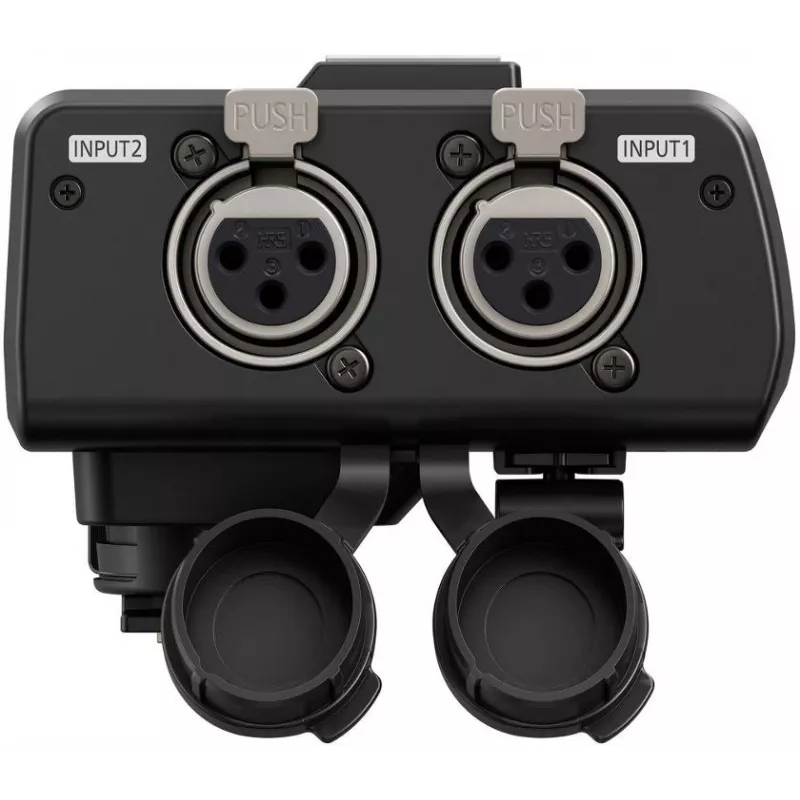

• Input Connectors: 2 x XLR 3-pin Female
• Output Interface: Digital Hot Shoe
• Phantom Power: +48V / +24V (Selectable)
• Audio Recording Channels: 2
• Audio Format: LPCM (Linear Pulse Code Modulation)
• Sampling Frequency: 48 kHz / 96 kHz (Selectable)
• Bit Depth: 16-bit / 24-bit (Selectable)
• Gain Control Range: -12 dB to +8 dB (per channel)
• High-Pass Filter: Yes (160 Hz / 80 Hz / OFF)
• Input Level Selection: MIC / LINE / MIC+48V
• Headphone Output: 3.5mm Stereo Mini Jack
• Power Source: Camera Hot Shoe
• Mounting Type: Hot Shoe

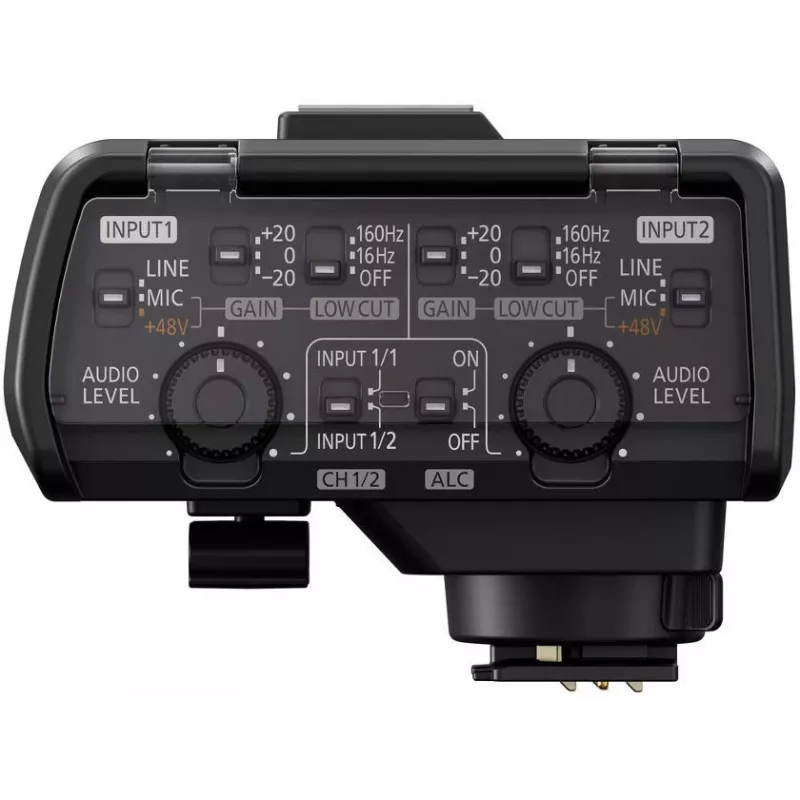

• Controls: Independent Gain Dials, Level Switches, Low Cut Switches, Headphone Volume
• Frequency Response: 20 Hz - 20 kHz

Our verdict

The Panasonic DMW-XLR1EC is an essential tool for Lumix shooters who refuse to compromise on audio quality. Its seamless integration, robust feature set, and pristine digital signal path make it a top choice for professional video production.
