Par de conectores S CONN MAXIMUM CONNECTIVITY SC02-XT60 XT60 (macho e fêmea) 60A alta corrente contactos dourados para modelos RC, drones, baterias

The SC02-XT60 from S CONN MAXIMUM CONNECTIVITY delivers a complete XT60 connector pair with a 60 A continuous current rating, making it a dependable choice for high-current RC and hobby applications. Unlike generic connectors, this pair uses gold-plated brass contacts and high-temperature nylon housings for low resistance and reliable performance under load.

Highlights

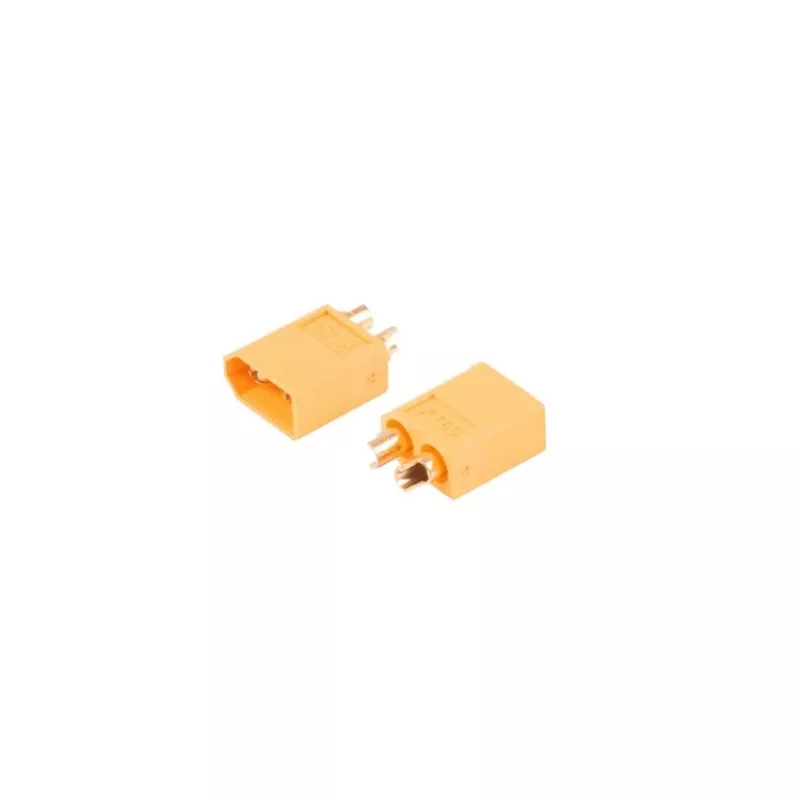

• XT60 connector pair: one male plug and one female socket
• Rated for 60 A continuous and 90 A peak current
• Gold-plated brass contacts ensure low resistance and corrosion resistance
• High-temperature nylon housing withstands demanding conditions
• Solder connection for secure, permanent wiring
• Suitable for RC models, drones, batteries, ESCs, and chargers

In daily use

These connectors are ideal for model building, RC hobby, automotive, boat, aircraft, and helicopter applications. The XT60 design provides reverse polarity protection and a secure fit, while the solder cups accept wire up to 12 AWG. The yellow housing makes polarity identification easy during assembly.

Full specifications

• Connector type: XT60
• Gender: Male (plug) and female (socket)
• Continuous current rating: 60 A
• Peak current rating: 90 A
• Maximum voltage: 500 V DC
• Number of pins: 2
• Contact material: Gold-plated brass
• Housing material: High-temperature nylon
• Colour: Yellow
• Connection method: Solder
• Recommended wire gauge: Up to 12 AWG
• Operating temperature: -20°C to 120°C
• Quantity: 1 pair (1 male plug, 1 female socket)

Final note

With its high-current capability and robust construction, the SC02-XT60 is a practical choice for reliable power connections in demanding hobby and RC environments.
