Parafuso Fischer 568166 200 mm aço galvanizado 50 unid.

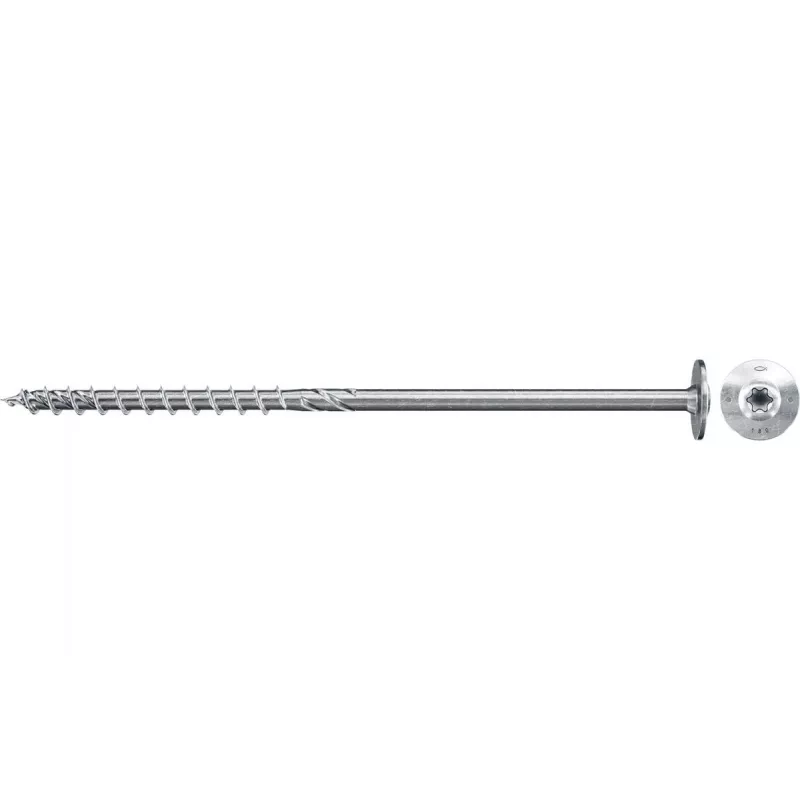

The Fischer PowerFast II FPF II-WTP BC is a wood construction screw with a flange head, TX star recess drive and partial thread, designed for timber constructions. Made of zinc-plated steel, this 200 mm screw with an 8 mm thread diameter is supplied in packs of 50 and is suitable for fastening and clamping wooden components where high head pull-through resistance and firm connections are required.

Advantages

The patented core cutter geometry enables precise milling and efficient extraction of wood dust, allowing for small edge and centre distances. A screw tip with three ribs provides fast biting and pre-milling, reducing splitting during installation. An increased thread pitch shortens installation time, while the easy-glide coating and optimised shank-miller reduce screw-in torque for smoother operation and longer battery life. The larger flange head diameter achieves higher pull-out resistance compared with countersunk head screws and improves the clamping of components.

Suitable for

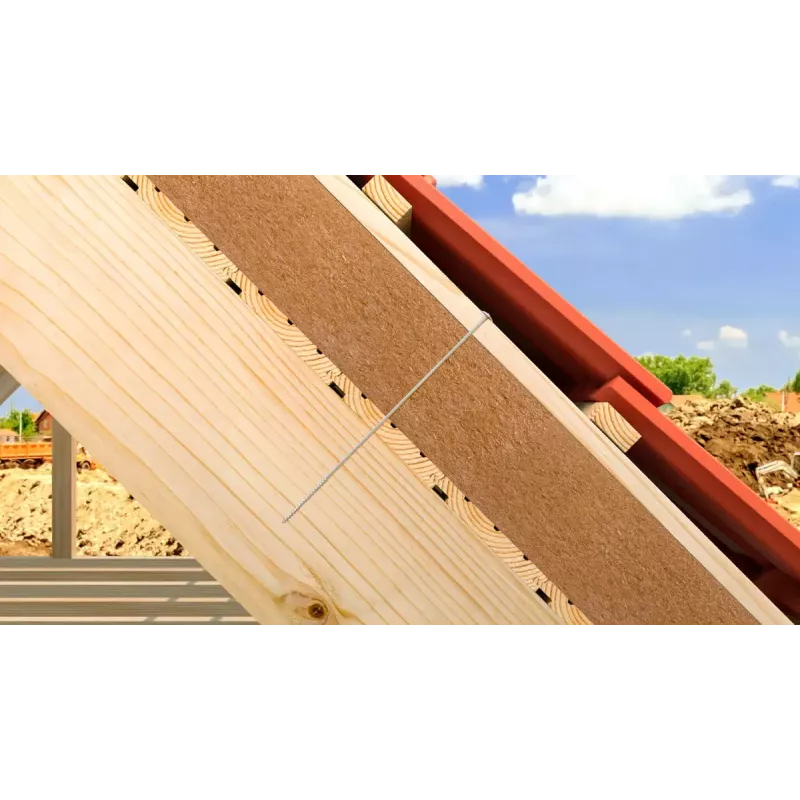

• Timber constructions and wooden frame assembly
• Connecting and clamping beams, posts and planks
• General woodworking projects requiring high pull-through resistance
• Situations where partial-thread screws are preferred for firm clamping

Key specifications

• Brand: FISCHER
• Model / MPN: 568166
• Material: Zinc-plated steel
• Length: 200 mm
• Thread diameter: 8 mm
• Head type: Flange head with TX (Torx) star recess
• Thread: Partial thread
• Pack quantity: 50 pieces
• EAN: 4048962484786

How to use

Position the screw so the unthreaded shank pulls the joined wooden elements together while the threaded portion engages the receiving timber. Use a TX/Torx driver bit that matches the star recess to avoid cam‑out. In most timber applications the PowerFast II can be driven without pre-drilling thanks to its core-cutter and three-rib tip; however, pre-drilling is recommended in very hard or splinter-prone woods or when working close to edges to further reduce splitting. Apply steady, even pressure and allow the driver to maintain consistent torque until the flange head is flush with the surface.

Recommendations

For best results use a compatible Torx bit and a cordless driver with adjustable torque. When joining thin or delicate sections, consider pilot drilling to protect the material. Store screws in a dry environment to preserve the zinc plating.
