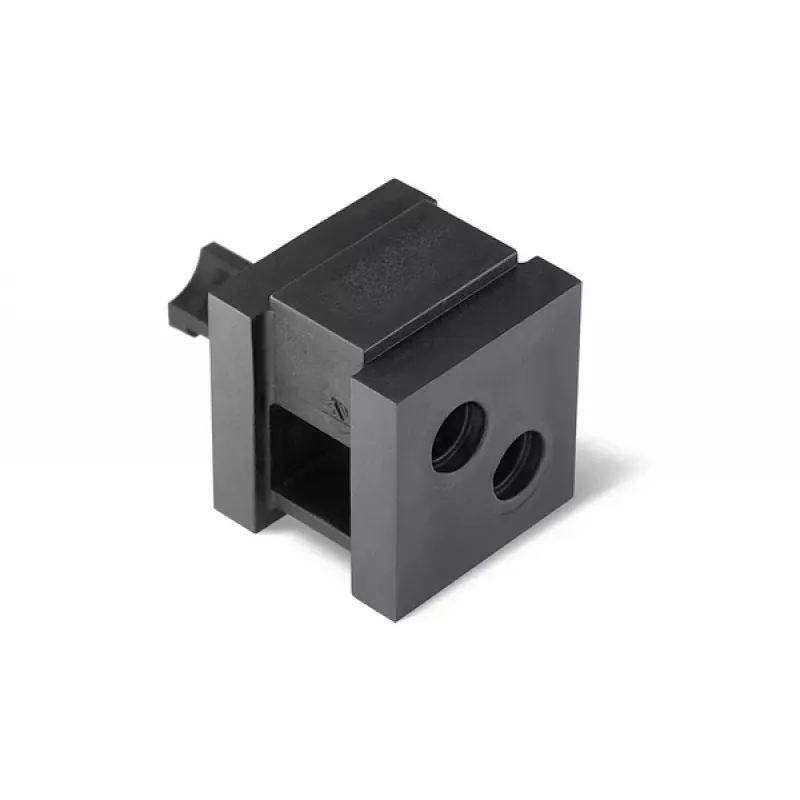

Passagem dupla HellermannTyton VP-S_/6-7, TPE isento de halogéneos, preto, 20 unid. (440-00020)

Electrical installers and panel builders use the HellermannTyton VP-S double entry grommet to seal and strain-relieve two cables passing through a single panel cutout. The black halogen-free TPE grommet fits cables from 6.0 to 7.0 mm diameter and snaps into a 10.0 mm mounting hole, providing a clean, insulated entry point in control cabinets, machinery housings, and equipment enclosures.

Key specifications

• Product type: Double entry grommet
• Material: Halogen-free thermoplastic elastomer (TPE)
• Colour: Black
• Cable diameter range: 6.0 - 7.0 mm
• Mounting hole diameter: 10.0 mm
• Panel thickness range: 0.5 - 3.0 mm
• Operating temperature: -40 °C to +100 °C
• Flammability rating: UL94 V-0
• IP rating: IP67 when correctly installed
• UV resistant: Yes
• Quantity per pack: 20 pieces

Why choose it

The grommet's double-entry design consolidates two cables into one cutout, reducing panel machining and simplifying cable management. Its halogen-free TPE construction meets strict fire safety requirements, while the wide temperature range and UV resistance ensure reliable performance in demanding environments.

Ideal use cases

• Sealing cable entries in control cabinets and junction boxes
• Providing strain relief for sensor and actuator cables
• Protecting cables in outdoor enclosures exposed to sunlight
• Insulating cable passages in machinery and equipment housings

Good to know

The grommet installs without tools by pressing it into the pre-punched or drilled hole. Its flexible TPE body accommodates slight variations in cable diameter while maintaining a secure seal. For best results, ensure the panel thickness is within the specified range.
