Passagem individual HellermannTyton VP-L 19-20, TPE isento de halogéneos, preto 440-00027

With an IP67 protection class when installed, this single grommet seals cable entry points against dust and temporary immersion.

Overview

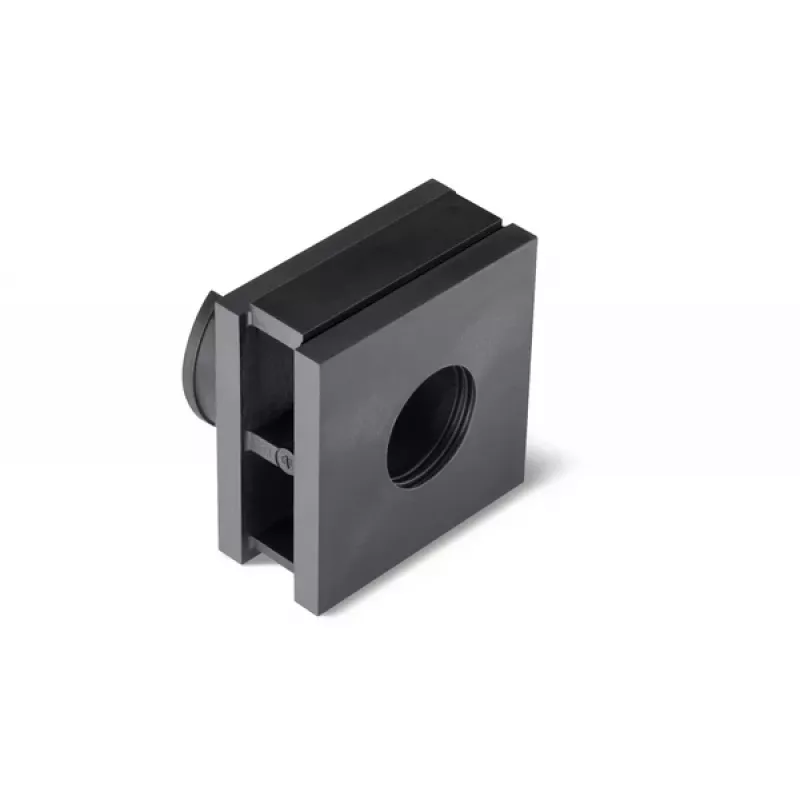

The HellermannTyton VP-L 19-20 is a single grommet designed for cable diameters from 19.0 to 20.0 mm. It fits a 25.0 mm mounting hole and accommodates panel thicknesses between 1.0 and 4.0 mm. The black thermoplastic elastomer (TPE) body is halogen-free and meets UL94 V0 flammability requirements.

What stands out

• Halogen-free TPE material reduces toxic smoke in fire conditions.
• IP67 sealing protects against dust and temporary immersion.
• Wide operating temperature range from -40 °C to +120 °C.
• UL94 V0 flammability rating for enhanced fire safety.

Technical details

• Series: VP-L
• Product type: Single grommet
• Material: Thermoplastic elastomer (TPE)
• Colour: Black
• Cable diameter range: 19.0 - 20.0 mm
• Mounting hole diameter: 25.0 mm
• Panel thickness range: 1.0 - 4.0 mm
• Outer diameter: 30.0 mm
• Inner diameter (uncompressed): 18.0 mm
• Operating temperature range: -40 °C to +120 °C
• Flammability rating: UL94 V0
• Protection class (installed): IP67
• RoHS compliant: Yes
• REACH compliant: Yes

Our verdict

A reliable halogen-free grommet for demanding cable management applications requiring IP67 sealing and wide temperature tolerance.
