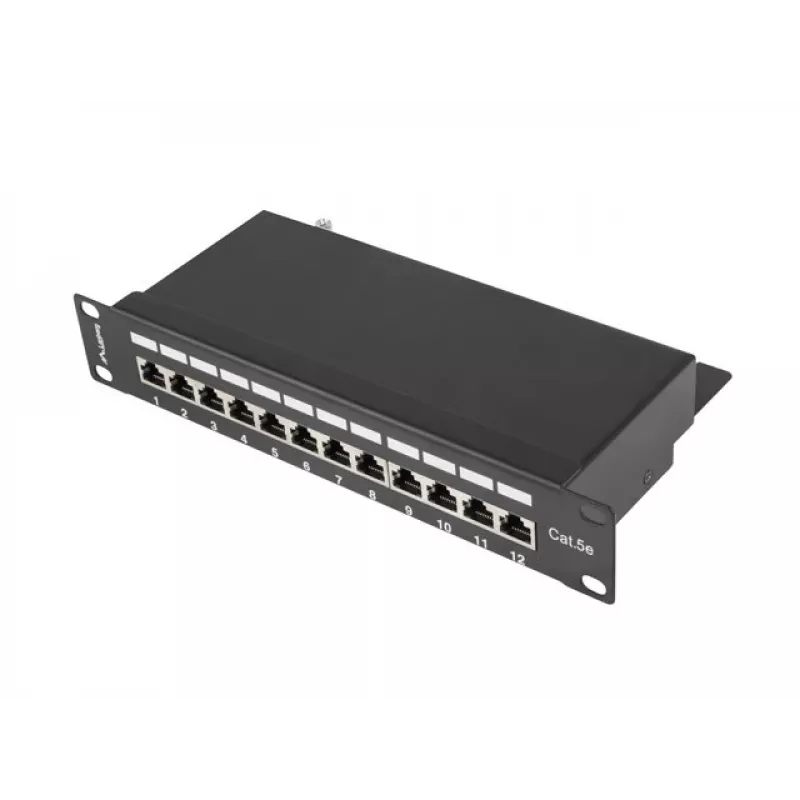

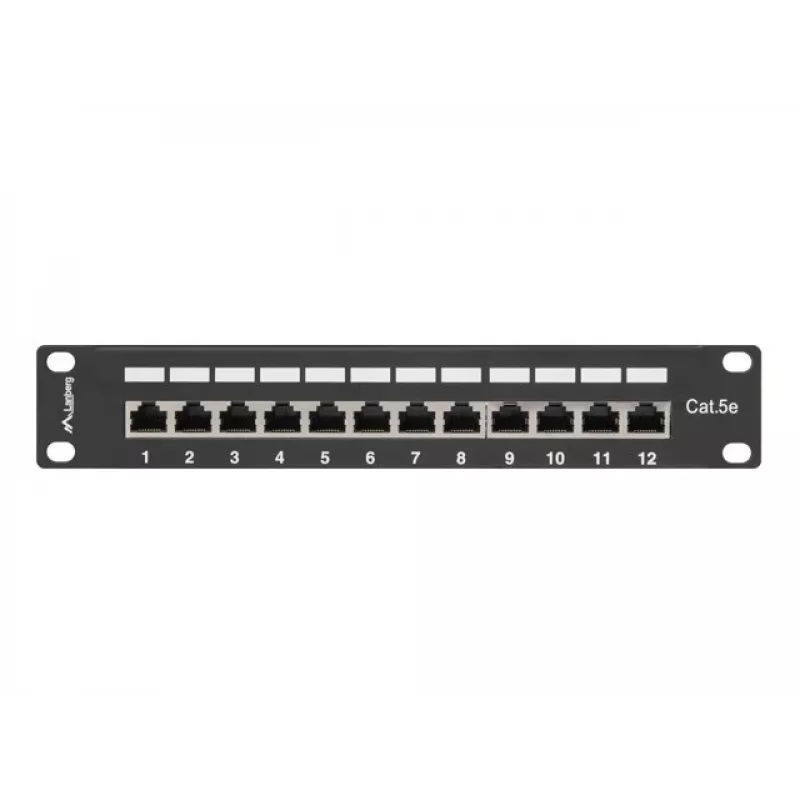

Patch panel 1U Lanberg PPF5-9012-B

The Lanberg PPF5-9012-B is a 1U rack-mount patch panel intended for main and secondary distribution points in fast telecommunications systems. It is a passive component of structured cabling used to terminate and organise twisted-pair cables inside 10" rack cabinets. The panel is made of durable metal, measures 215 mm × 44.5 mm × 130 mm and is finished in black.

Advantages

The panel provides 12 shielded RJ-45 ports compliant with category 5e and supports Cat5/Cat5e cabling. It uses IDC/LSA type connectors for quick and reliable termination, enabling fast installation and tidy cable management. Its 1U size fits standard 10" rack cabinets and helps maintain an organised, serviceable network rack.

Suitable for

• Network patching in small and medium office racks
• Termination and distribution in telecommunications rooms
• Cable management for Cat5/Cat5e twisted-pair installations

Key specifications

• Model: Lanberg PPF5-9012-B
• Form factor: 1U, rack-mountable (10" cabinets)
• Ports: 12 × shielded RJ-45 (Cat5e)
• Connectors: IDC/LSA termination
• Supported cable types: Cat5, Cat5e
• Material and colour: Metal, black
• Dimensions (W×H×D): 215 × 44.5 × 130 mm
• Weight: 0.88 kg

How to use

Mount the patch panel into a standard 10" rack cabinet occupying 1U of rack space. Terminate each twisted-pair cable to the IDC/LSA connectors according to the chosen wiring standard (T568A or T568B), then insert network cables into the shielded RJ-45 ports. Ensure proper grounding when using shielded cables and tidy cables with cable ties or organisers to maintain airflow and accessibility.

Recommendations

For best performance, use Cat5e-rated cabling and maintain correct grounding for shielded installations. Verify terminations with a cable tester after installation and label ports for easier maintenance.
