Patch panel 24 portas não blindado CAT5E ACT PP1001

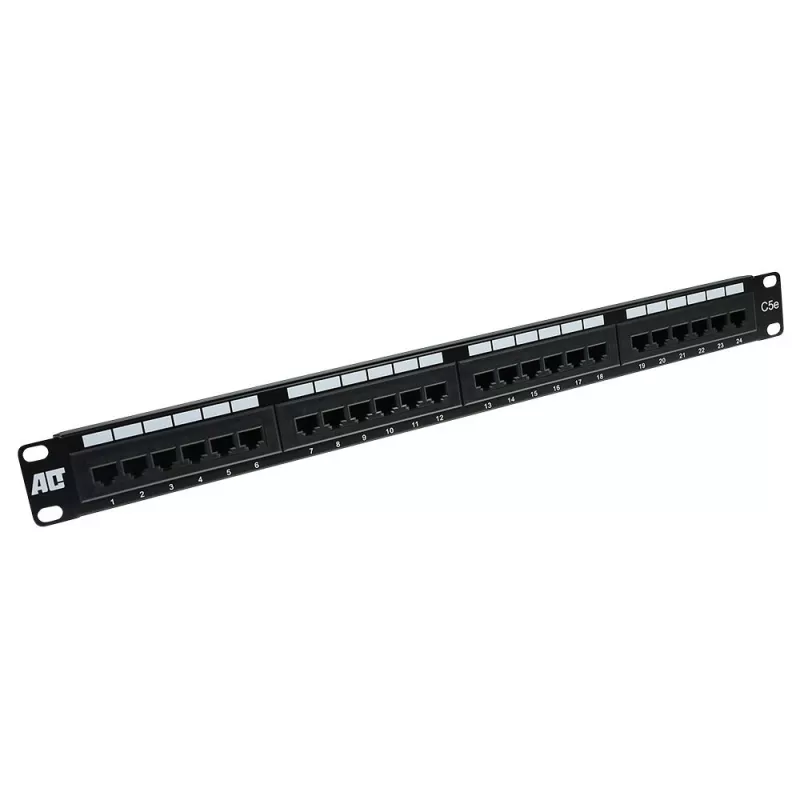

The ACT Patch Panel 24-ports unshielded CAT5E (model PP1001) is a 24-port RJ-45 patch panel in black, designed to organise and centralise Ethernet terminations for small office and home networks. The unshielded CAT5E design supports standard twisted-pair installations and provides a tidy, rack-mountable solution for cable management.

Advantages

This patch panel provides 24 RJ-45 ports for straightforward port mapping and network expansion. It is compatible with IDC 110 and Krone tools for quick and reliable punch-down termination. Colour-coded universal labels support both T568A and T568B wiring schemes to simplify wiring and reduce installation errors.

Suitable for

• Small office and home network racks
• Structured cabling installations using unshielded CAT5E cabling
• Network patching and port consolidation in telecom cabinets

Key specifications

• Brand: ACT
• Model: PP1001
• Ports quantity: 24
• Connector type: RJ-45 (IDC punch-down on rear)
• Category: Unshielded CAT5E
• Product colour: Black
• Compatibility: IDC compatible with 110 & Krone tool; labels for T568A and T568B

How to use

Mount the panel in a standard 19-inch rack or cabinet. Route network cables to the rear IDC termination blocks and terminate each conductor using a compatible 110 or Krone punch-down tool according to the chosen wiring scheme (T568A or T568B). After termination, connect patch cords to the front RJ-45 ports to link devices to the network switch or router.

Recommendations

Use appropriate cable management (labels, ties, and Velcro straps) to maintain bend radii and avoid stress on terminations; verify terminations with a cable tester after installation to ensure correct wiring and performance.
