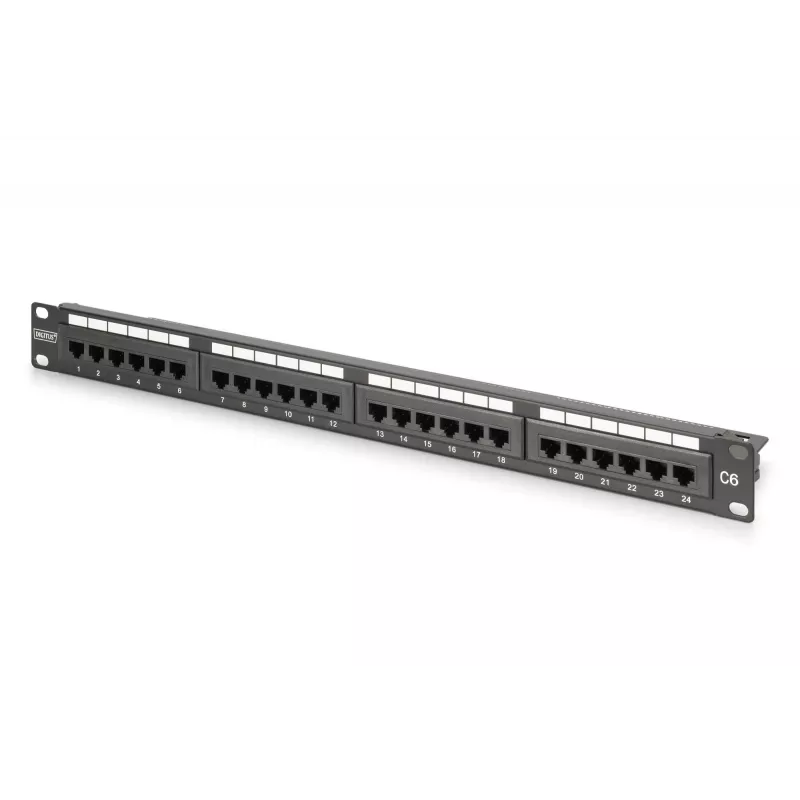

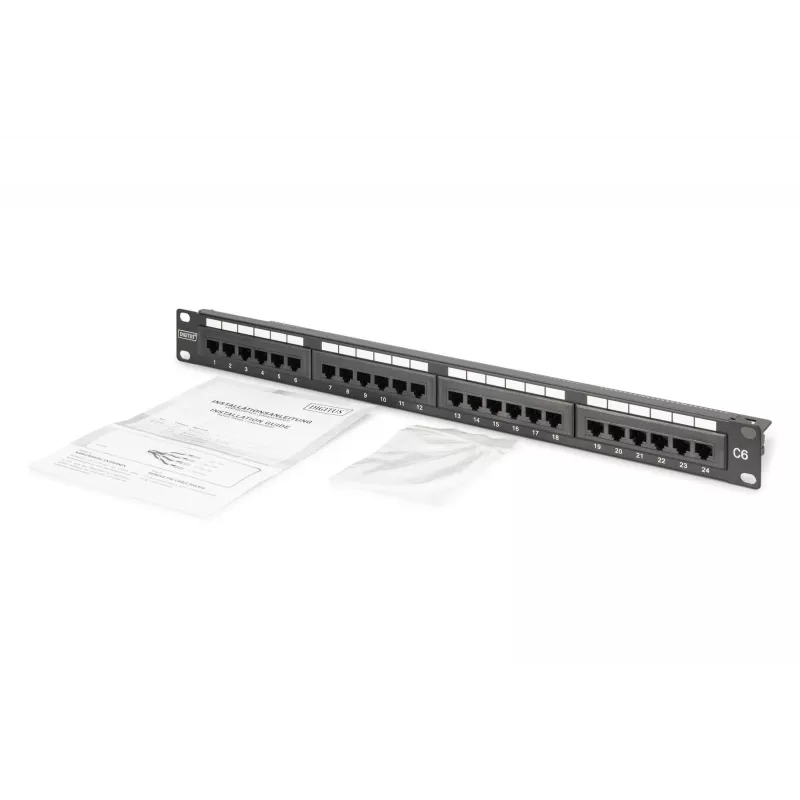

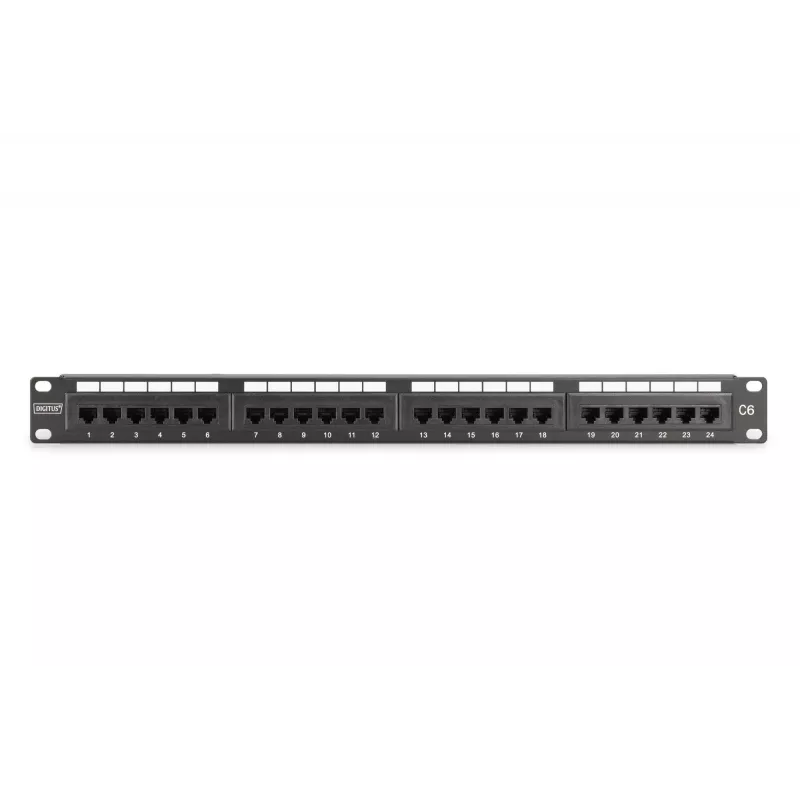

Patch panel Digitus CAT 6 não blindado DN-91624U-CR

The DIGITUS® unshielded CAT6 patch panel supports future-oriented standards and high-end build quality for network installations. Available in 16- and 24-port (1U) or 48-port (2U) versions, it is designed to meet Link Performance Class E up to 250 MHz and complies with ISO/IEC 11801 and EN 50173. The panel is UL certified and features a 1.5 mm galvanized cold-rolled steel housing suitable for 19" rack mounting.

Advantages

The CAT6 patch panel provides reliable 1GBase-T and PoE support for structured cabling environments, with color-coded LSA termination compatible with EIA/TIA 568 A and B standards. Robust mechanical construction, nickel-plated contacts with gold plating, and standardized components ensure consistent electrical performance and long service life. Its rack-compatible design and quick cable latches simplify installation and cable management.

Key specifications

• Application areas: up to 250 MHz, 1GBase-T, PoE
• Standards: ISO/IEC 11801 (3rd Ed.), EN 50173-1, EIA/TIA 568-C
• Mounting: suitable for 483 mm (19") rack mounting
• Connectors: RJ45 sockets, 8P8C

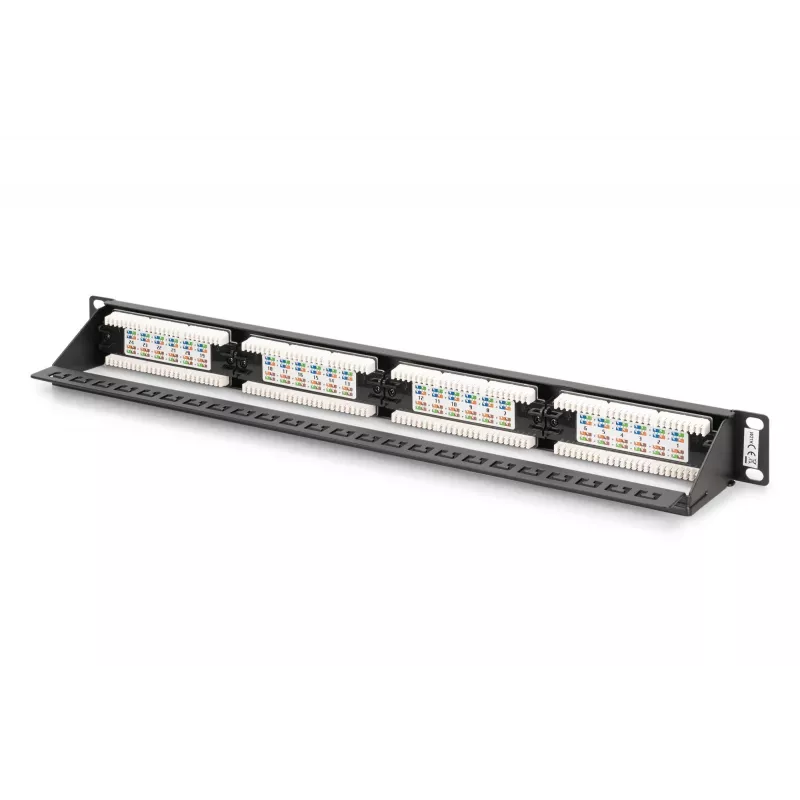

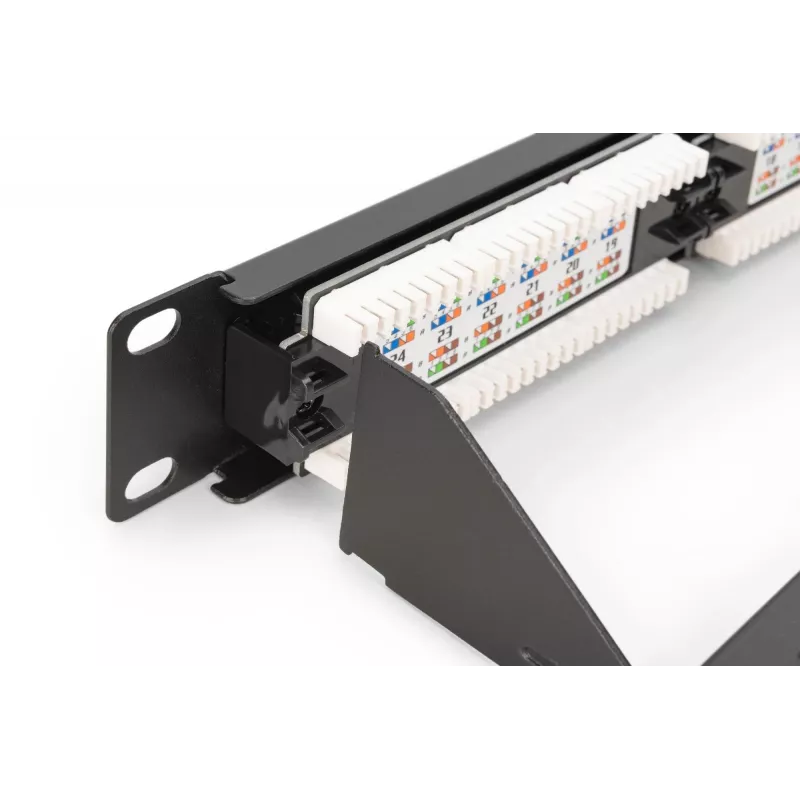

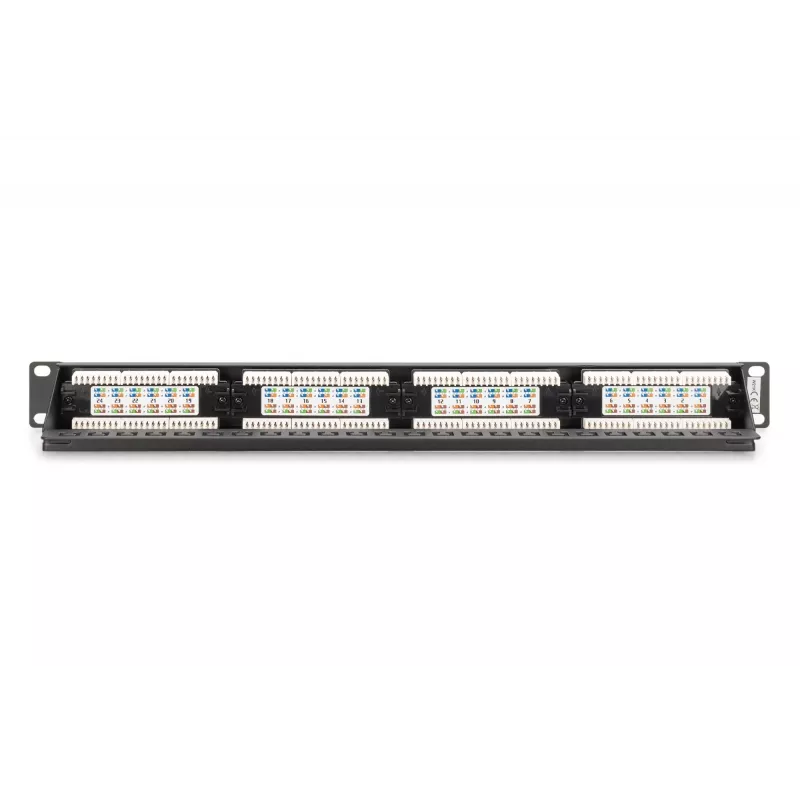

• Cable termination: LSA strips, color-coded for EIA/TIA 568 A & B

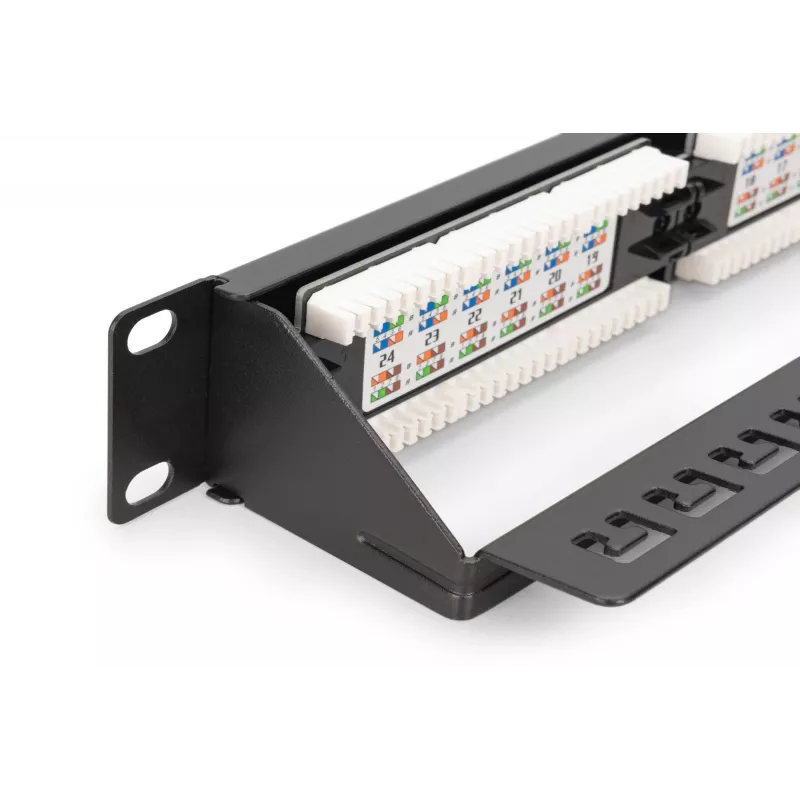

• Cable fixing: quick latches
• Housing material: 1.5 mm galvanized cold-rolled steel (EN1.4301, UNS S30400, AISI 304, LMSAD110)
• RJ45 socket material: ABS UL 94V-0
• Contact material: nickel-plated phosphor bronze with 0.5 µm gold-plated contact
• RJ45 shielding: nickel-plated bronze
• LSA cutting clamp: Krone LSA+, UL 94V-2, galvanized phosphor bronze
• Printed circuit board: FR4, UL 94V-0
• Insertion force: max. 30 N (IEC 60603-7-5)
• Tensile load: 7.7 kg between socket and plug
• Operating temperature: -20 °C to +70 °C
• Socket mating cycles: >750 (ISO/IEC 11801, IEC 60603-7-5)
• Terminal cycles: >200 (ISO/IEC 11801, IEC 60603-7-5)
• Core receptacle: 22–26 AWG solid and stranded conductors
• Insulation resistance: >500 MΩ
• Contact resistance: <20 mΩ
• Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)

How to use

Mount the patch panel in a standard 19" rack (1U for 16/24 ports, 2U for 48 ports). Prepare cables to the appropriate length and terminate each conductor on the LSA strips according to the EIA/TIA 568 A or B color code printed on the panel. Use the quick latches to secure cables and ensure reliable strain relief. Verify correct wiring and test each port for continuity and performance up to 250 MHz before placing the system into operational use. Follow local grounding practices where applicable; an earthing wire is not included.

Recommendations

For optimal performance, use CAT6-rated patch cords and ensure installation follows ISO/IEC 11801 and EN 50173 guidelines. Perform certification testing after installation to confirm compliance with Link Performance Class E and to validate PoE delivery and 1GBase-T operation.
