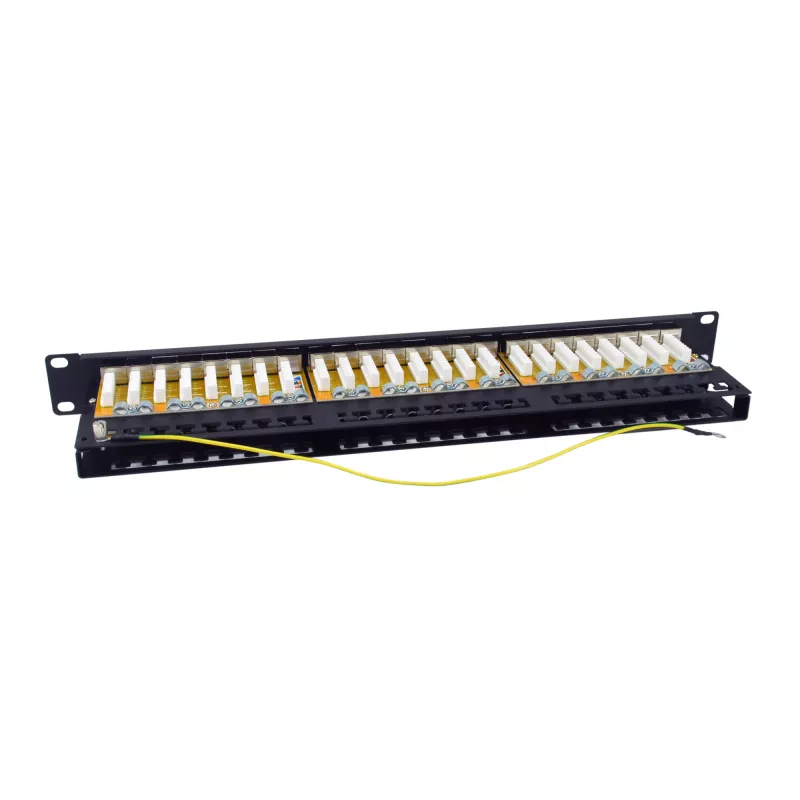

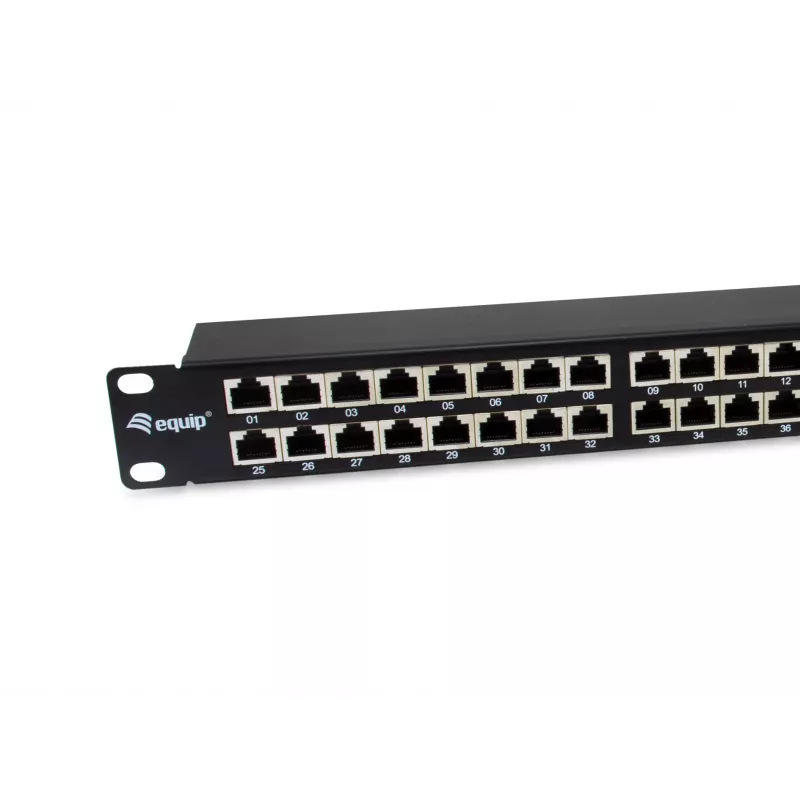

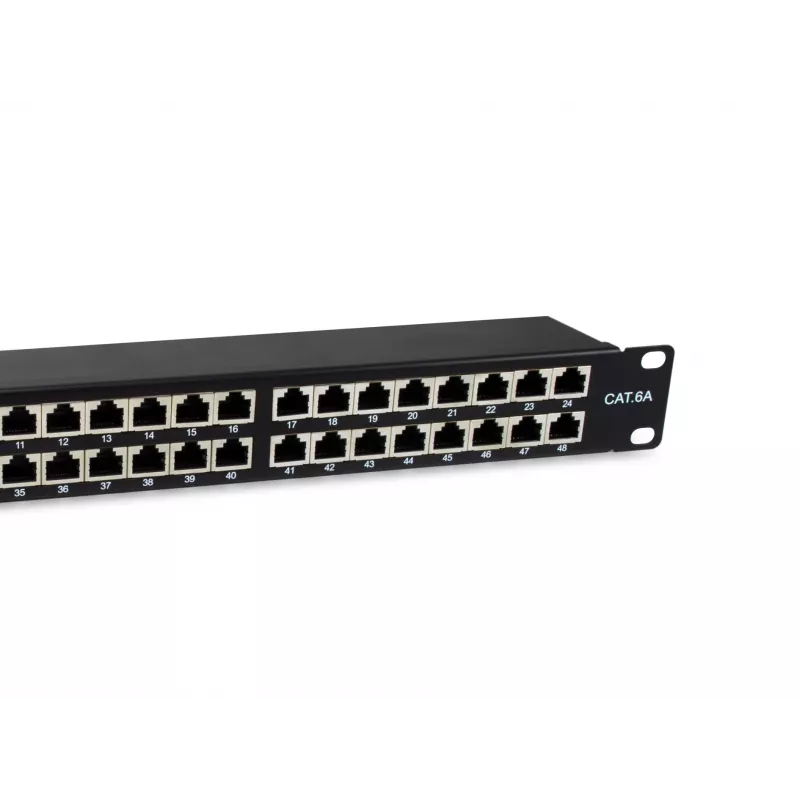

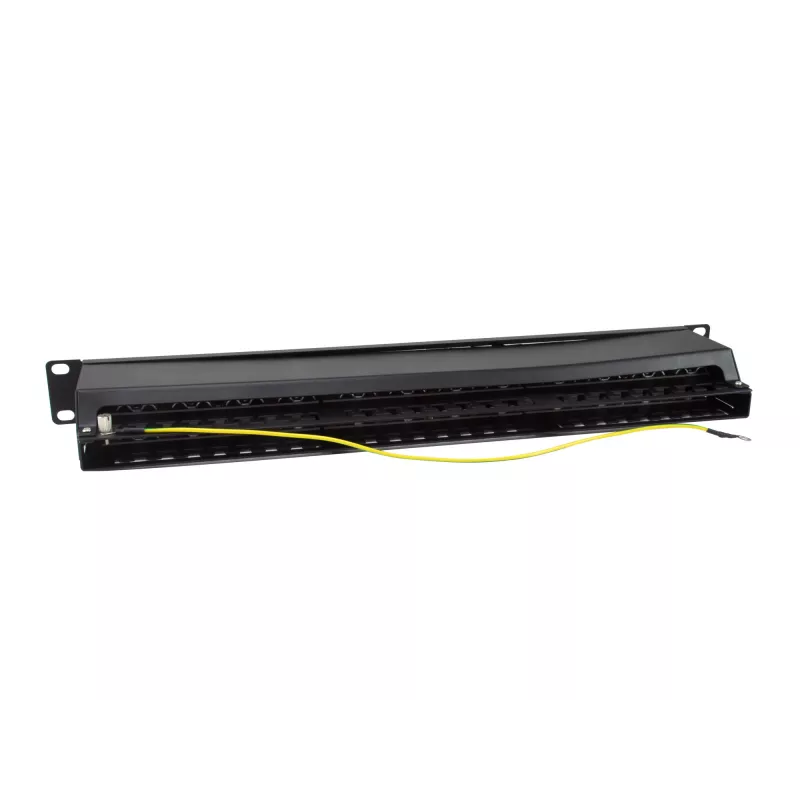

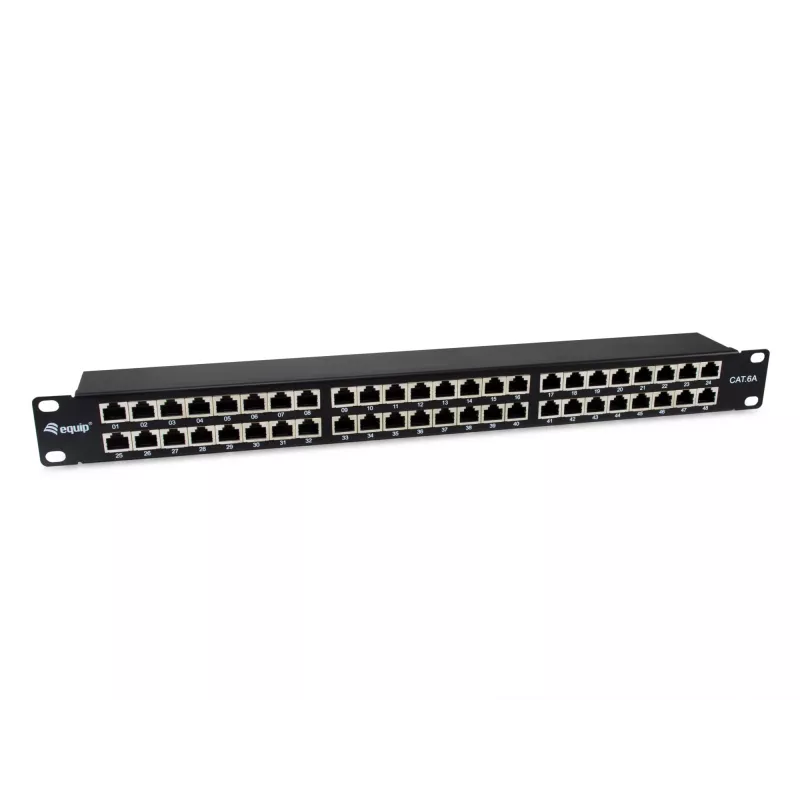

Patch panel Equip 326626 1U

The Equip 326626 patch panel is a 1U, 48-port panel engineered for 10GBase-T cabling environments. It supports 10 Gigabit Ethernet with a maximum data transfer rate of 10000 Mbit/s and is built in a durable black metal housing for rack mounting. Compliant with CE and RoHS standards, the panel has compact rack-friendly dimensions of 482.6 mm width, 110.5 mm height and 44.5 mm depth and weighs 1.73 kg, providing a space-efficient solution for structured cabling and centralised port management.

Advantages

The Equip 326626 offers high-density termination with 48 ports in a 1U form factor, optimising rack space and simplifying patching and cable management. Metal construction enhances mechanical durability and provides stable mounting in standard equipment racks. Compatibility with 10GBase-T ensures support for high-speed Ethernet links up to 10000 Mbit/s, while CE and RoHS conformity confirms that the product meets relevant safety and environmental standards.

Suitable for

• Data centre horizontal and vertical cabling
• Enterprise network distribution panels
• Server rooms and telecom closets
• Structured cabling installations requiring 10 Gigabit Ethernet

Key specifications

• Model: Equip 326626
• Form factor: 1U
• Ports quantity: 48
• Supported technology: 10GBase-T
• Maximum data transfer rate: 10000 Mbit/s
• Material: Metal
• Product colour: Black
• Dimensions (W×H×D): 482.6 × 110.5 × 44.5 mm
• Weight: 1.73 kg
• Standards: CE, RoHS

How to use

Mount the Equip 326626 patch panel into a standard 19-inch equipment rack occupying a single rack unit (1U). Terminate category-compatible twisted-pair cables to the rear IDC or keystone positions according to cabling standards used in your installation (for example, T568A/B). Route and secure cabling to minimise strain and maintain orderly patching at the front ports. Connect patch cords from the front RJ45 ports to switches, routers or active equipment to establish network links at up to 10 Gigabit Ethernet speeds where supported by the connected devices and cabling infrastructure.

Recommendations

Use certified Category 6A or better cabling and maintain proper cable bend radius to achieve 10GBase-T performance. Label ports clearly during installation to simplify future moves, adds and changes. Ensure rack mounting is performed on appropriate rails and that grounding practices follow site safety requirements.
