Patch panel Gembird Cablexpert 1U para rack Cat5e preto

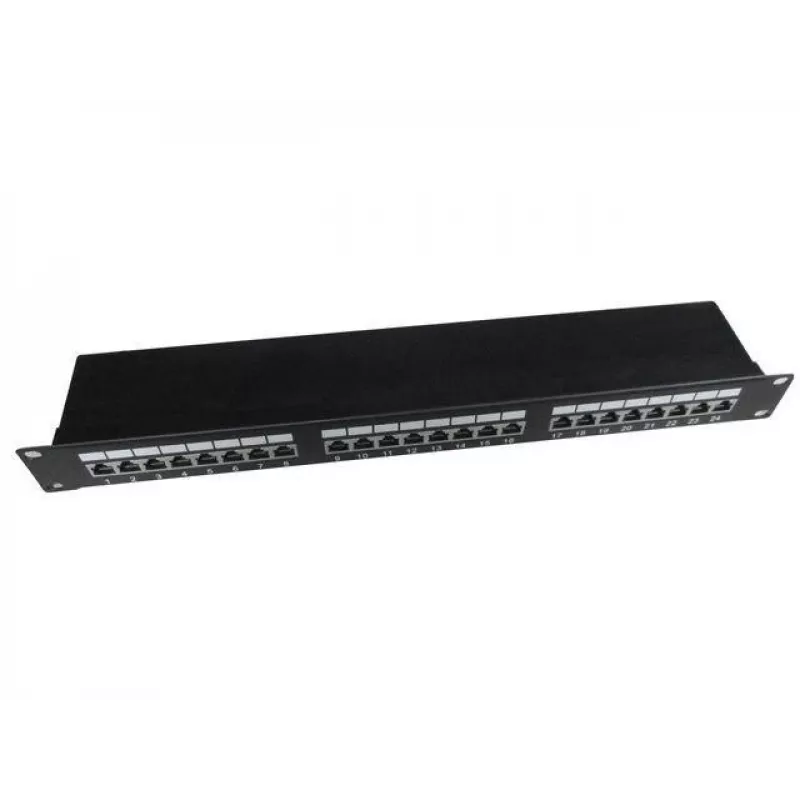

Gembird Cablexpert 1U Rack Mountable Patch Panel Cat5e Black is a 24-port 1U panel designed to organize and terminate Cat5e Ethernet cables in any standard 19" rack or cabinet. The panel measures 483 mm (width) x 45 mm (height) x 111 mm (depth) and is finished in black electrostatic powder-coated steel. It supports EIA/TIA T568B and T568A wiring configurations and includes a rear cover with a wire management bar to maintain correct cable bend radius and provide strain relief.

Advantages

This patch panel offers high-density 19" panel design with space-saving 1U height and 50 µ gold-plated contacts for reliable signal transmission. It accommodates top, bottom or side cable entry and includes a write-on designation label with a clear holder on the front for easy port identification. The steel construction and powder coating provide mechanical durability and corrosion resistance.

Suitable for

Key specifications

How to use

Mount the patch panel into a standard 19" rack or cabinet at the desired 1U position using appropriate rack screws. Route Cat5e cables to the chosen entry point (top, bottom or side), terminate each cable following the selected EIA/TIA wiring scheme (T568B or T568A), and punch down the conductors into the IDC contacts. Secure the rear cover and wire management bar to maintain cable bend radius and provide strain relief. Label ports using the provided write-on designation label for easy identification.

Recommendations

For reliable network performance, use Cat5e certified cables and follow recommended bend radius guidelines. Ensure correct and consistent wiring scheme across your installation and avoid excessive cable tension when routing to the panel.
