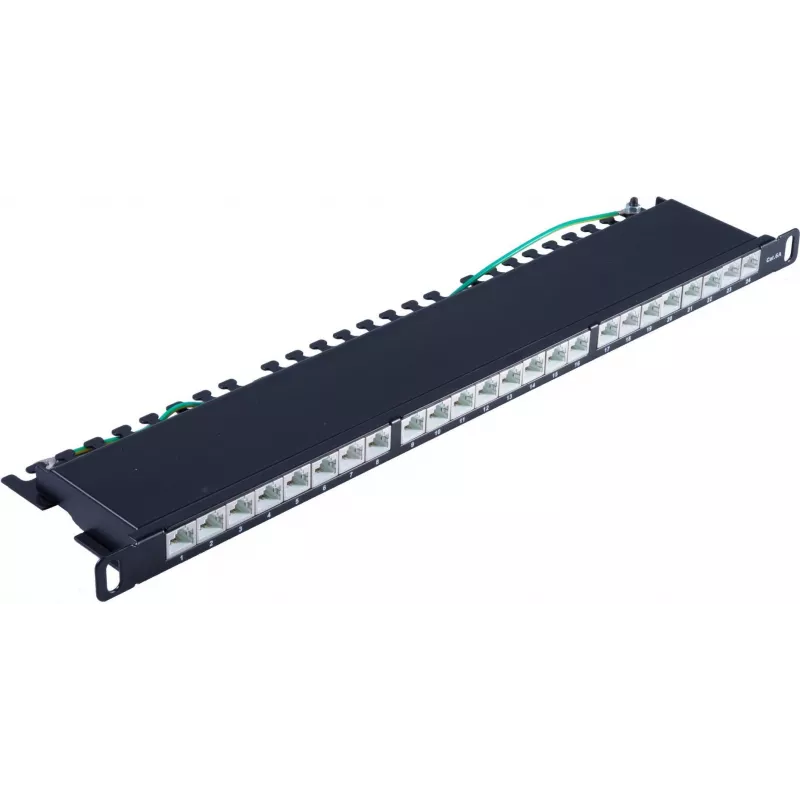

Patch Panel ShiverPeaks BS08-67052 0.5U

The ShiverPeaks BS08-67052 0.5U patch panel is a compact rack-mounted module designed for structured network cabling. It accepts Cat6a terminations and accommodates AWG22 to AWG26 conductors, providing a space-saving option for organized cable distribution in racks and enclosures. Constructed from SPCC steel with a black finish, the panel is intended for reliable mechanical protection and straightforward integration into standard 19-inch rack systems.

Advantages

This 0.5U patch panel delivers a small footprint while supporting high-performance Cat6a links, making it suitable where rack space is limited. The SPCC construction ensures mechanical durability and resistance to everyday wear in server rooms and data closets. Compatibility with AWG22–26 conductors allows use with common cable types, and the black finish provides a discreet appearance that blends into standard rack installations.

Suitable for

• Compact rack installations where space efficiency is required
• Cat6a structured cabling systems for 10 Gigabit Ethernet and high-bandwidth applications
• Data centers, server rooms, network closets and telecommunications panels
• Retrofit projects aiming to improve cable organization without extensive rack reconfiguration

Key specifications

• Form factor: 0.5U rack-mounted module compatible with 19-inch racks
• Cable category: supports Cat6a terminations
• Wire gauge compatibility: AWG22 to AWG26
• Material: SPCC steel for chassis strength and durability
• Finish: black coating for corrosion resistance and visual integration

How to use

Install the patch panel into a standard 19-inch rack occupying a half-unit (0.5U) of vertical space. Terminate Cat6a cable pairs onto the panel following the T568A or T568B wiring scheme as required by your network design. Secure cables with appropriate strain relief and routing accessories to maintain signal integrity and reduce mechanical stress on terminations. Label ports as needed for clear identification and future maintenance.

Recommendations

For optimal performance, use this panel with certified Cat6a cables and maintain proper cable management practices, including controlled bend radii and strain relief. Ensure terminations are performed with suitable tools and testers to verify continuity and NEXT performance before placing links into production.
