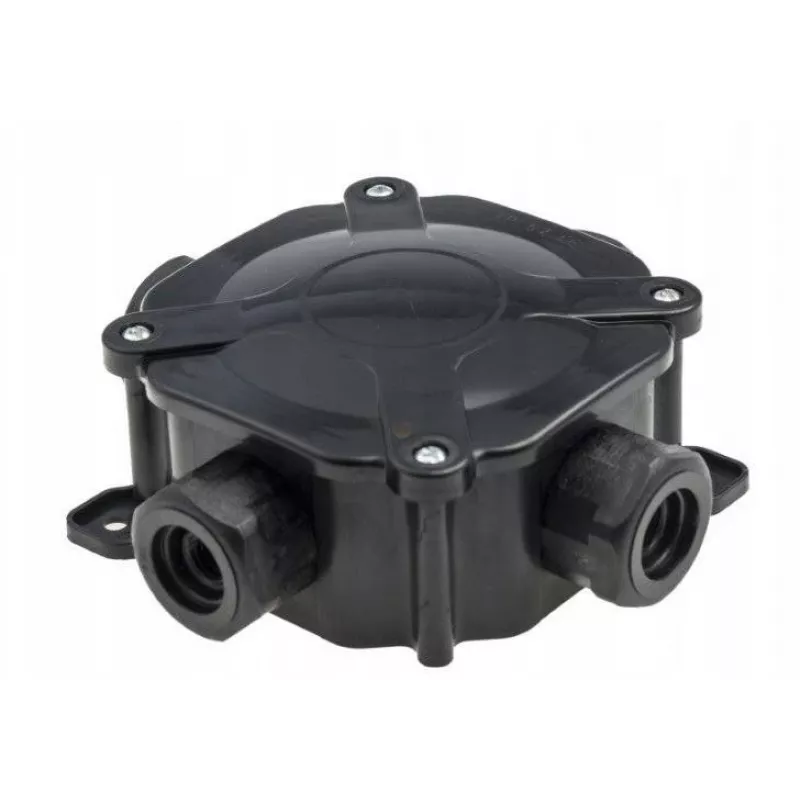

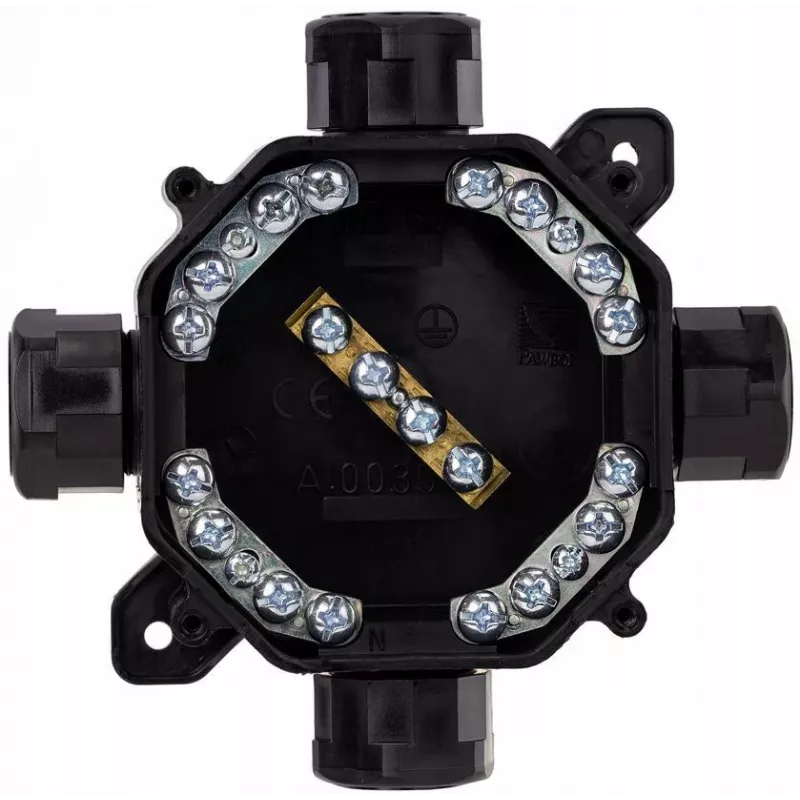

PAWBOL A.0035C Caixa hermética de sobrepor PG16, IP67 (5x4mm²), preto

The PAWBOL A.0035C is a high-quality surface-mounted hermetic junction box designed for demanding industrial and outdoor applications. With an IP67 rating and IK07 impact resistance, it provides excellent protection against dust, water, and mechanical stress. The box features a PG16 cable gland and five cable entries, each accommodating conductors up to 4 mm², making it ideal for secure and reliable electrical connections.

Advantages

This junction box offers superior environmental protection, halogen-free materials, and UV resistance, ensuring long-lasting performance in harsh conditions. The screw-on lid provides a secure seal, and the compact internal dimensions (70 x 70 x 45 mm) allow for efficient wiring.

Suitable for

• Industrial electrical installations
• Outdoor lighting and power distribution
• Automation and control systems
• Telecommunications and network infrastructure

Key specifications

• Product Type: Junction Box
• Mounting Type: Surface-Mounted
• Ingress Protection: IP67
• Impact Resistance: IK07
• Cable Gland Type: PG16
• Number of Cable Entries: 5
• Max Cable Cross-section per Entry: 4 mm²
• Colour: Black
• Material: Polypropylene (PP)
• Operating Temperature: -25°C to +60°C
• Rated Voltage: Up to 400V
• Halogen-Free: Yes
• Glow-Wire Test Temperature: 650°C
• Lid Fastening: Screw-on
• UV Resistant: Yes
• Internal Dimensions (L x W x H): Approx. 70 x 70 x 45 mm

Recommendations

For optimal performance, ensure proper cable gland tightening and use appropriate sealing gaskets. This box is suitable for both indoor and outdoor use where protection against moisture and dust is required.
