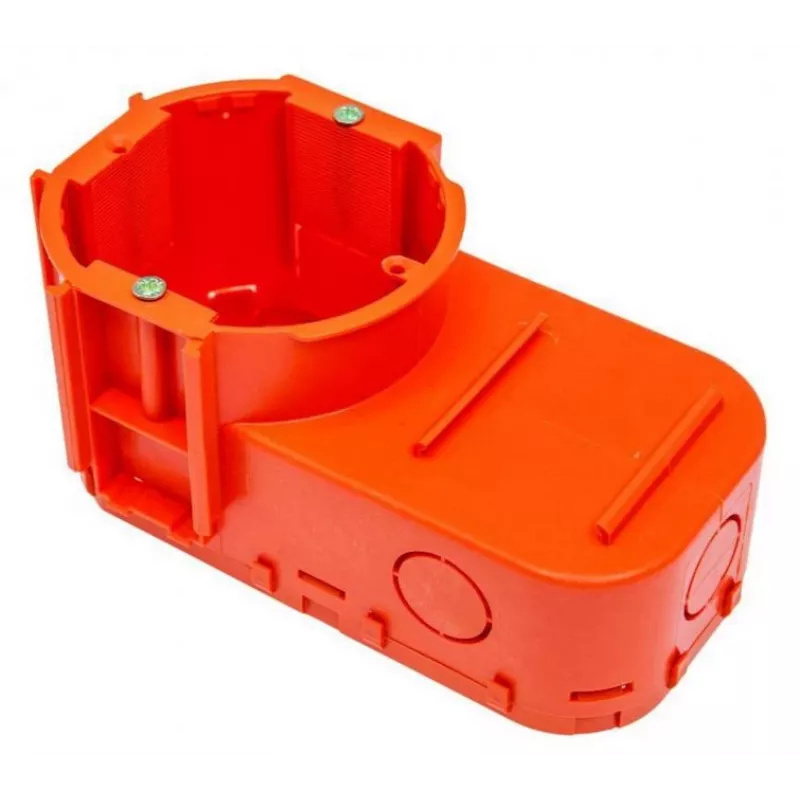

PAWBOL A.0085 Caixa de derivação embutida para eletrónica, 68 mm, laranja

Electrical installations in walls often suffer from cramped spaces and fragile housings that crack under pressure. The PAWBOL A.0085 flush-mounted junction box solves this by providing a robust, halogen-free enclosure for switches, sockets, dimmers, and electronic modules. Its 68 mm mounting diameter fits standard devices, while the shallow 35 mm depth is ideal for tight wall cavities.

Who is it for

This box is intended for electricians and DIY installers working on residential or commercial wiring projects. It suits both masonry and hollow wall installations when paired with appropriate accessories, offering flexibility across different building types.

Main features

• Round flush-mounted design with 68 mm device mounting diameter
• Overall depth of 35 mm for shallow wall cavities
• Made from halogen-free polypropylene (PP) for safety and durability
• Orange colour for high visibility during installation
• Multiple pre-punched knock-out cable entries for flexible wiring
• Horizontal and vertical combination capability for multi-gang setups
• IP20 protection rating suitable for indoor use
• Glow wire test resistance at 850 °C and self-extinguishing properties
• Complies with PN-EN 60670-1 standard

Specifications

• Brand: PAWBOL
• Model: A.0085
• MPN: A.0085
• EAN: 5901350803035
• Box type: Flush-mounted installation box
• Shape: Round
• Mounting diameter: 68 mm
• Overall depth: 35 mm
• Outer diameter: approx. 72 mm
• Material: Polypropylene (PP)
• Halogen-free: Yes
• Colour: Orange
• Protection rating: IP20
• Glow wire test: 850 °C
• Operating temperature: -5 °C to +60 °C
• Standard compliance: PN-EN 60670-1

Tips

For hollow wall installations, use appropriate fixing claws or screws. When combining multiple boxes, ensure alignment using the built-in linking features. Always de-energize the circuit before installation and follow local wiring regulations.
