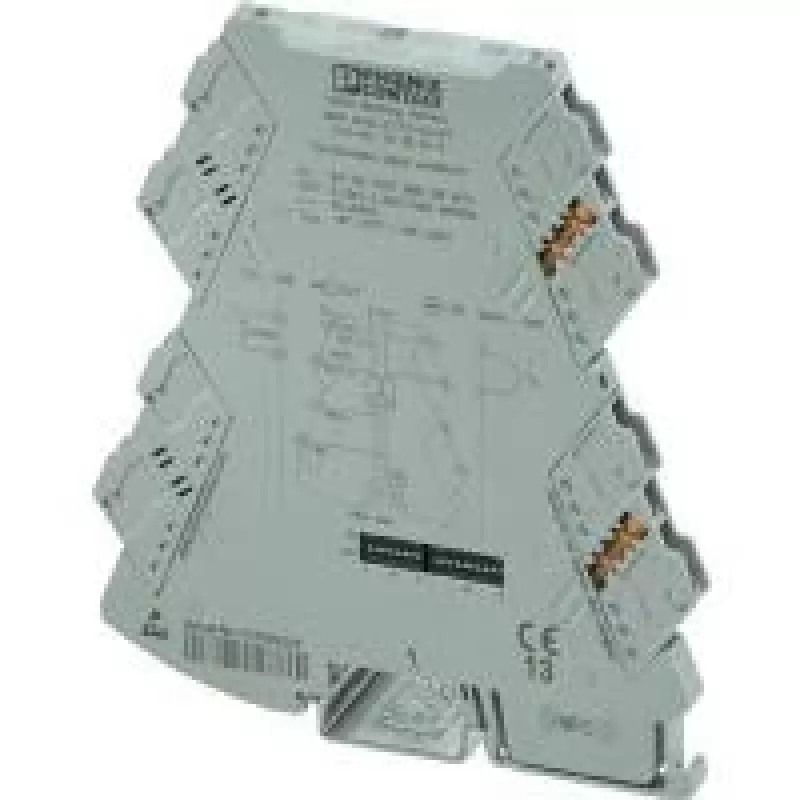

Phoenix Contact MINI MCR-2-TC-UI Transmissor de temperatura configurável 2902055

Thermocouple signals often need conversion to standard analog signals for PLC and DCS integration. The Phoenix Contact MINI MCR-2-TC-UI is a configurable temperature transmitter that converts thermocouple input into current or voltage output, with 3-way isolation and sensor break detection.

Who is it for

Industrial automation engineers and panel builders who need reliable, isolated temperature signal conversion in a compact DIN-rail module.

Main features

• Supports thermocouple types B, C, D, E, J, K, L, N, R, S, T, U, P
• Configurable output: 0-20 mA, 4-20 mA, 0-5 V, 1-5 V, 0-10 V, 2-10 V
• 3-way isolation between input, output, and supply
• Sensor break detection with LED error indication
• PC-based configuration via programming adapter
• Supply voltage: 9.6 V DC to 30 V DC
• Accuracy: < 0.2% of final value
• Response time: < 100 ms
• Mounting: DIN rail (NS 35/7.5 or NS 35/15)
• Connection: Screw terminals
• Operating temperature: -40 °C to 70 °C
• Housing material: PBT
• Power consumption: < 0.5 W at 24 V DC, 20 mA output
• Approvals: CE, UL, cULus Listed, GL, DNV, RINA, LR, BV, ABS, ATEX, IECEx

Specifications

• Input: Thermocouple
• Output: Current (0-20 mA, 4-20 mA) or voltage (0-5 V, 1-5 V, 0-10 V, 2-10 V)
• Supply voltage: 9.6 V DC ... 30 V DC
• Configuration: PC-based via programming adapter
• Isolation: 3-way
• Number of channels: 1
• Protection class: IP20
• Housing material: PBT

Tips

Use the MCR/MINI MCR-2-PRG-2 programming adapter to configure the transmitter via PC software. Ensure proper thermocouple type selection and cold junction compensation for accurate measurements.
