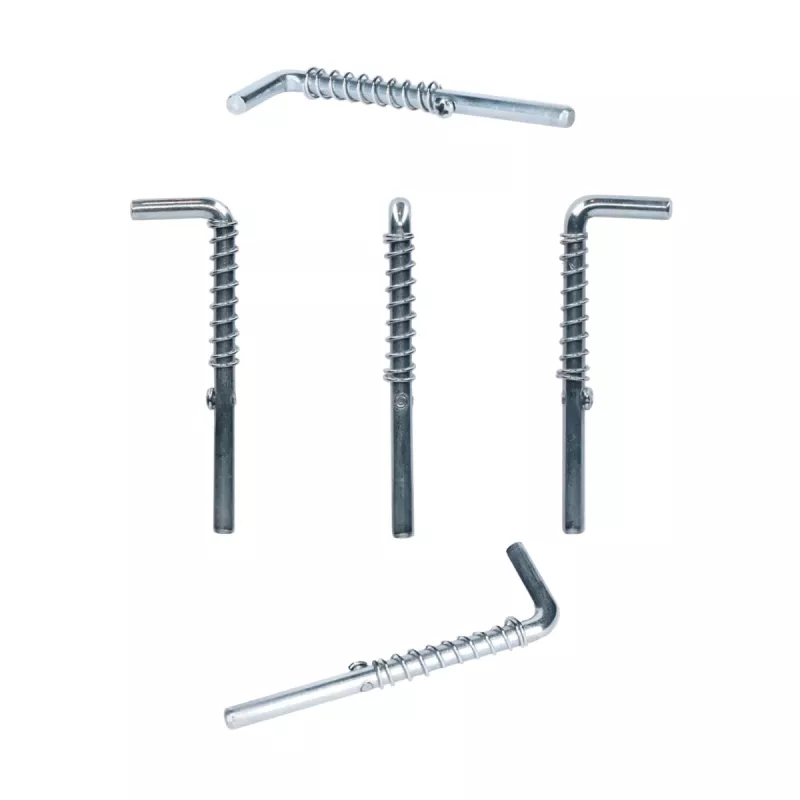

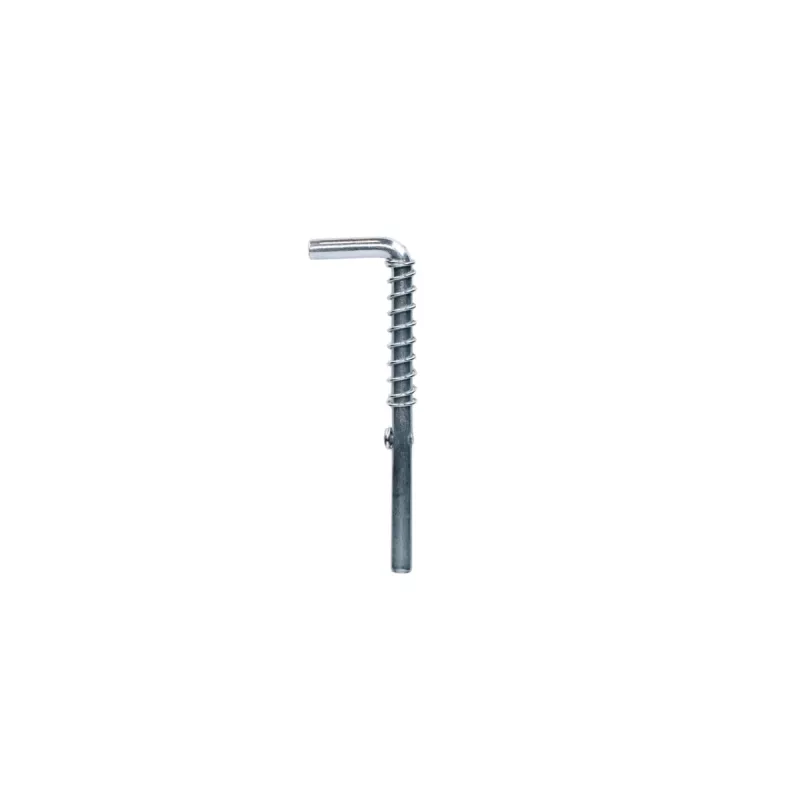

Pino de segurança de aperto rápido DSIT DS-LP com mola, 8 mm de diâmetro, 45 mm de comprimento útil, aço zincado

With an 8 mm pin diameter and a 45 mm usable length, this DSIT quick-release locking pin delivers rock-solid retention for agricultural machinery, trailers, and construction equipment. The integrated wire spring locks the pin in place instantly, yet releases with a simple pull—no tools, no fuss.

Overview

The DSIT DS-LP Sicherungsstift mit Feder (locking pin with spring) is a high-strength fastening component built from zinc-plated steel. Its spring loop handle provides a firm grip for manual push-in and pull-out operation, while the corrosion-resistant finish ensures long-term durability even in harsh environments. Designed for holes with an 8 mm diameter, this pin prevents accidental detachment of hitches, mounts, and other critical components.

What stands out

• Quick-release spring mechanism for fast, tool-free securing and releasing.
• Zinc-plated steel construction offers excellent corrosion resistance and high strength.
• Spring loop handle allows easy operation even with gloved hands.
• Reusable and durable—built to withstand repeated use in demanding applications.
• Compact overall length of approximately 65 mm fits tight spaces.

Technical details

• Pin diameter: 8 mm
• Usable length: 45 mm
• Overall length (approx.): 65 mm
• Loop diameter (approx.): 25 mm
• Material: Steel
• Surface finish: Zinc-plated
• Pin type: Quick-release locking pin
• Spring mechanism: Integrated wire spring
• Corrosion resistance: Yes
• Application area: Agricultural machinery, trailers, construction, general fastening
• Installation method: Manual push-in/pull-out
• Reusability: Yes
• Weight (per unit): 0.06 kg
• Compatibility: Designed for holes with an 8 mm diameter

Our verdict

A dependable, no-nonsense locking pin that does exactly what it should—securely and quickly. The zinc plating and robust steel make it a smart choice for anyone needing reliable fastening in the field.
