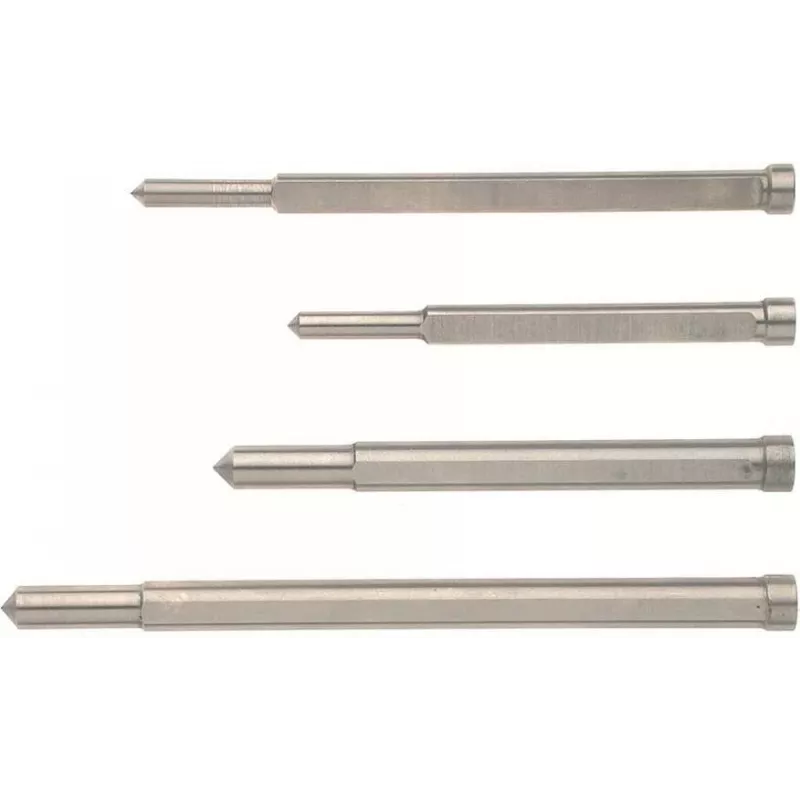

Pino ejetor BDS para brocas de coroa, versão longa, Ø 12-60 mm (ZAK100)

The BDS ZAK100 ejector pin is the long-reach solution for clearing slugs and delivering coolant in magnetic core drilling. Unlike standard pins, its extended length suits deeper annular cutters and BDS arbors, ensuring reliable ejection across a wide diameter range.

Highlights

• Long version for extended reach in deep drilling applications
• Compatible with annular cutters from 12 to 60 mm diameter
• High-grade tool steel construction for industrial durability
• Corrosion-resistant finish for long service life
• Designed for BDS magnetic core drilling machines

In daily use

This ejector pin is essential for efficient core drilling. It ejects the metal slug after each cut and supplies coolant to the cutting edge, reducing heat and extending cutter life. The 100 mm overall length provides extra clearance for deeper cuts, while the 6.35 mm pin diameter fits standard BDS arbors.

Full specifications

• Product type: Ejector pin
• Brand compatibility: BDS Maschinen
• Compatible annular cutter diameter range: 12 - 60 mm
• Compatible annular cutter cutting depth: 30 mm, 55 mm
• Pin diameter: 6.35 mm (1/4 inch)
• Overall length: 100 mm
• Material: High-grade tool steel
• Function: Core ejection, coolant supply
• Application: Magnetic core drilling machines
• Arbor compatibility: BDS arbors (e.g., for Weldon 19/32 shanks)
• Design: Long version
• Corrosion resistance: Yes
• Durability: Industrial grade
• Unit of sale: 1 piece
• Series: ZAK

Final note

For reliable slug ejection and coolant delivery in demanding core drilling tasks, the BDS ZAK100 is a dependable choice.
