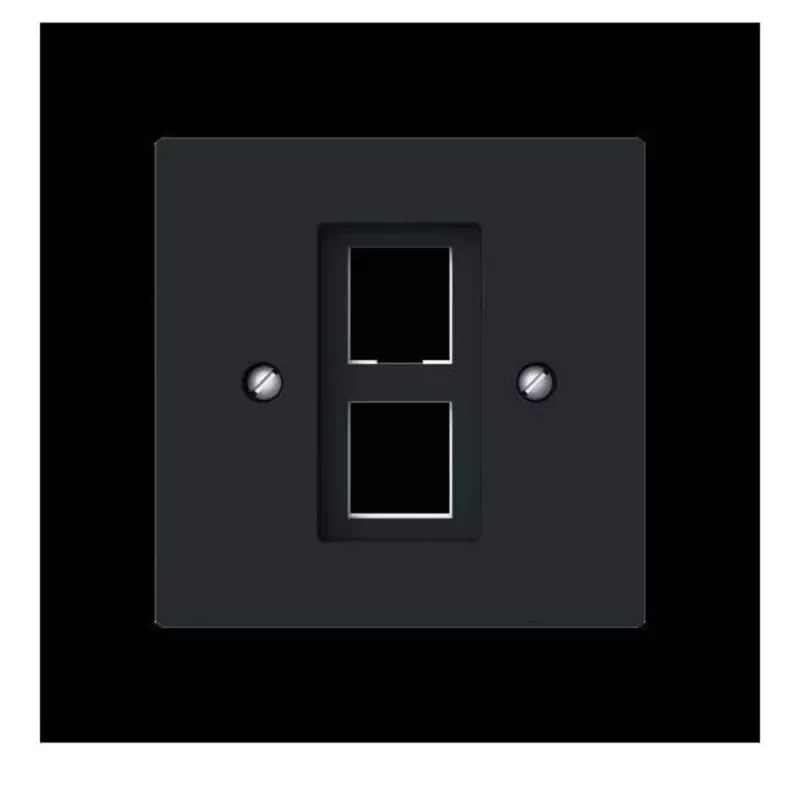

Placa central com anel de suporte Modular Jack Busch-Jaeger 2561-02-45M 2CKA001753A9929

Network installations often require a clean, professional finish for data outlets. The Busch-Jaeger Central Plate with Support Ring Modular Jack 2561-02-45M provides a reliable mounting solution for modular jack inserts, such as RJ45 data outlets, ensuring a secure and tidy connection point in any building.

Who is it for

This central plate is ideal for electricians, network installers, and homeowners who need to mount modular jacks in standard wall boxes. It suits both residential and commercial environments where a neat, durable data outlet is required.

Main features

• Central plate with integrated support ring for modular jack inserts
• Compatible with standard modular jack inserts (e.g., RJ45)
• Colour: Studio white matt (approx. RAL 9010)
• Material: Thermoplastic, halogen-free
• Surface finish: Matt
• Mounting type: Screw fastening with support ring
• Single module design for one jack
• UV-resistant and impact-resistant (IK05)
• Operating temperature: -5 °C to +45 °C

Specifications

• Product type: Central plate with support ring
• Colour: Studio white matt
• Material: Thermoplastic
• Surface finish: Matt
• Mounting type: Screw fastening
• Halogen-free: Yes
• Protection class: IP20
• Impact resistance: IK05
• UV-resistant: Yes
• Operating temperature: -5 °C to +45 °C
• Storage temperature: -25 °C to +55 °C
• Number of modules: 1
• Design series: Universal
• Type of fastening: Clamp/screw fastening
• Suitable for: Data communication, network installations

Tips

Pair this central plate with a compatible modular jack insert and a suitable frame from the Busch-Jaeger range for a complete, uniform look. Ensure the wall box depth is adequate for the insert and wiring.
