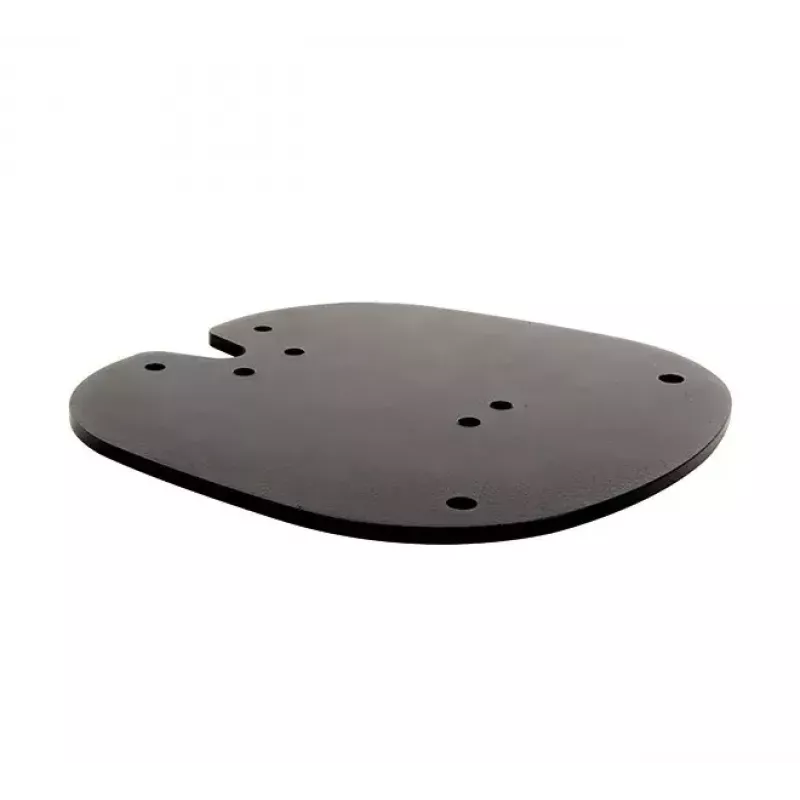

Placa de base para fixação ao chão B-TECH SYSTEM X BT8380 para montagem no chão, 240×240×6 mm, 200 kg, preto

The B-Tech SYSTEM X Bolt-Down Floor Base for BT8380 is a compact steel plate designed to secure System X vertical columns to the floor. It attaches directly to BT8380 columns to create a fixed-position mounting point with a small footprint, intended for locations where floor space is limited.

Advantages

Made from a 6 mm thick steel plate, the base provides a stable, durable mounting surface capable of supporting loads up to 200 kg per column. Its bolt-down design ensures a secure connection to the floor and to the BT8380 vertical column while keeping the overall footprint minimal. The black finish integrates with typical retail and public-facing environments.

Suitable for

• Retail displays and shop window installations
• Fixed AV mounts in public or commercial spaces
• Locations requiring screens or columns close to walls where floor space is constrained

Key specifications

• Material: 6 mm steel plate
• Maximum load capacity: 200 kg per column
• Colour: Black
• Width: 240 mm
• Depth: 240 mm
• Height (plate thickness): 6 mm
• Quantity per pack: 1

How to use

Position the base on the desired floor location, align and attach it to the BT8380 vertical column, and secure the base to the floor with appropriate bolts or anchors for the floor type. Ensure the column is plumb and all fasteners are tightened to the manufacturer’s recommended torque before mounting any equipment.

Recommendations

Use suitable floor anchors for the substrate (concrete, timber, etc.) and follow local building regulations. Confirm combined load ratings when installing additional equipment on the column and inspect fixings periodically.
